Electronic Speech Systems (ESS)



Electronic Speech Systems (ESS) started in 1989, and are most famous for their AudioDrive chips, used in many sound cards. Most AudioDrive chips are Sound Blaster Pro-compatible. All cards post-ES688 got the very good sounding integrated FM synthesizer circuits called "ESFM". These were OPL3-compatible but developed in-house, with has 20 voices, 72 operators, and operated in two modes: Native and Legacy. In Native mode, ESFM allows more than six 4-operator FM voices to be mapped, potentially allowing for a significant increase in the complexity of tones generated. The drivers for Windows 9x incorporate their own custom instrument patches which make use of this extended mode. Conversely, Legacy mode provides full backward-compatibility with Yamaha's YMF262. ESFM's output in this mode is moderately faithful to the YMF262 overall, but some tones are rendered quite differently, resulting in unique distortions in the sound and music of some games. Many DOS gamers prefer the softer sound of the ESFM over Yamaha's original OPL3 output.

Lots of games had specific support for ESS sound cards.

All cards with ESS chips prior to the ES1688 require the loading of a TSR called ENMPU.EXE to enable the MPU-401 interface.

In 1995, ESS launched the first all-in-one 16-bit audio chipset, ES1688. This same year they announced the ES1868 audio chipset, ES968 interface chip, and followed soon after with the ES938 Audio Effects Processor. They also released two wavetable chips, ES689 and ES690F. The company had seen dramatic growth, with $3.7 million in the first quarter of 1994 to $21.4 million in 2Q 1995, and jumping to $31.4 million in 3Q 1995.

In January 1996, ESS announced their acquisition of VideoCore Technology, Inc. for 525,000 shares of common stock and $6.0 million in cash. VideoCore were an advanced compression technology IC manufacturer for digital video products. One month later, they acquired OSEE Technologies, Inc., a developer of fax/modem technology.

This same year, Yamaha filed a patent infringement lawsuit surrounding ESS' ESFM technology. Yamaha had sued ESS Technology, Inc. for infringing two patents which Yamaha claimed covered aspects of FM synthesis technology. Yamaha requested the U.S. District Court to prohibit ESS Technology, Inc.'s sales of products using this technology, but the District Court refused, ruling that Yamaha's chances of prevailing at trial were " ... at best weak.". They settled in May 1996, though the details of the settlement were kept sealed.

In October 1996, ESS introduced three new members of their AudioDrive range: ES1869, ES1887 and ES1879.

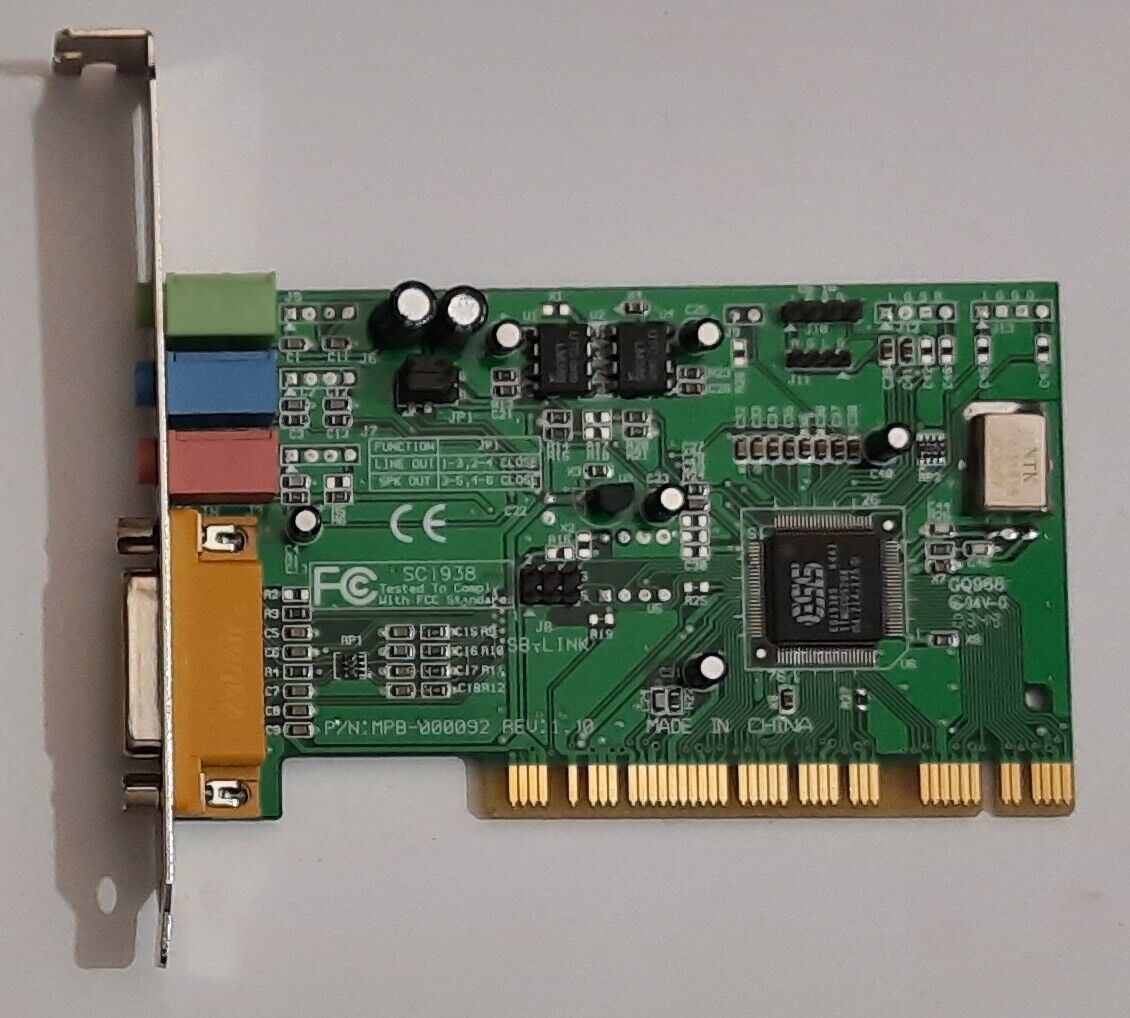

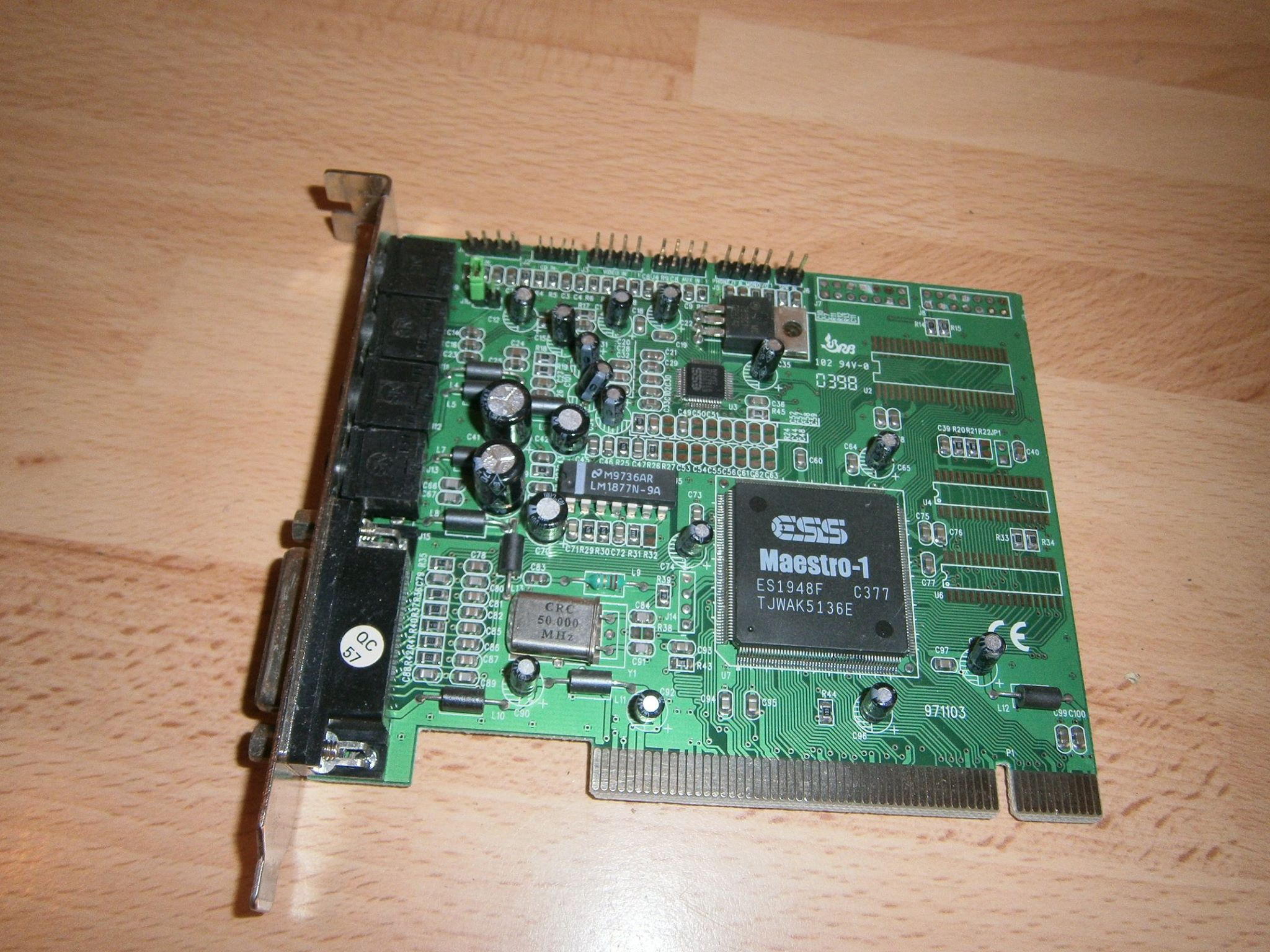

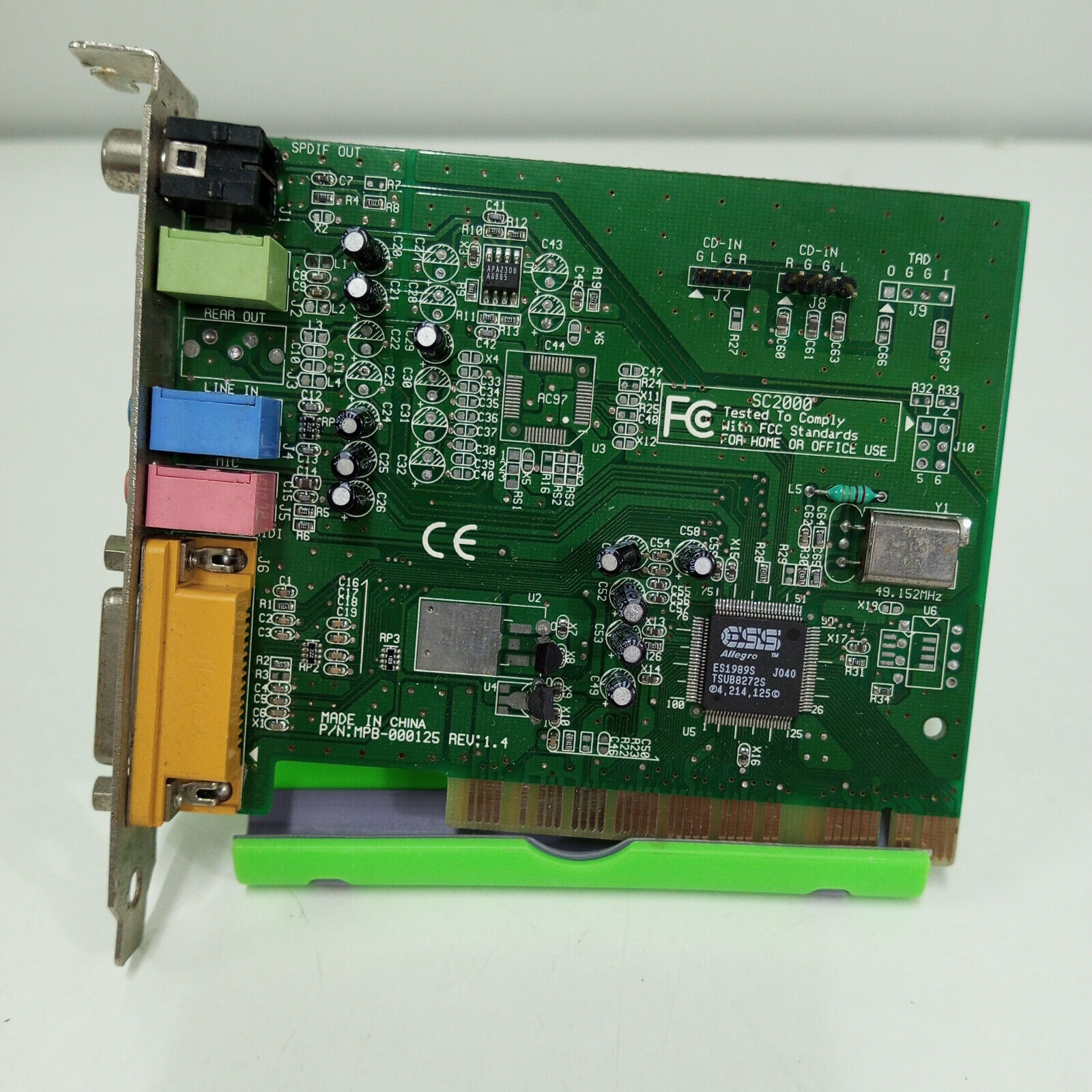

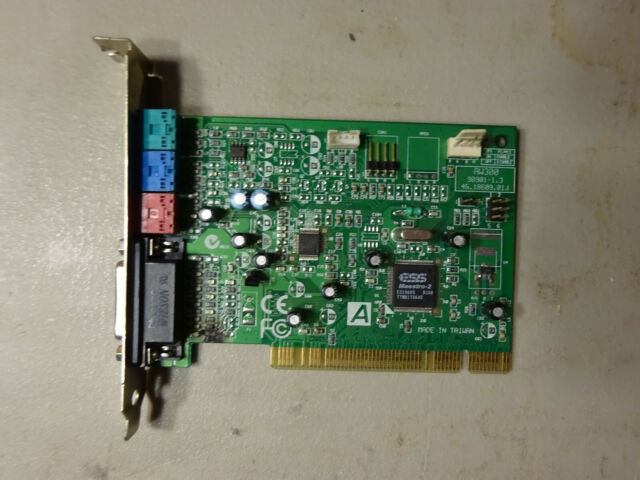

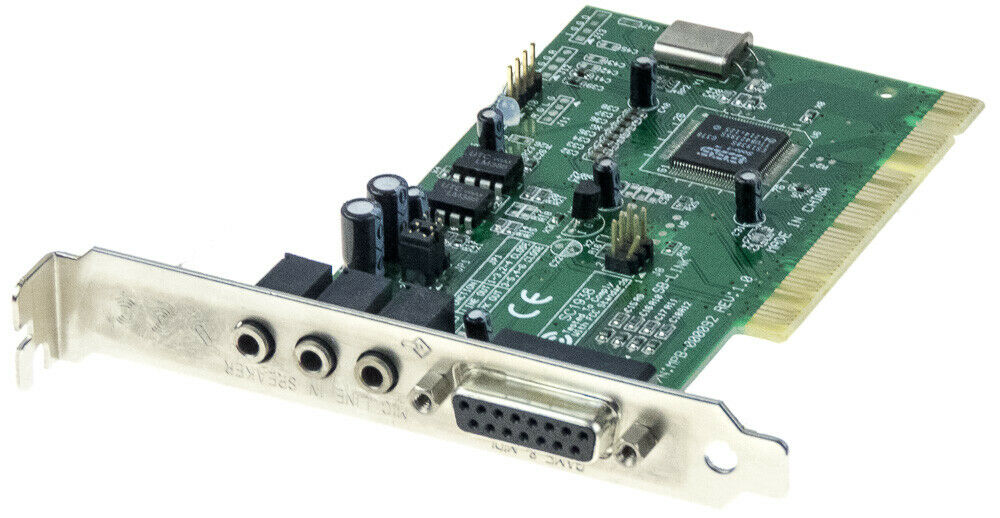

1997 saw the introduction of ESS' PCI AudioDrive range. Some PCI-interface AudioDrives, namely the ES1938 Solo-1 and ES1946 Solo-1E, also provided legacy DOS compatibility through Distributed DMA, the SB-Link interface, and ESS' own Transparent DMA (TDMA). This was a necessary requirement for cards to achieve PC98 compliance. TDMA creates a virtual ISA bus and forms a bridge between it and the PCI bus.

Numerous games have explicit support for "ESS AudioDrive", sometimes referred to as "ESS Enhanced". Note that this usually refers to models ESS688 and ESS1688 only.

Here are some tools and drivers for ESS chips that are not necessarily model-specific:

The DOS utility ESSCFG.EXE is used to initialise the card and then it exits (it doesn't remain in memory which is good). ESSVOL.EXE can be used to set the volume levels including those for MIDI and CD Audio.

ESS Chipsets at a glance:

Description ES488 ES688 ES1488 ES1688 ES1698 ES1788 ES1888 ES1887 ES1868 ES1869 ES1878
ES978
ESFM™     X X X X X X X X X
Mixing Channels
(Playback / Record)		 0 5/5 5/5 6/5 6/5? 6/5 7/6 7/7 6/6 6/6 7/5
Wavetable Serial Port   X   X X X X X X X X
Full / Half Duplex Half Half Half Half Half Half Full Full Full Full Full
Hardware Mixing Accelerator             X X X X X
Advanced Power Management X X X X X X X X X X X
Hardware Volume Control         X X X X X X X
Plug and Play Support       M/B M/B M/B M/B   ISA ISA N/B
Joystick Timers external external external external external 2 2 2 2 2 2
3D Stereo Sound Effect Integrated         X?         X
I2S Interface for Zoom Video Port                   X X
Hot-dock Interface to Expansion Mixer                     X



ES488 AudioDrive

Introduced: 1993
Bus: ISA

The ES488 was a 12-bit mono digital audio chip and was Sound Blaster compatible (mono only). It creates all of the speech and sound of a Sound Blaster board, except music synthesis.

The ES488 integrates digital logic and a microcontroller with audio CODEC and other analog functions onto one chip and, when coupled with the Yamaha OPL2 FM synthesizer chip, provides a low cost chip solution for multimedia PC audio. The ES488 is PC games compatible in Sound Blaster ("SB") mode with the Yamaha OPL2 and is compatible with Microsoft Windows and other operating systems. The ES488 provides power management capability and is packaged in a small form factor 52 pin plastic quad flatpack ("PQFP") package.

Found on the following cards:

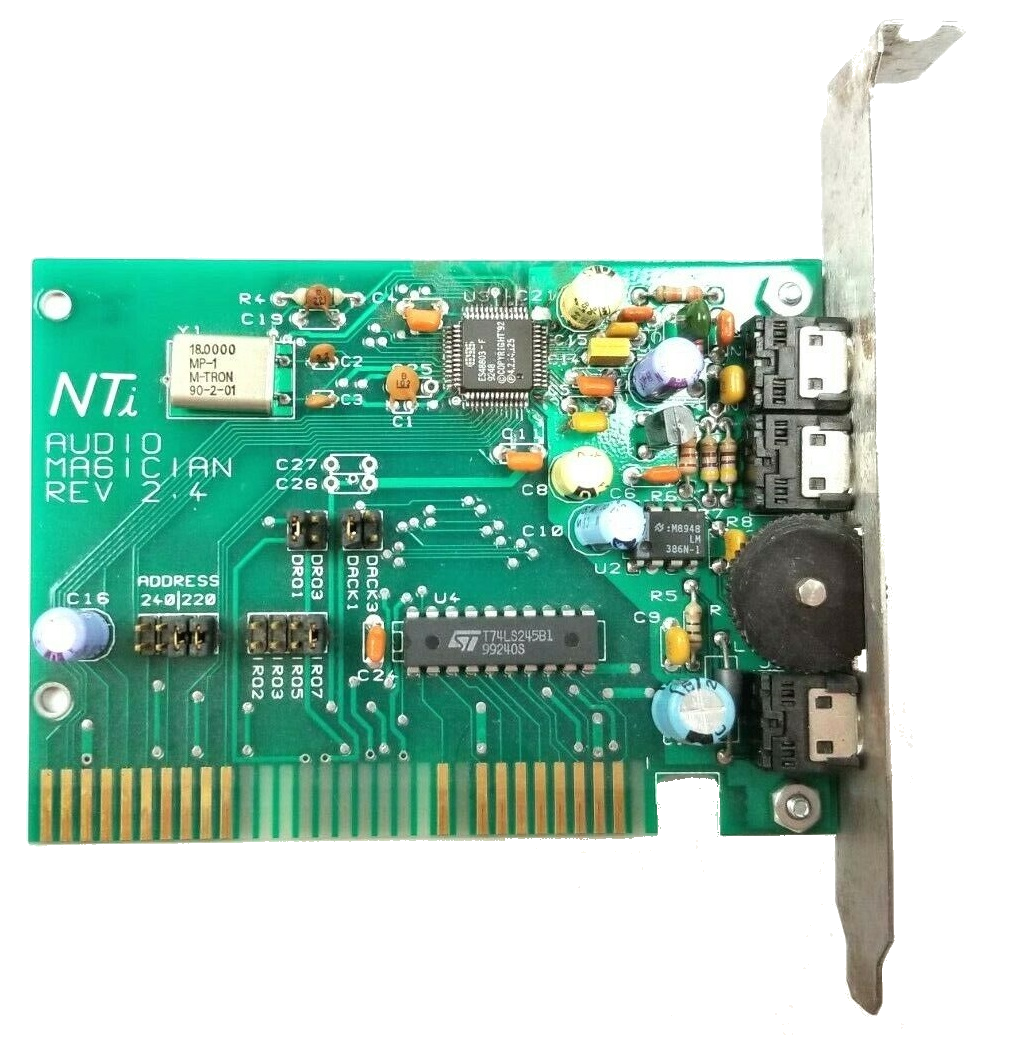

  • NTi Audio Magician (see image right)
  • Some Orchid Fahrenheit VA/VLB cards (others have an OKI M6388) - ES488 used as an ancillary chip for audio processing.

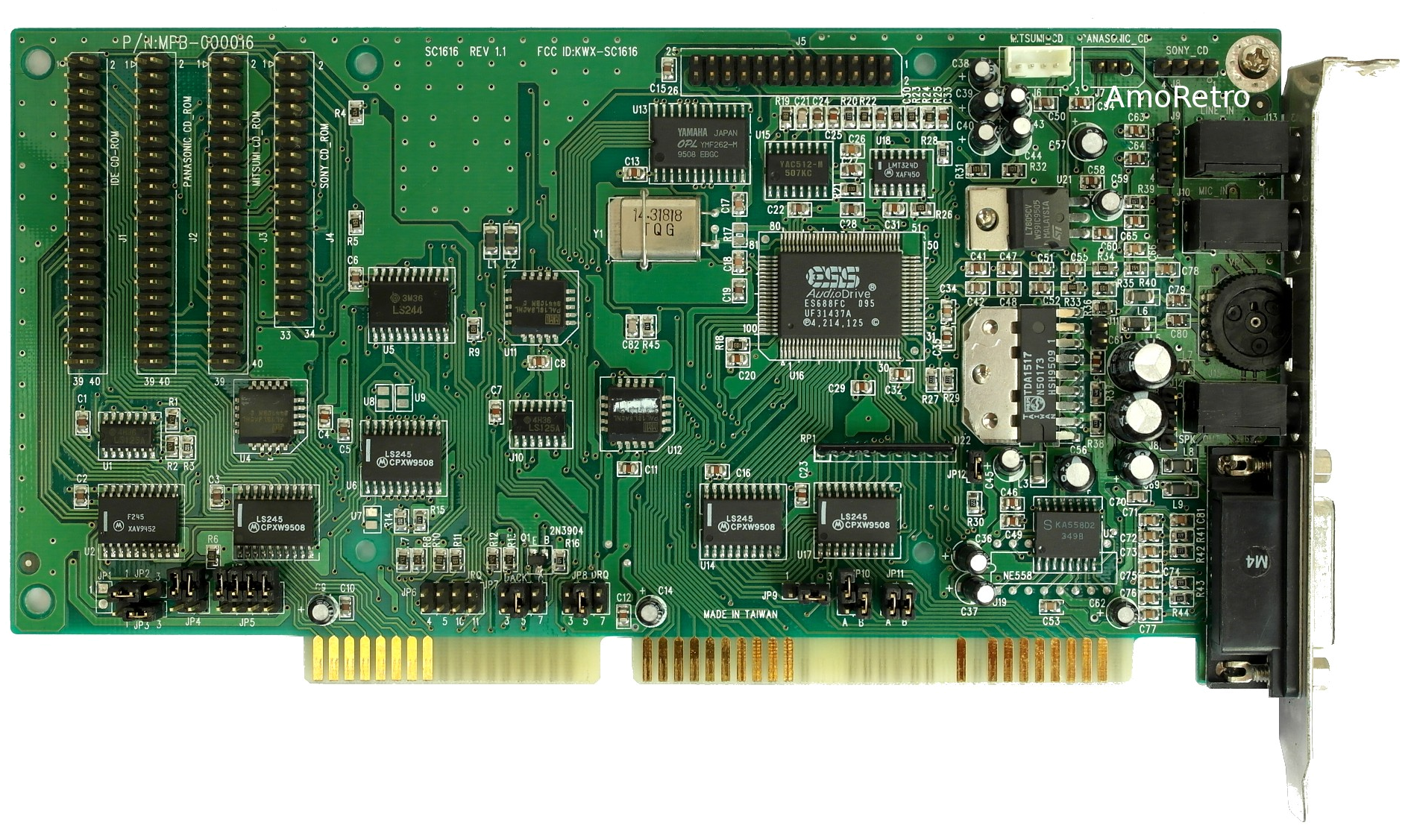

ES688 AudioDrive

Introduced: 1994
FM synthesizer: YMF262-M (OPL3) (no ESFM)
Chipset: ES688FC
Plug & Play: No
DAC: Yamaha YAC512
CD-ROM Connectors: IDE, Panasonic, Mitsumi and Sony

Compatibility: Ad Lib, Sound Blaster, Sound Blaster Pro, Windows Sound System, Windows 95 DirectSound, MPC, and MPCII.

In 1994, ESS' AudioDrive range comprised the ES488, ES1488 and the top-of-the-range ES688.

The ES688 integrates digital logic and a microcontroller with audio CODEC and other analog functions onto one chip and, when coupled with the Yamaha OPL3 FM synthesizer chip, provides a low cost solution for high performance multimedia PC audio. The ES688 is PC games compatible in SB Pro mode with the Yamaha OPL3 and is compatible with Microsoft Windows and other operating systems. The ES688 provides power management capability and is packaged in a 100 pin PQFP package.

The MPU-401 (UART) interface is emulated in software, so a driver must be loaded to use a Wavetable daughterboard on these cards (ESSCFG.COM). There is also a TSR from ESS called ENMPU.EXE which is apparently required to enable the MPU-401 interface. Having said that, there are some later cards that came with the ES968 interface chip as well, which provide hardware MPU-401 capability (so no driver is needed).

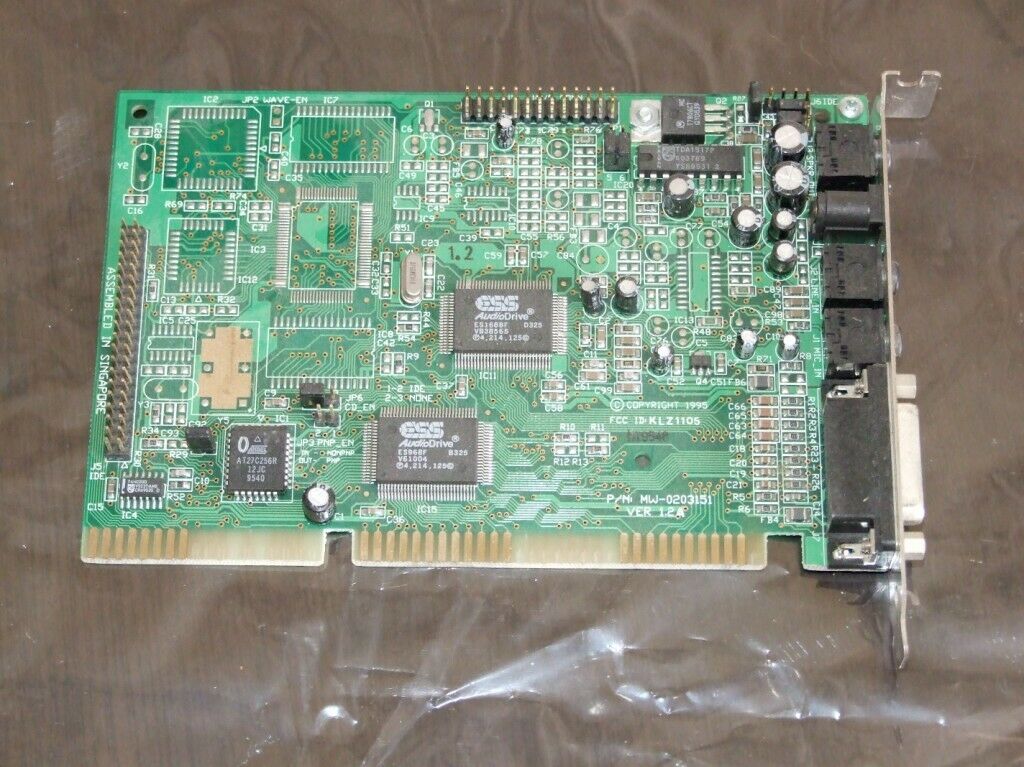

The ES688FC was a single, mixed signal VLSI chip found in various cards and was also embedded on motherboards. It offered 16-bit 44.1KHz stereo recording and playback (half-duplex), a 5-channel mixer and ESPCM(R) compression (as well as ADPCM). The software volume control has 64 steps.

The onboard power amplifier provides 2W per channel.

This card provides good sound in Windows, but the DOS drivers only allow for Sound Blaster Pro compatibility (8-bit stereo) and it has a lower sound quality than a real Sound Blaster Pro or the Pro Audio Spectrum.

In September 1994, ESS announced Compaq would use the ES688 in their new Presario models. In November of the same year, they announced Hewlett-Packard had also chosen the ES688 for their new HP OmniBook 4000 notebook PC.

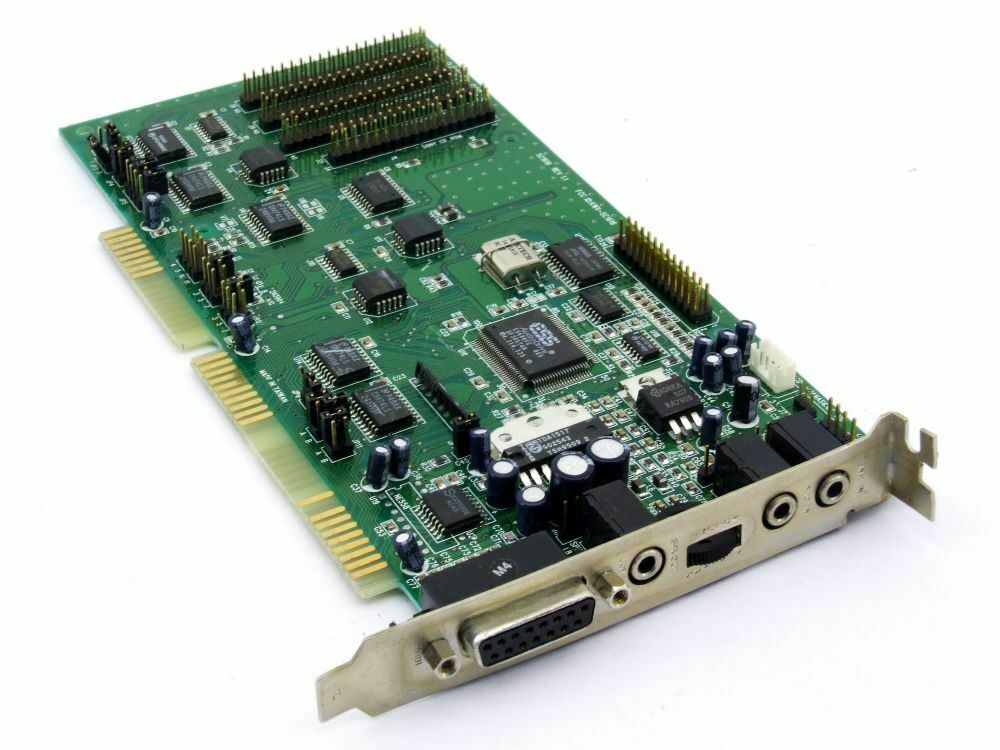

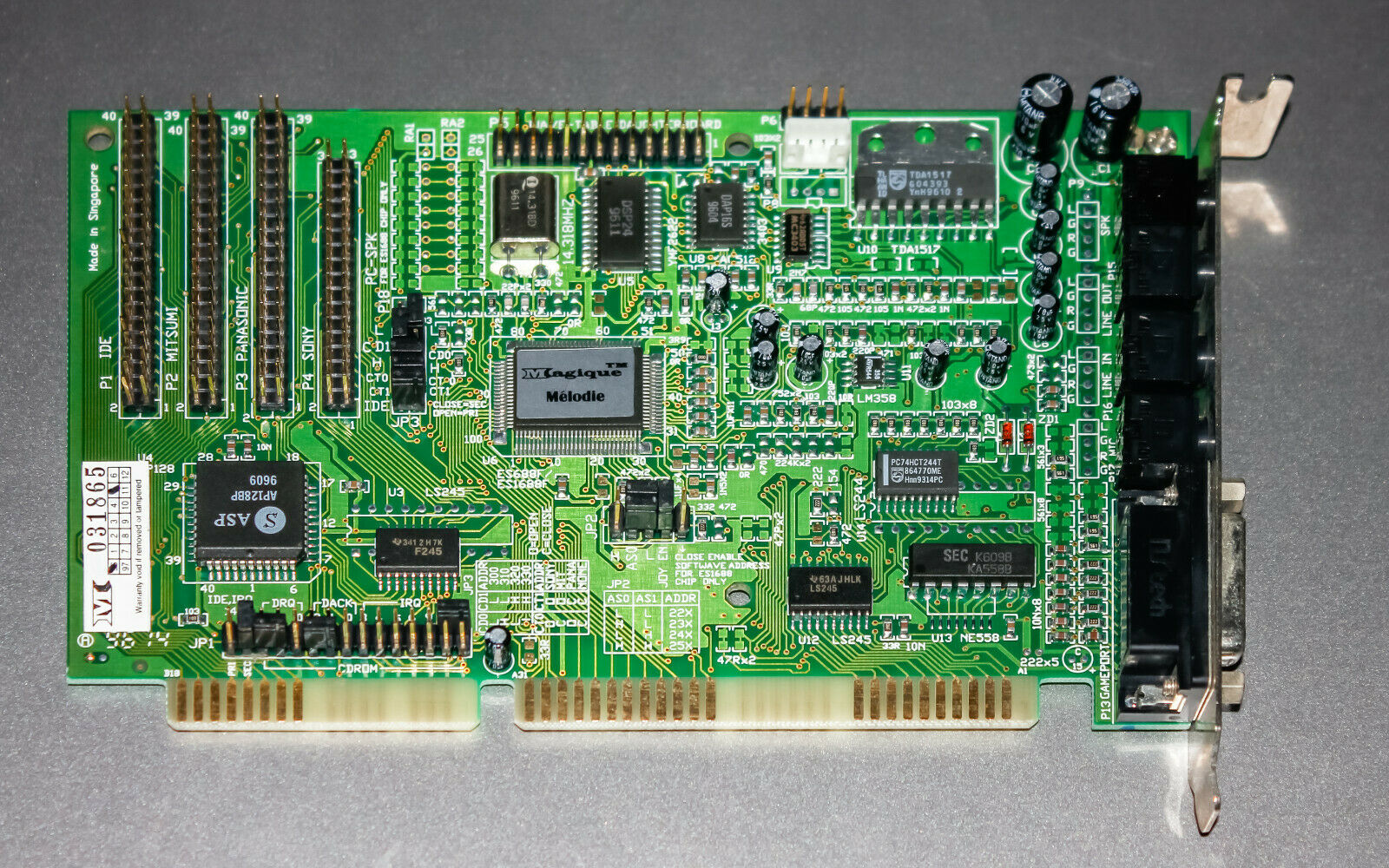

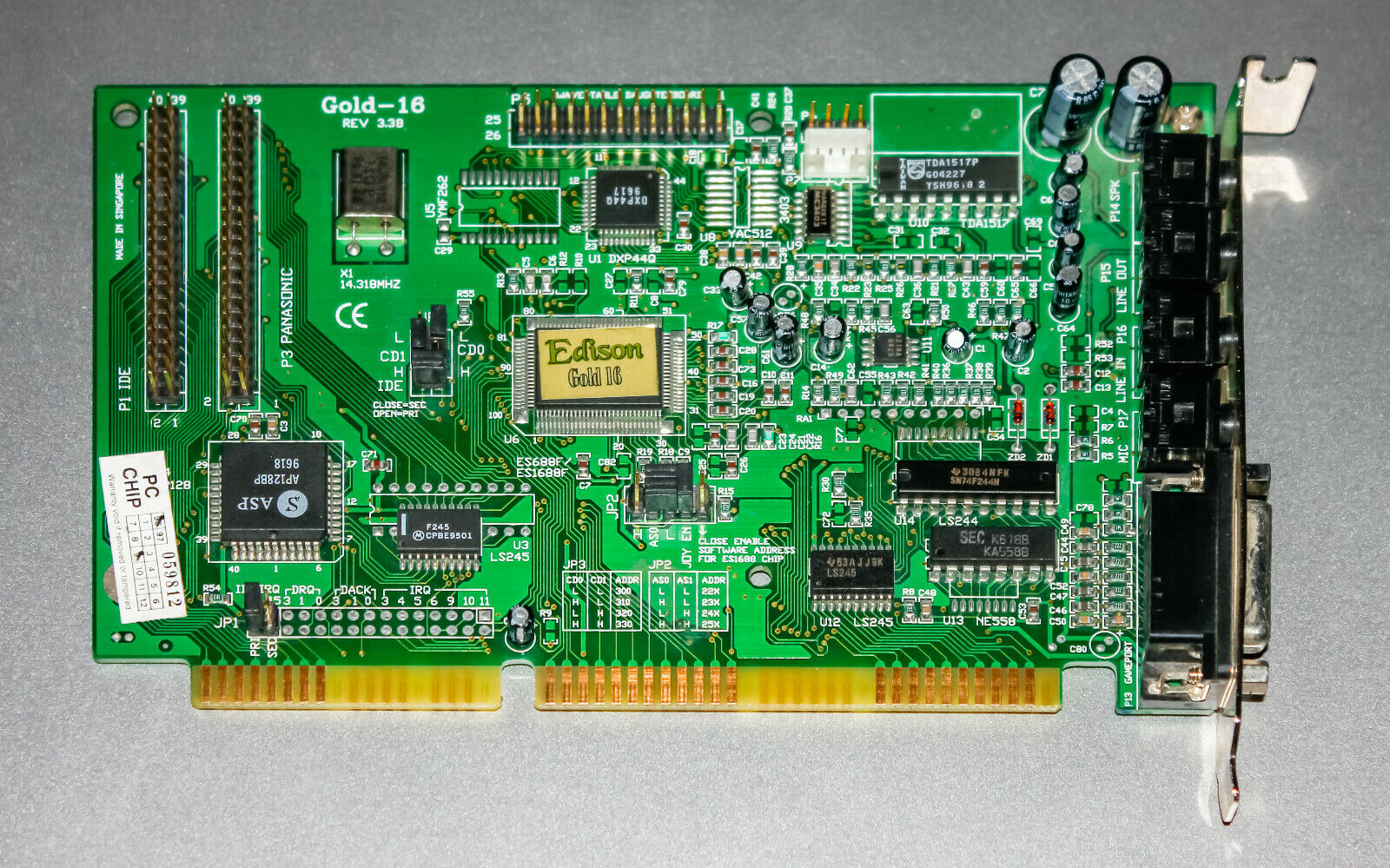

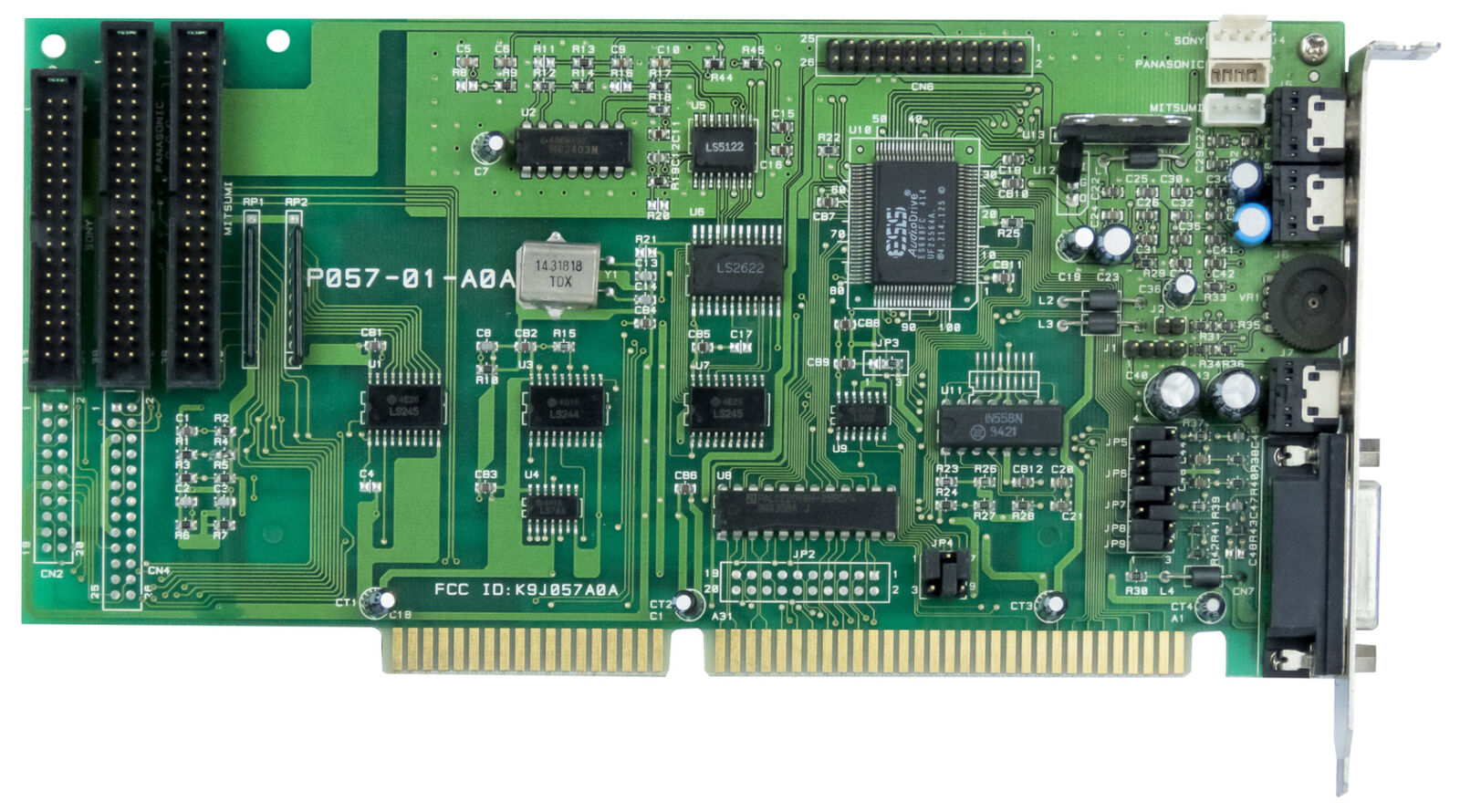

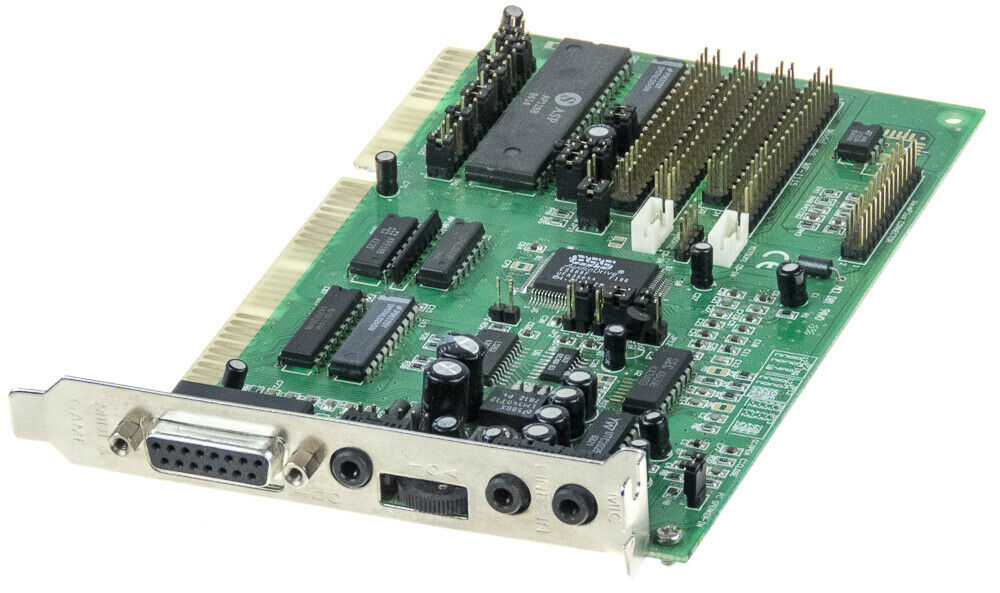

ESS licenced its ES688FC chipset to numerous OEMs who produced their own cards, including:

Windows 3.1 driver disks 1 2, Windows 98SE
DOS Full Install - includes SETUP that works in pure DOS, as well as SETVOL and ESSCFG. works across all ESS chipsets.



ES938

Introduced: November 1995
Interface: 16-bit ISA
Chipset: ES938

The ES938 was ESS' first 3D audio effects chip based around the Spatializer® technology from Spatializer Audio Laboratories. The ES938 typically sat alongside an ES1688, ES1788, ES1868 or ES1888 audio chip.

"ESS TECHNOLOGY, INC. INTRODUCES 3D AUDIO EFFECTS CHIP
Fremont, CA (November 13, 1995) --ESS Technology, Inc. (NASDAQ: ESST) today introduced the ES938, a 3D audio effects chip which processes audio signals to provide interactive 3D audio from existing stereo game and multimedia software using only two conventional speakers. The ES938 utilizes Spatializer® technology, licensed from Spatializer Audio Laboratories (NASDAQ: SPAZ), to produce stereo sound effects in a three-dimensional sound field in coordination with on-screen action.

"ESS Technology, Inc. continues our product leadership in CD-quality stereo audio processing with the ES938 Spatializer processor," stated Fred Chan, President of ESS Technology, Inc.. "The ES938 is a cost-effective way to generate 3D audio effects and bass and treble controls, enhancing the listener's experience for multimedia PCs and consumer electronics."

"Spatializer processing provides extraordinary three-dimensional stereo imaging from only two speakers, while fully maintaining the integrity of the original source material," said Steven Gershick, president and CEO of Spatializer Audio Laboratories, Inc. "When incorporated into consumer electronics products and multimedia computers, the ES938 with Spatializer 3-D Stereo technology provides a truly effective and realistic surround sound listening experience."

The ES938 accepts sound input from conventional stereo and monophonic sources and automatically adapts a three-dimensional sound field effect to expand the sound beyond the speakers with enhanced sound imaging. The ES938 utilizes the left and right "panning" information already present in the latest computer games, creating real-time audio events which interactively change position in response to changes in the game player's viewpoint. Variable space control allows spatial adjustments to suit each user's taste.

"The ES938 is a fully-configurable sound effects IC," stated Bill Windsor, Strategic Marketing Manager at ESS Technology, Inc.. "In addition to the 3D Spatializer processing, the ES938 provides separate bass and treble controls provide additional range to the sound. Each one of the special sound effects can be independently switched on or off. In addition, the MPU-401 MIDI serial control interface enables digital control of the effects. The ES938 connects directly through its MPU-401 MIDI serial control interface to several of ESS Technology, Inc.'s AudioDrive® family of audio chips, including the ES1688, ES1788, ES1868, and ES1888."

The ES938 is sampling now. The ES938 is packaged in a 28-pin SSOP package, enabling a small footprint in PC board designs. Evaluation Boards and Reference Designs are available now, including the ES1688/ES689/ES98X/ES938 Evaluation Board and a sound applications software library. Pricing is available by contacting ESS Technology, Inc. directly. "     ESS website, 13th November 1995



ES968 / ES968F

Introduced: March 1995
Interface: 16-bit ISA

Not an audio chipset in its own right, the ES968 is just an interface chip that provides cards like those based on the ES1688 with hardware MPU-401 capabilities, CD-ROM interfaces and joystick ports.

Earlier ESS audio chips like the ES488 and ES688 emulated things like the MPU-401 interface in software, and so required a TSR to be loaded for that interface to work. The ES968 provides this in hardware.



" ESS TECHNOLOGY, INC. INTRODUCES MULTIMEDIA INTERFACE CHIP
Fremont, CA (March 20, 1995) -- ESS Technology, Inc. today introduced the ES968, a Multimedia Interface Chip which enables multiple devices to connect and communicate within a Multimedia PC.

"The ES968 provides connectivity for several devices important to a multimedia PC system," stated Bill Windsor, ESS Technology, Inc. Strategic Marketing Manager. "Multimedia PCs commonly need interfaces to CD-ROM, MIDI music synthesizer, computer games controls such as joysticks, and to configure add-in cards within Microsoft's Plug and Play standard. The ES968 provides all this."

The ES968 contains dual game ports to connect two joysticks to a multimedia PC, enabling two people to play interactive games simultaneously. The chip's MPU-401 serial port interface connects directly to a MIDI music synthesizer. The CD-ROM interface connects to IDE CD-ROMs and also to several CD-ROMs with proprietary interfaces. The ES968 supports the full add-in card Plug and Play standard.

The ES968 connects directly to several of ESS Technology, Inc.'s AudioDrive® family of audio chips, including the ES688, ES1688, and ES1888. ESS Technology, Inc.'s AudioDrive® supports PC stereo audio under Microsoft® Windows™, Windows 95™, Windows for Workgroups™, Windows NT™, and Windows Sound System™ 2.0, in addition to IBM® OS/2 Warp™ operating systems.

The ES968 comes in a 100-pin PQFP and is sampling now. List pricing for the ES968 at OEM quantities is $4.50."
ESS website, 20th March 1995



ES1488 AudioDrive

Introduced: 1993?
Chipset: ES1488
Interface: 16-bit ISA

The ES1488 was part of ESS' AudioDrive range which comprised ES488, ES1488 and ES688.

Most crucially, the ES1488 was ESS' first card to include their excellent OPL-3-compatible FM implementation, called ESFM™.

The ES1488 integrates digital logic and a microcontroller with audio CODEC and other analog functions onto one chip, and includes ESFM™ synthesis. The ES1488 is PC games compatible in SB mode and is compatible with Microsoft Windows and other operating systems. The ES1488 is socket compatible with the ES488 and provides a single chip alternative for the combined solution offered by the ES488 and the Yamaha OPL2 FM synthesis chip.

It was a 16-bit mono chip with a built-in music synthesizer, and was socket-compatible to the ES488.

In March 1995, ESS announced that Digital Equipment Corporation had chosen the ES1488 AudioDrive chip for their new notebook PC, the HiNote Ultra.

"In the Digital HiNote Ultra, we wanted a notebook design with a sleek and light form and with 'no-sacrifice' performance features," said Mark Foster, Director of Engineering for Mobile Products in Digital's PC Business Unit. "The 1-inch vertical height of the Digital HiNote Ultra mandated a feature-packed design with high integration. ESS Technology, Inc.'s ES1488 AudioDrive provided a high-quality music synthesis solution in a single chip, and the ES1488's compatibility with audio standards and games software standards enables 16-bit multimedia applications on our platform."

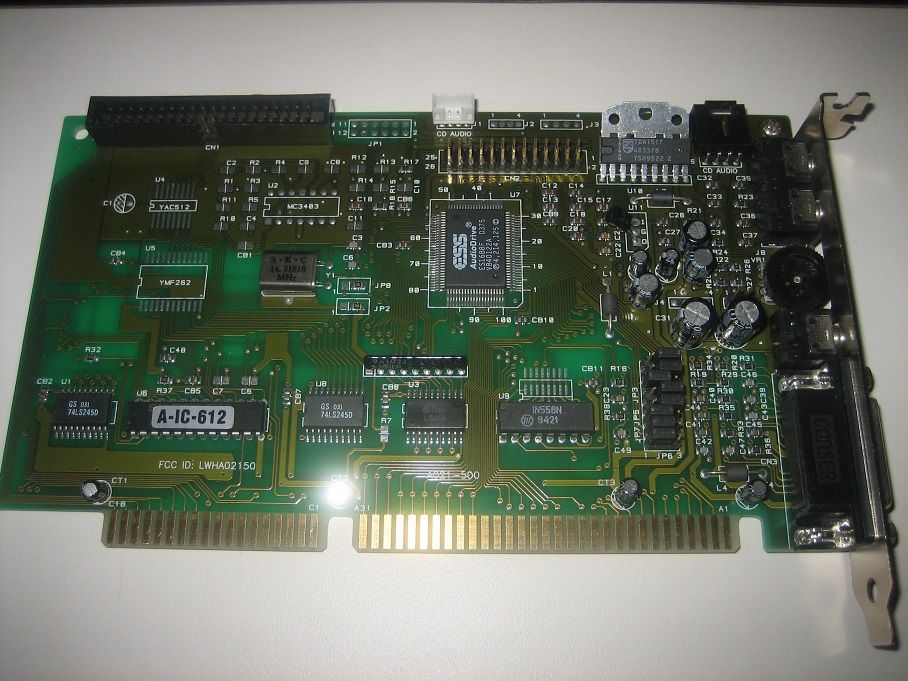

ES1688 AudioDrive

Introduced: March 1995
Chipset: ES1688F and ES968F interface chip
Interface: 16-bit ISA
Half Duplex 16-bit Stereo 44.1kHz
Non-Plug & Play.
Hardware MPU-401 UART interface
Wavetable header (use SCB-55/DB50XG or any external General MIDI device)
Integrated OPL3 clone
FCC ID: LWHA02150

A minor upgrade from the ES688, the ES1688 got a 6-channel mixer (over the ESS688's 5 channels) and a true hardware MPU-401 UART MIDI interface. The card also supported Advanced Power Management (APM) so it had self-timed power down, auto wake up, and suspend/resume support.

Excellent Sound Blaster Pro compatibility, good ESFM (OPL3) quality. Runs at 44.1 kHz only when in AudioDrive mode (non-SB Pro compatibility mode).

Wavetable header does not suffer from any bugs like SB card hanging notes bug.

"ESS TECHNOLOGY, INC. INTRODUCES "ALL-IN-ONE" 16-BIT STEREO MULTIMEDIA AUDIO CHIP, WITH ESFM™ MUSIC SYNTHESIS
Fremont, CA (March 20, 1995) -- ESS Technology, Inc. introduced today the first "all-in-one" 16-bit stereo audio chip, the ES1688, the first complete audio solution integrating music synthesis on a single chip. The ES1688 supports PC audio and games in Sound Blaster™ and Sound Blaster™ Pro modes, with additional enhancements from ESS Technology, Inc.-developed ESFM music synthesis. Using the ES1688, system designers can eliminate costly sound cards and place the entire stereo audio circuitry in an area smaller than 1.5" x 2.0", freeing up one ISA slot within Multimedia PCs or adding audio capability to notebook PCs.

Fred Chan, President of ESS Technology, Inc., stated, "The ES1688 AudioDrive® product reflects ESS Technology, Inc.'s commitment to deliver PC OEMs and add-in card suppliers the total PC audio solution at superior price-performance. OEMs now have a single-chip solution for high-quality 16-bit stereo CD-quality audio, with additional richness from ESS Technology, Inc.'s ESFM technology."

The ES1688 provides all required circuitry for adding 16-bit stereo audio and 20-voice music synthesis to personal computers. The ES1688 provides 16-bit stereo record and playback at sample rates of up to 44.1 KHz with CD-quality sound. The ES1688 includes a 6-channel mixer with three 16-bit stereo inputs (typically LINE, CD-ROM, and TV), plus one mono input for microphone. 16-bit stereo output mixes two independent channels of ESFM music synthesis and game audio, with independently selectable sample rates.

External interfaces include three serial ports which interface to music composition and control devices, including an MPU-401 interface for MIDI (Musical Instrument Digital Interface) music synthesizers, a serial port to a DSP enabling DSP-software audio effects, and serial interface to an external wavetable music synthesizer. The ES1688 includes a broadside ISA bus interface, advanced power management modes for notebook PCs, and two software address selection modes for motherboard Plug and Play configuration.

"The ES1688 includes a significant new method of music synthesis, ESS Technology, Inc. ESFM music synthesis technology," stated Albert Mak, ESS Technology, Inc. Vice President of Marketing. "ESFM is backward-compatible to FM synthesis, and provides superior sound quality with 72-operator ESFM music synthesis, versus 36 for traditional FM synthesis. ESFM improves the depth and timbre of instrument sounds and enables chorusing of instruments and voices. PC users with the ES1688 will immediately notice the difference in the depth and richness of computer music." "The ESFM software driver running under Windows automatically produces the richer sound," explained Bill Windsor, ESS Technology, Inc. Strategic Marketing Manager. "With PCs that use the ES1688 AudioDrive, the PC configures the Windows MIDI Mapper to send MIDI music files to the AudioDrive, which immediately invokes ESFM 72-operator audio synthesis. The result is an immediate improvement to the depth of instrument sound. DOS games can utilize ESFMquality when they enable ESFM music synthesis mode." ESS Technology, Inc. has worked with ISVs (Independent Software Vendors) in developing AudioDrive as a superset standard to Sound Blaster and Sound Blaster Pro audio, enabling software developers to take advantage of 16-bit stereo for new applications, but maintaining backward compatibility with pre-existing audio standards.

The ES1688 chip comes with driver software that supports PC stereo audio under Microsoft® Windows™, Windows 95™, Windows for Workgroups™, Windows NT™, and Windows Sound System™ 2.0, in addition to IBM® OS/2 Warp™ operating systems.

The ES1688 comes in a 100-pin PQFP and is in production now. The ES1688 is an extension of ESS Technology, Inc.'s AudioDrive family of audio chips, which includes the ES488, ES1488, and ES688. The ES1688 is socket-compatible to the ES688. List pricing for the ES1688 at OEM quantities is $24.00. An ES1688 AudioDrive Evaluation Kit is available now, which includes an ES1688 evaluation board, sound library, application programs and documentation."
ESS website, 20th March 1995

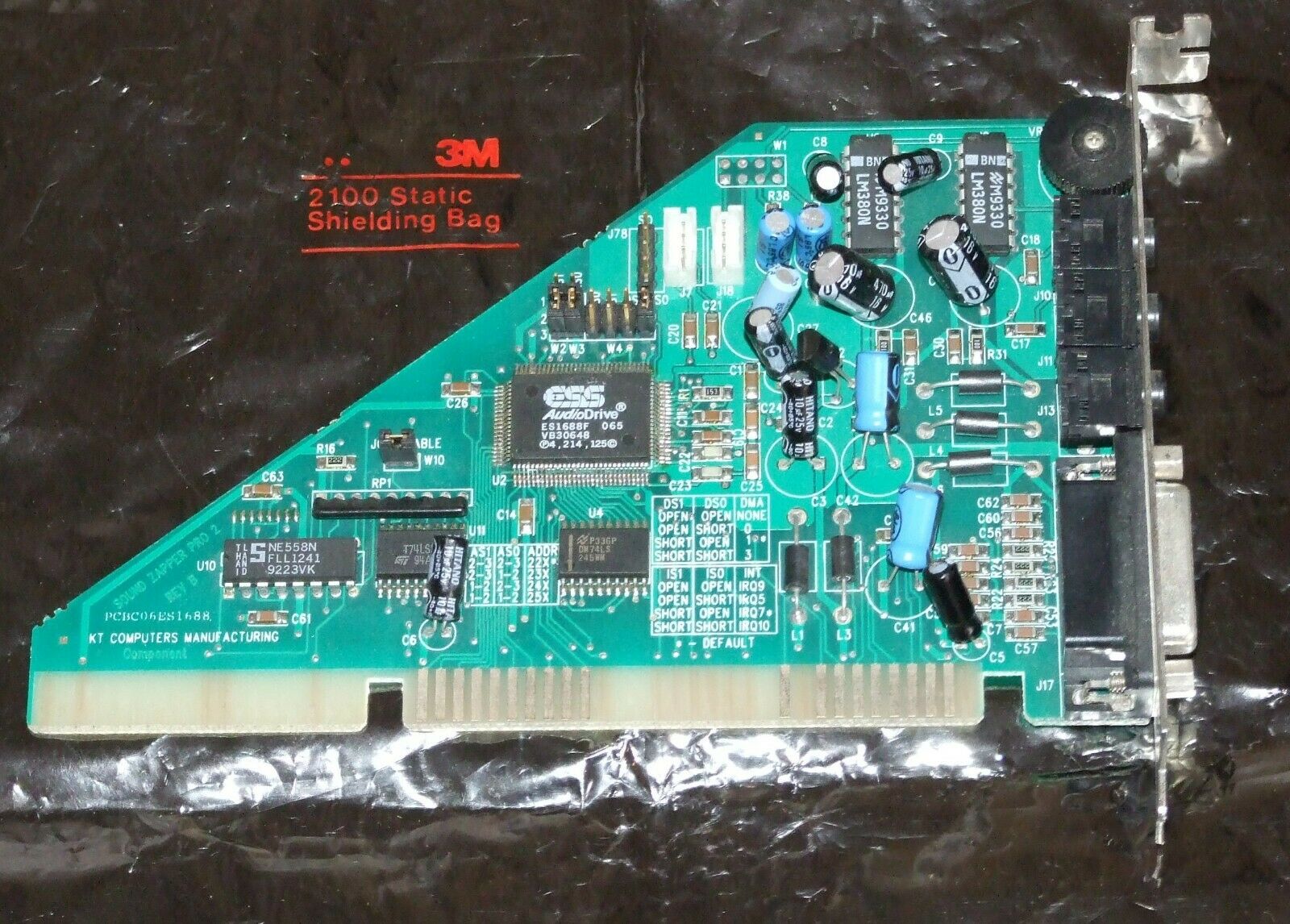

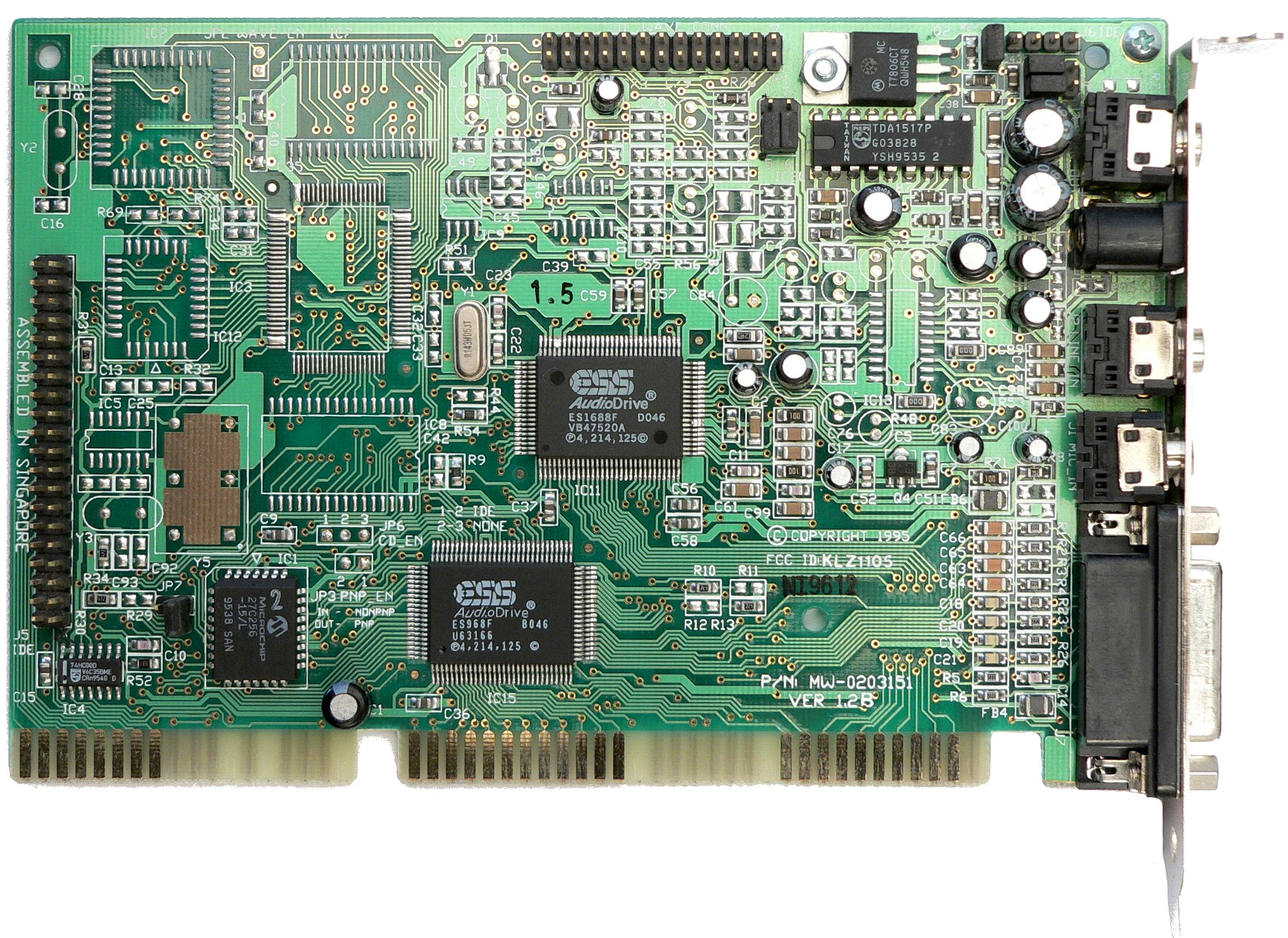

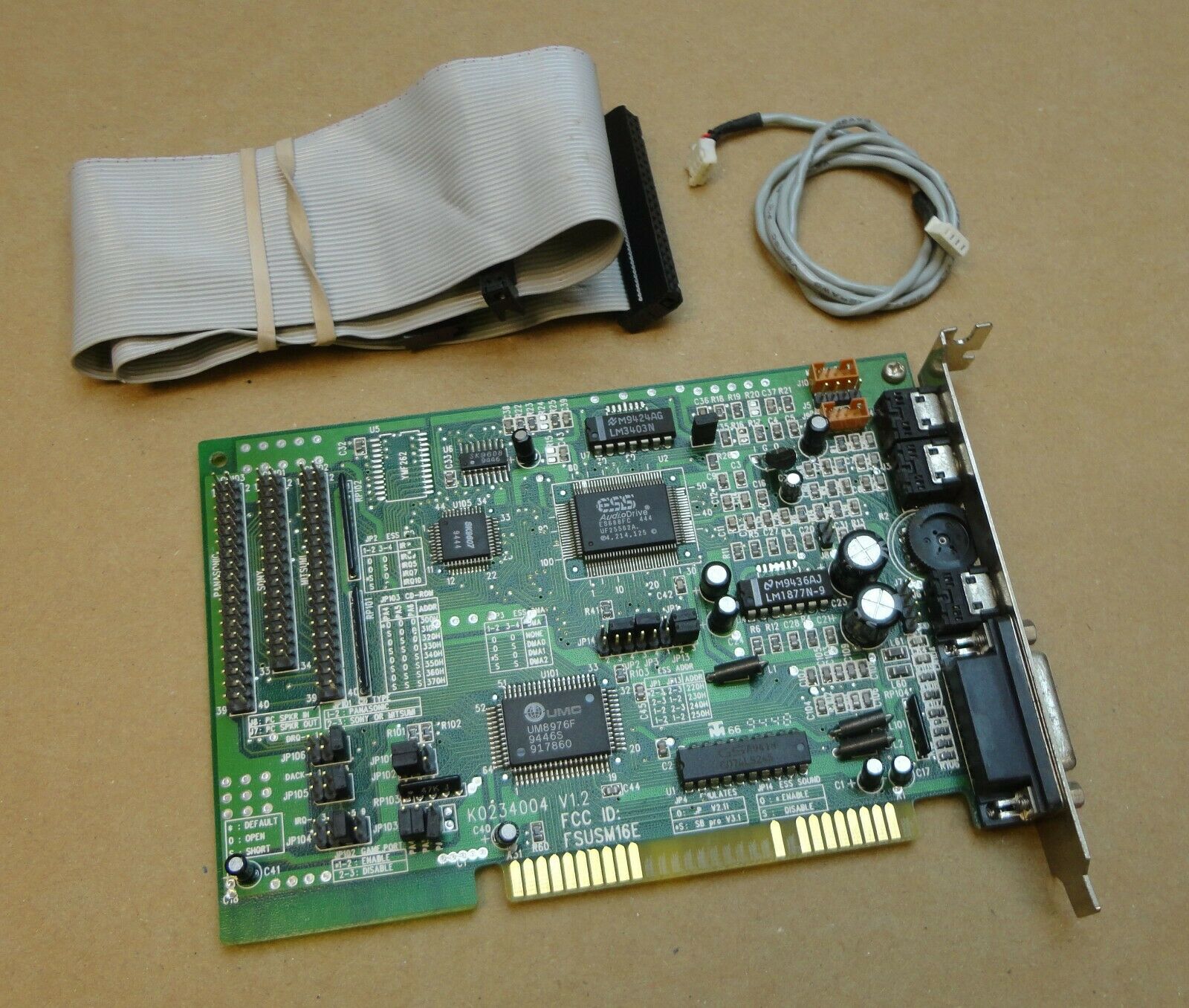

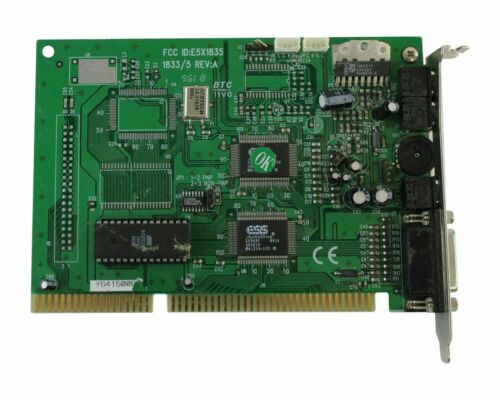

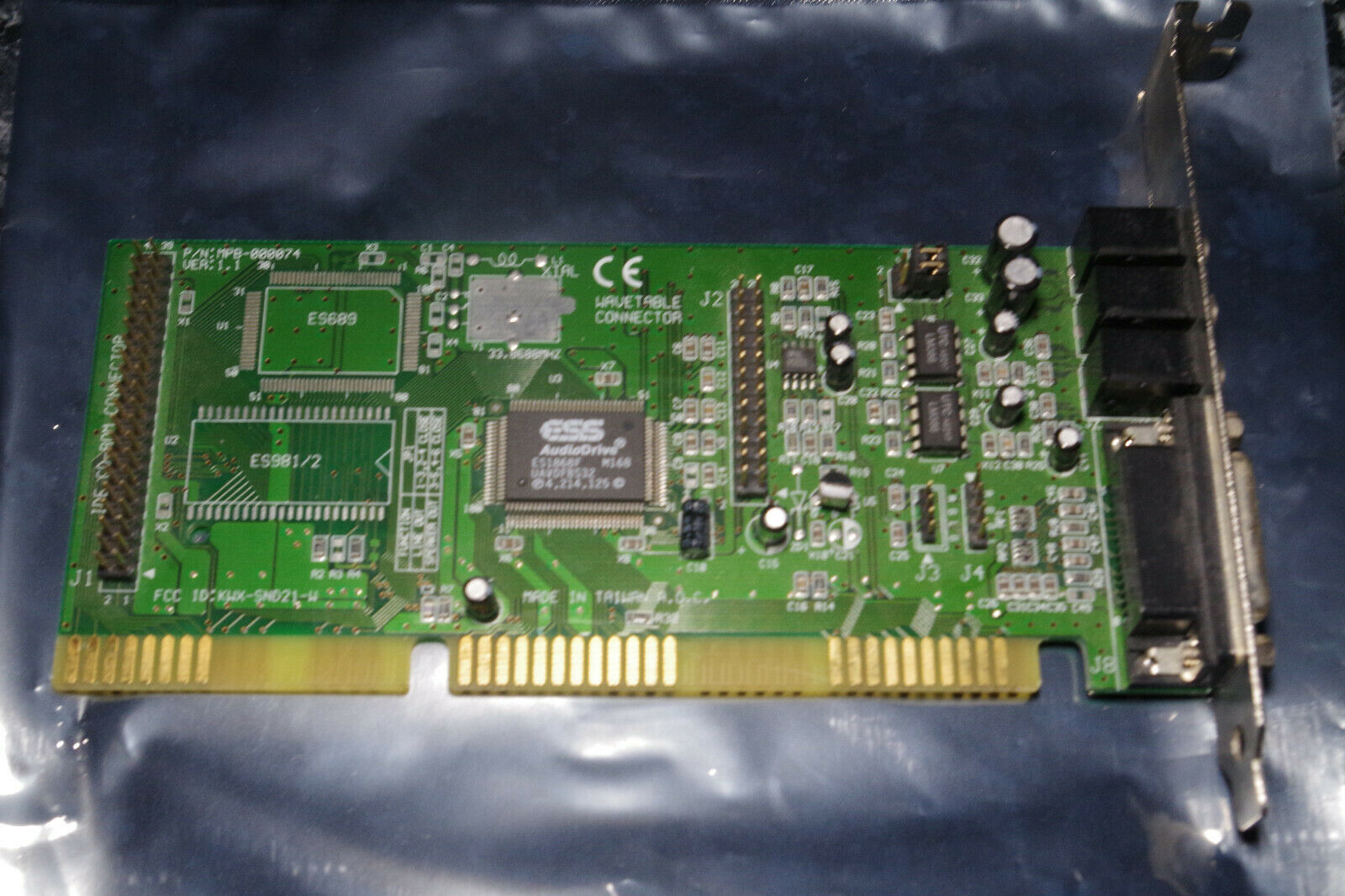

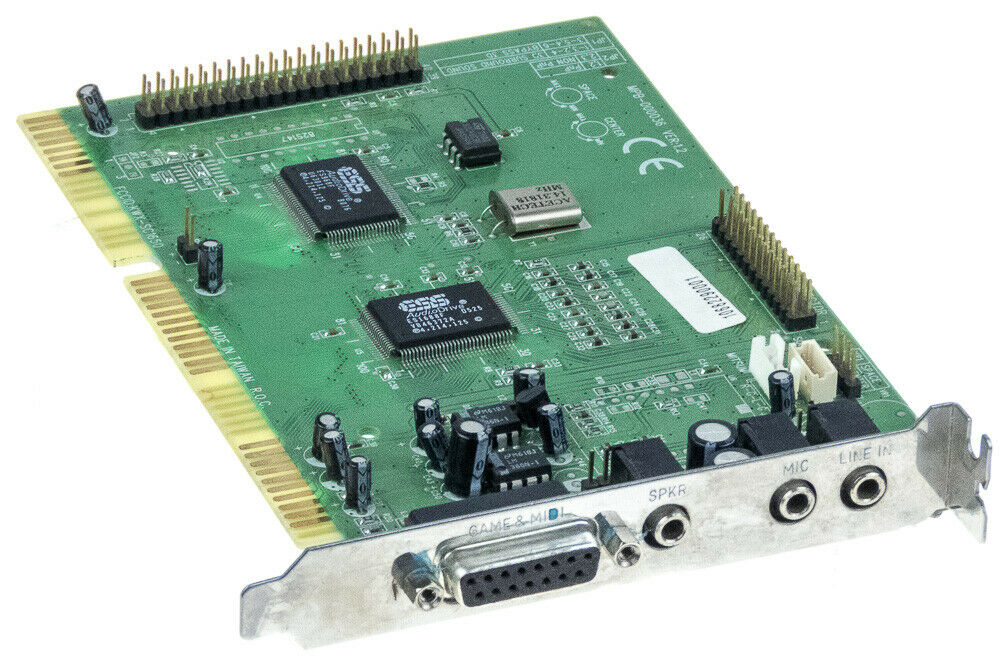

Here's a few more cards that use the ES1688F chip:

Windows Drivers: Sertek S521 Win31/9x, Other Win3.1 driver for 1688 and 1688F, Windows 95b (OSR2)
DOS Full Install - includes SETUP that works in pure DOS, as well as SETVOL and ESSCFG. works across all ESS chipsets.

ES1698 AudioDrive

Introduced: 1995?
Chipset: ES1698F
Interface: 16-bit ISA
Half Duplex ?
Hardware MPU-401 UART interface
Wavetable header: Yes
Integrated OPL3 clone
FCC ID: ?

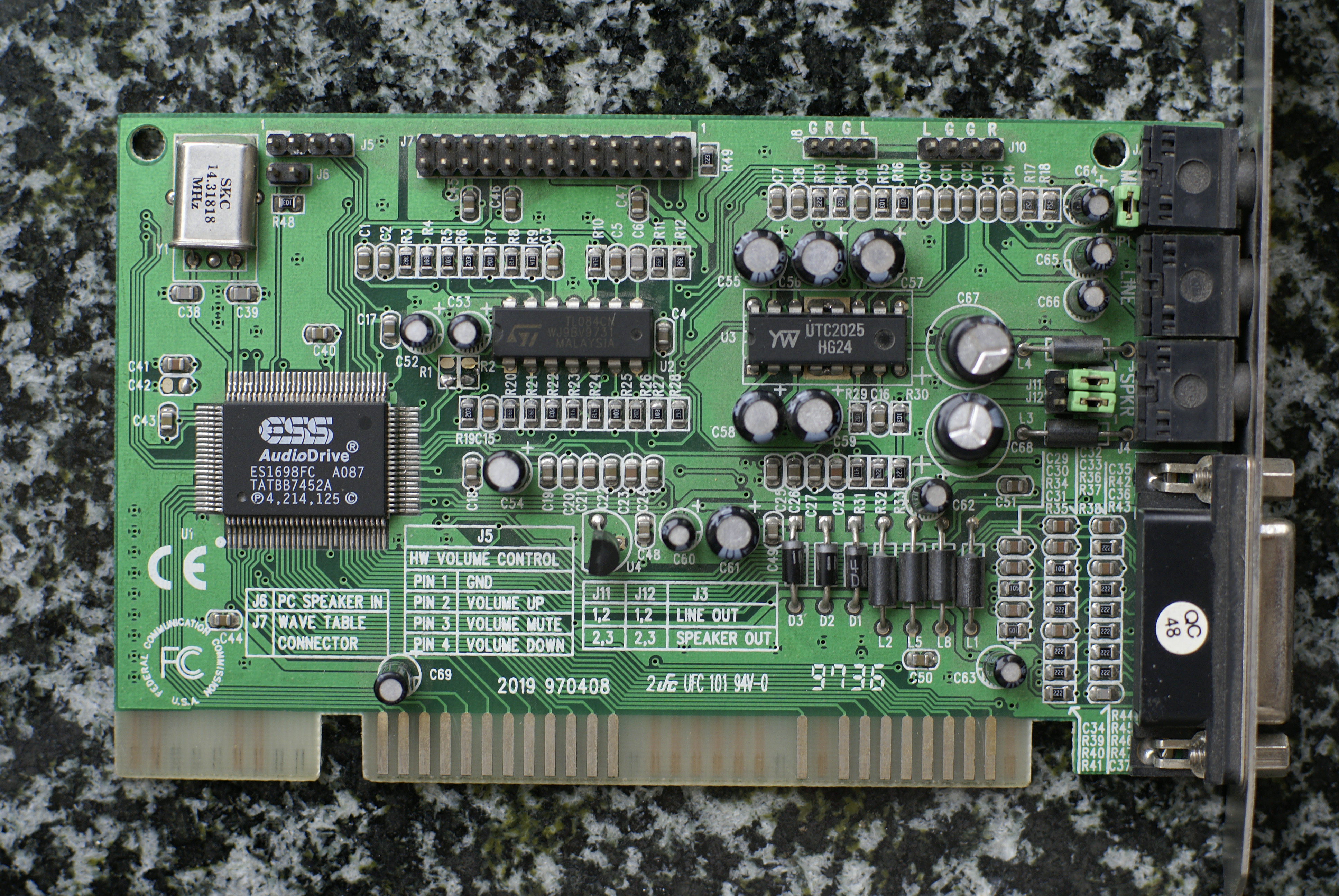

Very little is known about the ES1698 - they seem pretty rare. The card shown above is owned by DOS Days' contributor Dalei Fang, which he bought back in 1996. His driver disk is the same as the one below, but also contains an Audio Rack application. He mentions also the following:

1) The ES1698 has ESFM because I get a different-sounding FM voice compared to OPL3 or its equivalents. The voices really impress me.
2) My ES1698 card has a permanent stereo wide (or "3D") effect that can't be controlled via software settings. I got a lot of crosstalk between left and right channels. Perhaps this is why there is a TL084 between ES1698 and the output/power amp.

All I can determine is from the driver disk contents which indicates it is Ad Lib, Sound Blaster, Sound Blaster Pro and Windows Sound System compatible, and has an MPU-401 UART interface.

DOS & Windows 3.1/9x Drivers

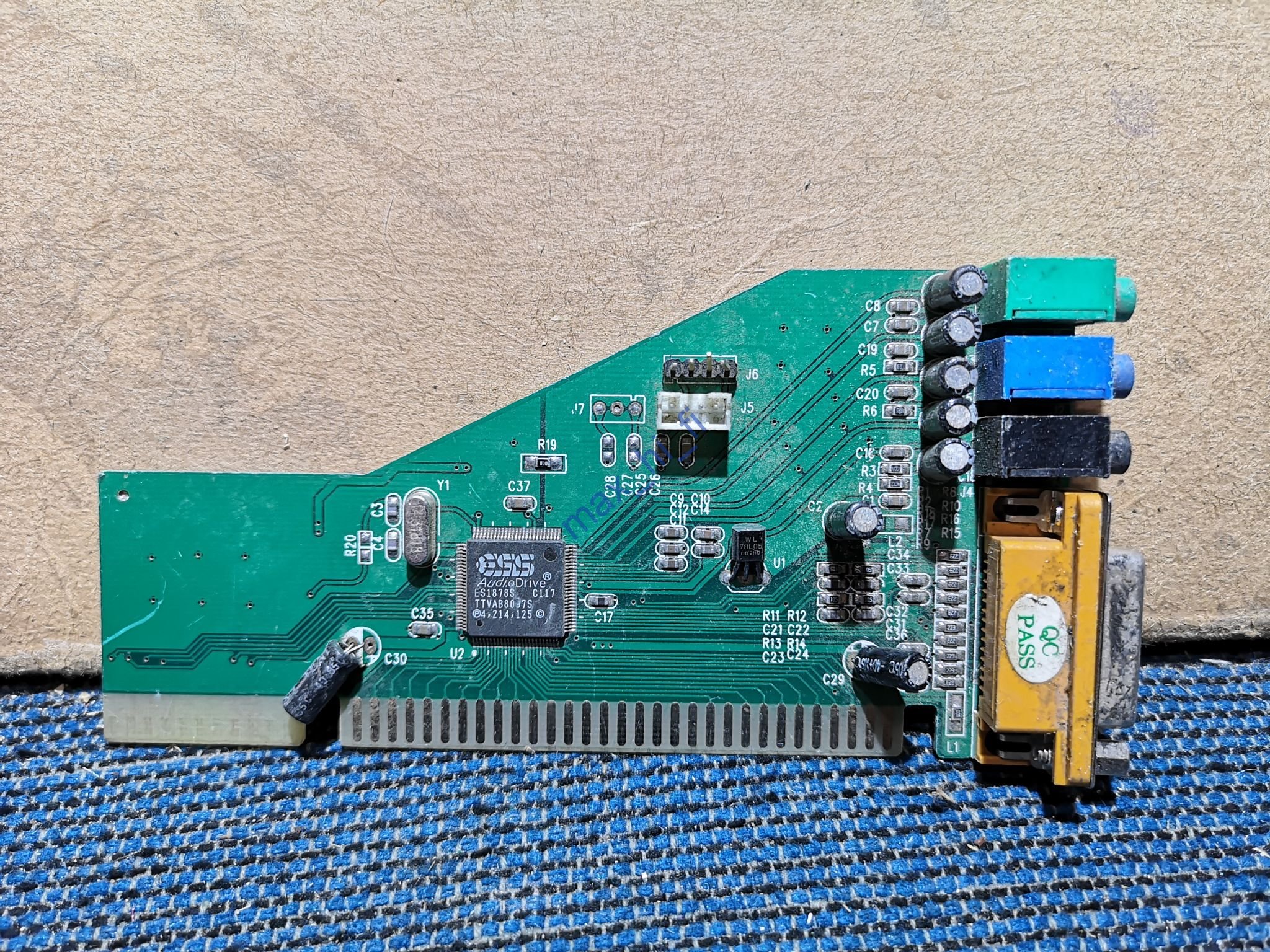

ES1788 AudioDrive

Introduced: 1995?
Chipset: ESS1788
Bus: 16-bit ISA

The ES1788 integrates digital logic and a microcontroller with audio CODEC and other analog functions onto one chip, and includes ESFM™ synthesis. The ES1788 is PC games compatible in SB and SB Pro modes and is compatible with Microsoft Windows and other operating systems. The ES1788 includes hardware volume control, 64 step volume control and dual game/joystick port for game support.

The ES1788 was the first ESS card to have dual game ports, and also the first to have a hardware volume control (thumb wheel). It offers 16-bit 44.1KHz stereo recording and playback (half-duplex).

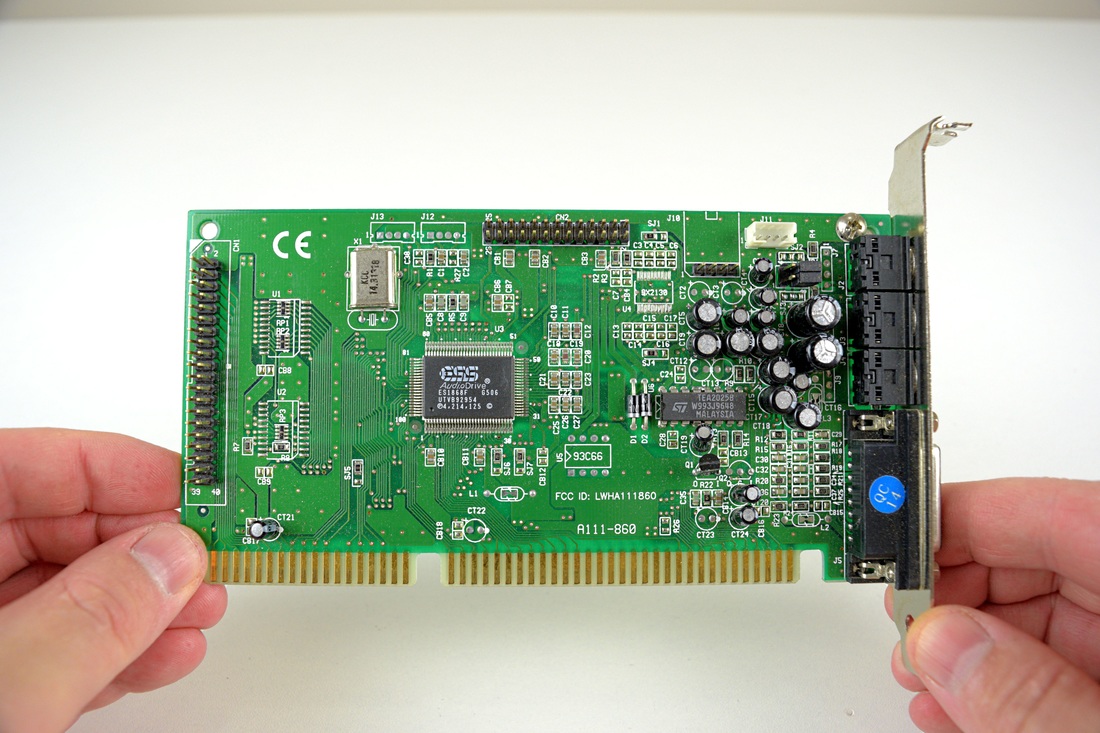

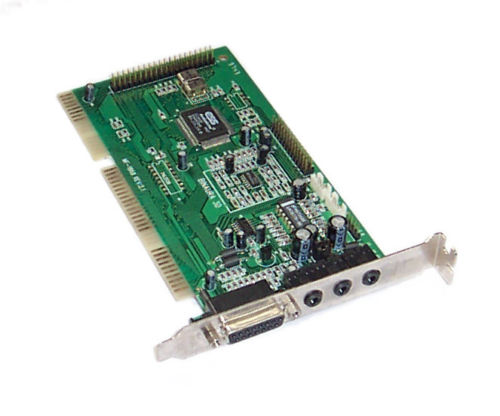

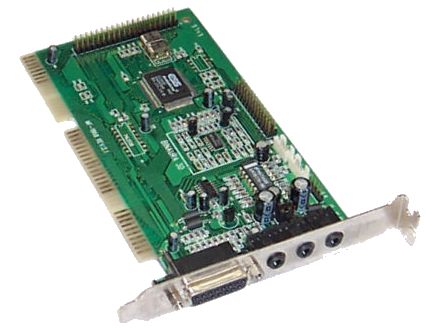

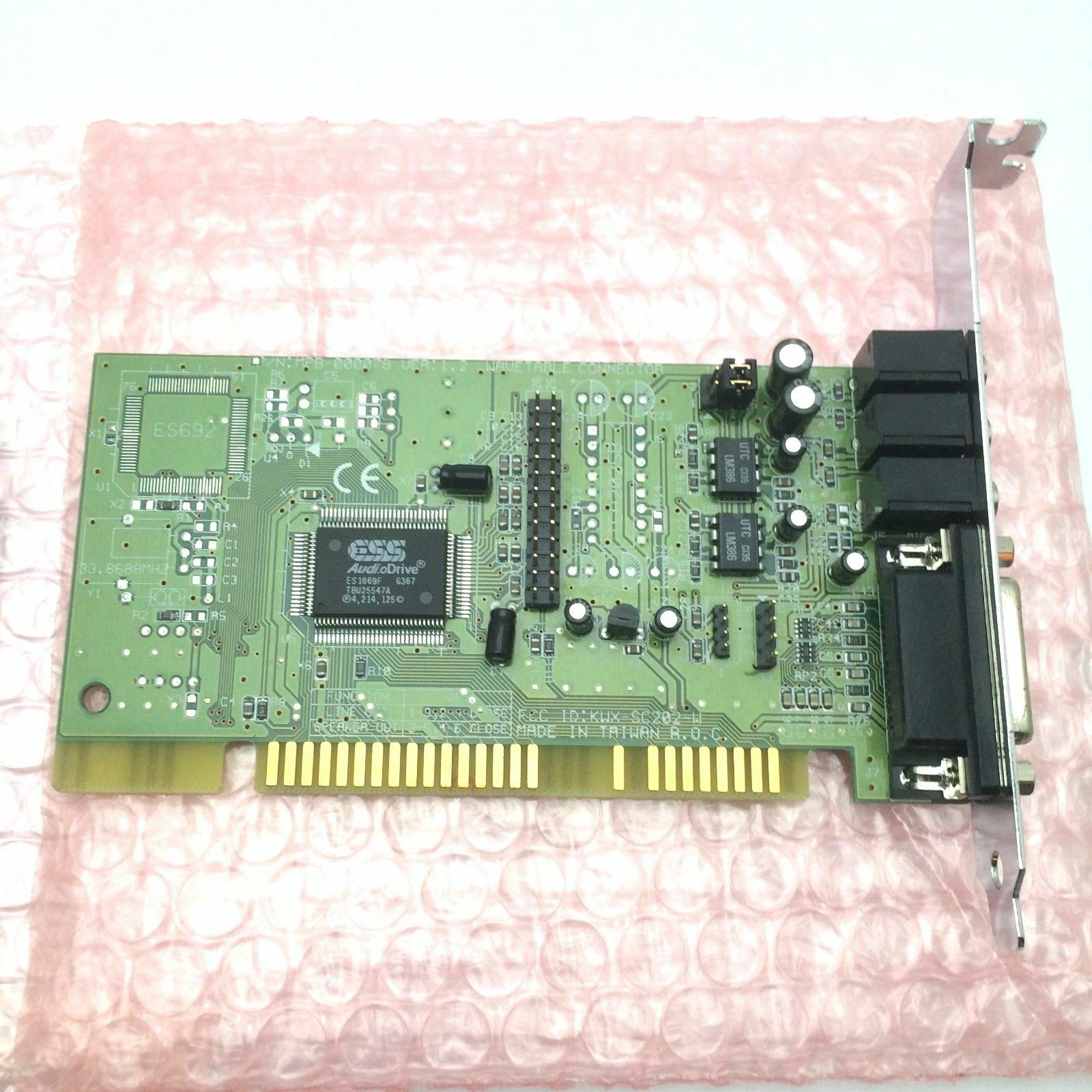

ES1868 AudioDrive

Introduced: November 1995
Interface: 16-bit ISA
Chipset: ES1868
Full Duplex 16-bit Stereo 44.1kHz
Sound Blaster / Sound Blaster Pro compatible
FM Synthesizer ESS ESFM (Yamaha OPL3 compatible) .
Built-in stereo amplifier LM1817.
Hardware MPU-401 UART interface.
Plug & Play.
WaveTable connector
IDE CD-ROM Interface

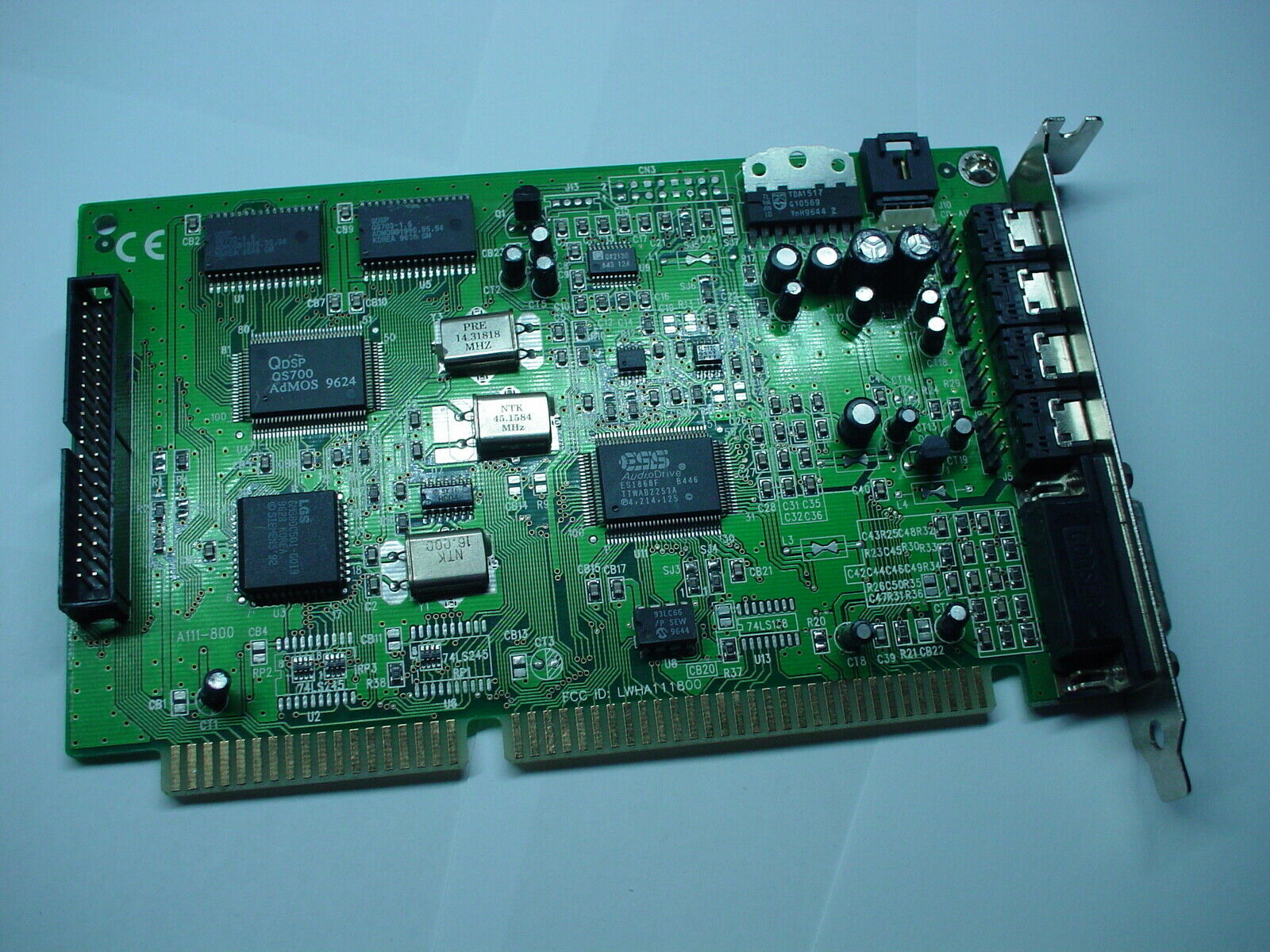

FCC ID: LWHA111860 or LWHA111A20

Most ES1868 cards have low-noise, and support up to Sound Blaster Pro 2.0 gaming. Despite providing 16-bit recording and playback capabilities, the ESS1868 is not Sound Blaster 16-compatible. They are considered one of the best sound cards to use for DOS gaming.

"ESS TECHNOLOGY, INC. INTRODUCES FIRST SINGLE-CHIP AUDIO SUBSYSTEM WITH INTEGRATED MUSIC SYNTHESIS AND FULL WINDOWS 95 PLUG AND PLAY SUPPORT FOR MULTI-FUNCTION MULTIMEDIA
Fremont, CA (November 13, 1995) -- ESS Technology, Inc. introduced today the ES1868, the industry's most integrated audio solution for multimedia PCs and multi-function add-in cards. The ES1868 AudioDrive® single-chip audio subsystem is the only device that integrates on-chip FM synthesis, full-duplex operation, 16-bit CD-quality stereo audio performance, and extensive Plug and Play support for multiple devices in emerging multimedia designs. The ES1868's direct interfaces to an external modem DSP and IDE CD-ROM devices facilitate system design including audio, telephony, and video subsystems.

"The ES1868 device provides the industry's most integrated solution to support audio, telephony, and CD-ROM interfaces under the Windows 95 Plug and Play architecture," stated Fred Chan, President of ESS Technology, Inc. Technology. "This functionality will accelerate development of powerful multimedia PCs to address emerging integration of audio, video, and telecommunications processing."

Integrated 16-bit 44.1KHz CD-Quality Stereo Audio

The ES1868's integrated audio subsystem builds on ESS Technology, Inc.'s established architecture for single-chip audio, with industry-tested complete compatibility for games operating in Sound Blaster™, Sound Blaster™ Pro, and AdLib™ modes. The ES1868 provides true 16-bit analog performance for 44.1 kHz CD-quality stereo audio record and playback.

The ES1868's ESFM™ music synthesizer is backward-compatible to OPL3 FM synthesis and provides superior sound quality with ESFM music synthesis. ESFM music synthesis achieves greater realism and instrument timbre for every sound. The ES1868 AudioDrive can record, compress, and playback voice, sound and music with built-in 6 channel playback mixer controls. The ES1868 supports full-duplex operation for simultaneous record and playback, including direct interface to a modem data pump DSP for simultaneous voice I/O in speakerphone and telephony applications.

Control of Multiple Multimedia Devices under Plug and Play The ES1868 contains the industry's most extensive on-chip Plug and Play device support for multiple multimedia devices, fully compliant with the Windows 95 Plug and Play Specification. ES1868 supports seven internal Plug and Play logical devices, as well as three Plug and Play external devices, more than any other audio subsystem device. "The market requirement for an integrated multimedia PC stems from several sources," explained Bill Windsor, Strategic Marketing Manager at ESS Technology, Inc.. "The explosive growth of audio and video for multimedia, and PC telephony for office and Internet applications, increases the importance for efficient interface between these subsystems and integrated Plug and Play compliance," he continued.

The ES1868 provides Plug and Play configuration for up to seven logical devices: Audio/FM, Modem, IDE CD-ROM, Dual Joystick game ports, MPU-401 MIDI serial port, Configuration I/O Registers, and configurable User I/O space. Configurable User I/O space provides up to 16 consecutive Plug and Play logical device ID addresses, enabling users to add a custom external multimedia processor for product differentiation, such as a specialized audio processor or communications device. For PnP configuration, the ES1868 operates with either an internal ROM, or an external EEPROM directly programmable through the ES1868, which enables putting multiple identical add-in cards in a system.

Audio Interfaces for Telephony, CD-ROM, and Games

The ES1868 contains multiple device interfaces facilitating multimedia system design. The ES1868's interface to a fax/modem subsystem includes a synchronous DSP serial port to connect directly to a modem DSP, and full-duplex direct connect for speakerphone. The ES1868's interface to the enhanced IDE CD-ROM provides all control signals for programmed I/O or DMA to and from the PC bus. The ES1868 includes an MPU-401 serial port for MIDI instrument interface, a third serial port for wavetable synthesizer interface, dual joystick ports for 2-player interactive games, and hardware volume control. The ES1868 includes a parallel ISA bus interface, and advanced power management modes for notebook and green PCs.

Software Support and Product Availability

The ES1868 chip comes with device driver software that supports PC stereo audio under Microsoft® Windows™, Windows 95™, Windows NT™, and Windows Sound System™ 2.0, in addition to IBM® OS/2 Warp™ operating systems. ESS Technology, Inc. will release a DirectSound driver for ES1868 in 1Q1996 under Microsoft's Games SDK for new high-performance Windows 95 games. The ES1868 is an extension of ESS Technology, Inc.'s AudioDrive family of audio chips, which includes the ES1688, ES1788, ES1888, ES690, and ES938.

The ES1868 is packaged in a 100-pin PQFP and is sampling now, with production in 1Q1996. Evaluation Kits are available now, including Evaluation Boards for ES1868/ES690/ES98X/ES938, and a sound applications software library. Pricing is available by contacting ESS Technology, Inc. directly."
ESS website, 13th November 1995



The non-OEM variants usually have an IDE header onboard as well as a wavetable header which does not suffer from any bugs like SB card hanging notes bug when playing FM and digital audio via the wavetable at the same time.

When you install the ES1868 DOS drivers, just 1 line gets added to CONFIG.SYS:

DEVICE=C:\AUDIODRV\ES1868.COM /A:0 /I:0


and these 2 lines get added to AUTOEXEC.BAT:

C:\AUDIODRV\ESSCFG.EXE /A:220 /I:5 /D:1 /B:300 /J:D
C:\AUDIODRV\ESSVOL.EXE /V:8 /L:8 /W:8 /M:0 /C:8 /S:8 /A:0

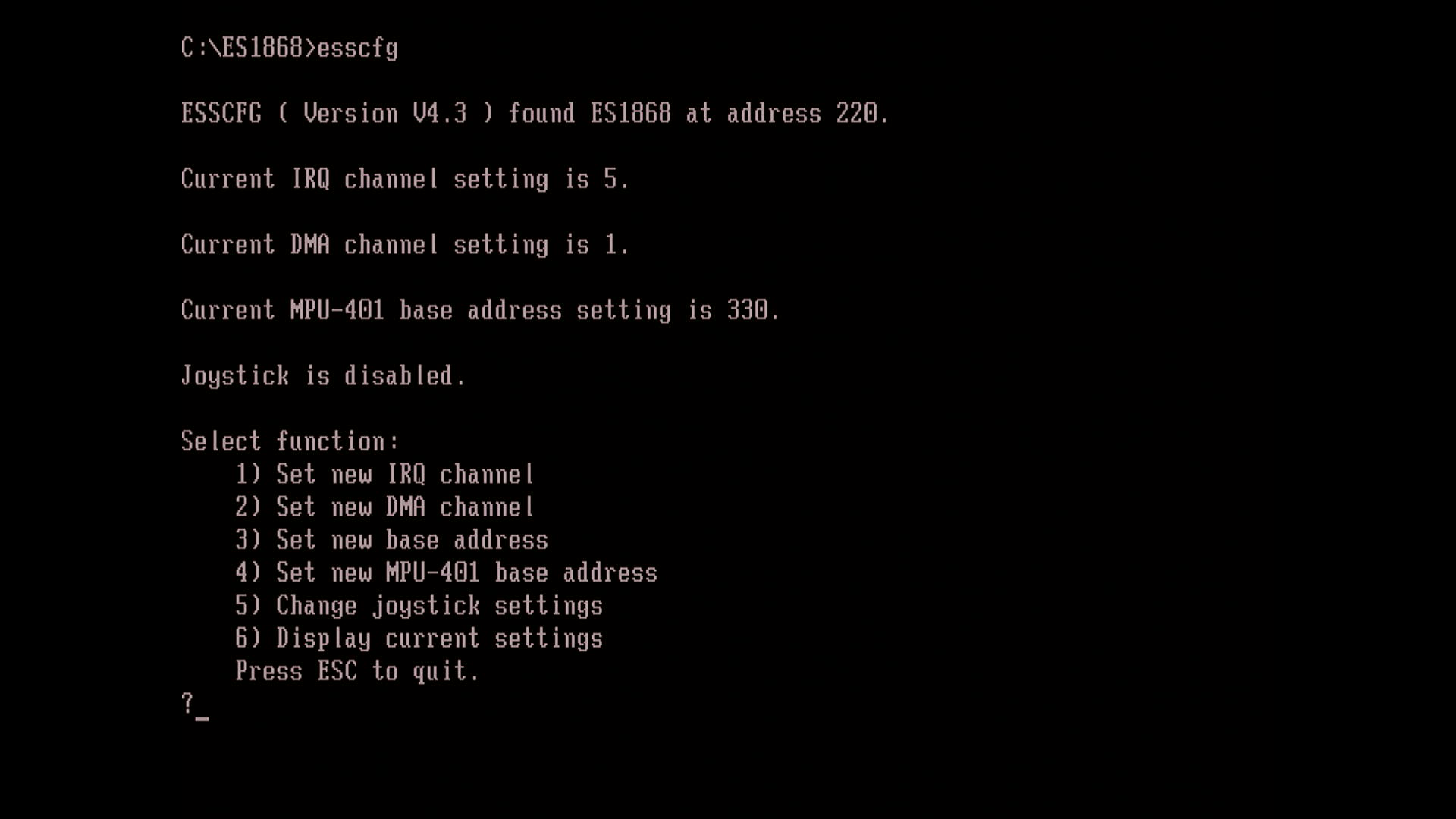

The ESSCFG.EXE utility is used to configure the I/O card's address, IRQ and DMA channel. It's not pretty but it works, and after completing it does not leave itself in memory which is great for demanding games when it comes to precious conventional memory:

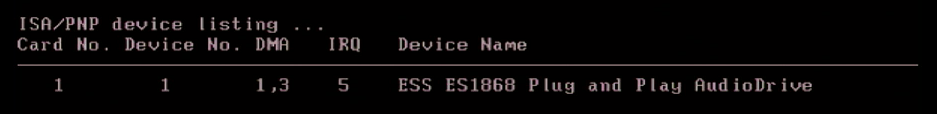

If used with a PnP BIOS, the command-line options for ESSCFG utility are ignored:

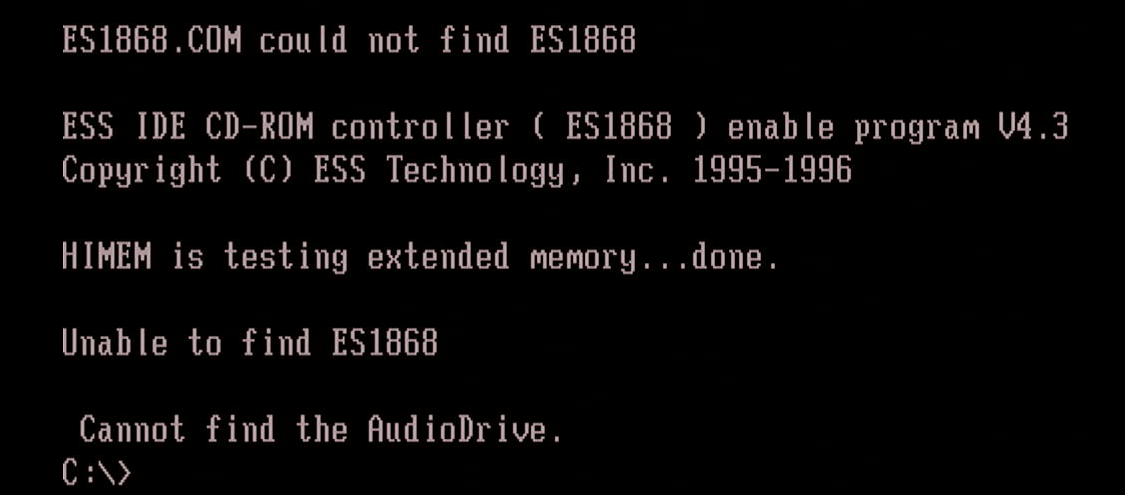

If the card cannot be found, ES1868.COM and ESSCFG will return errors like this:

The IDE interface can be configured to run at I/O address 168h or 1E8h, and use IRQ 10, 11 or 12. It does require a separate device driver (see below in the DOS drivers ZIP file) to be added to CONFIG.SYS called ES1868.COM to enable the interface.

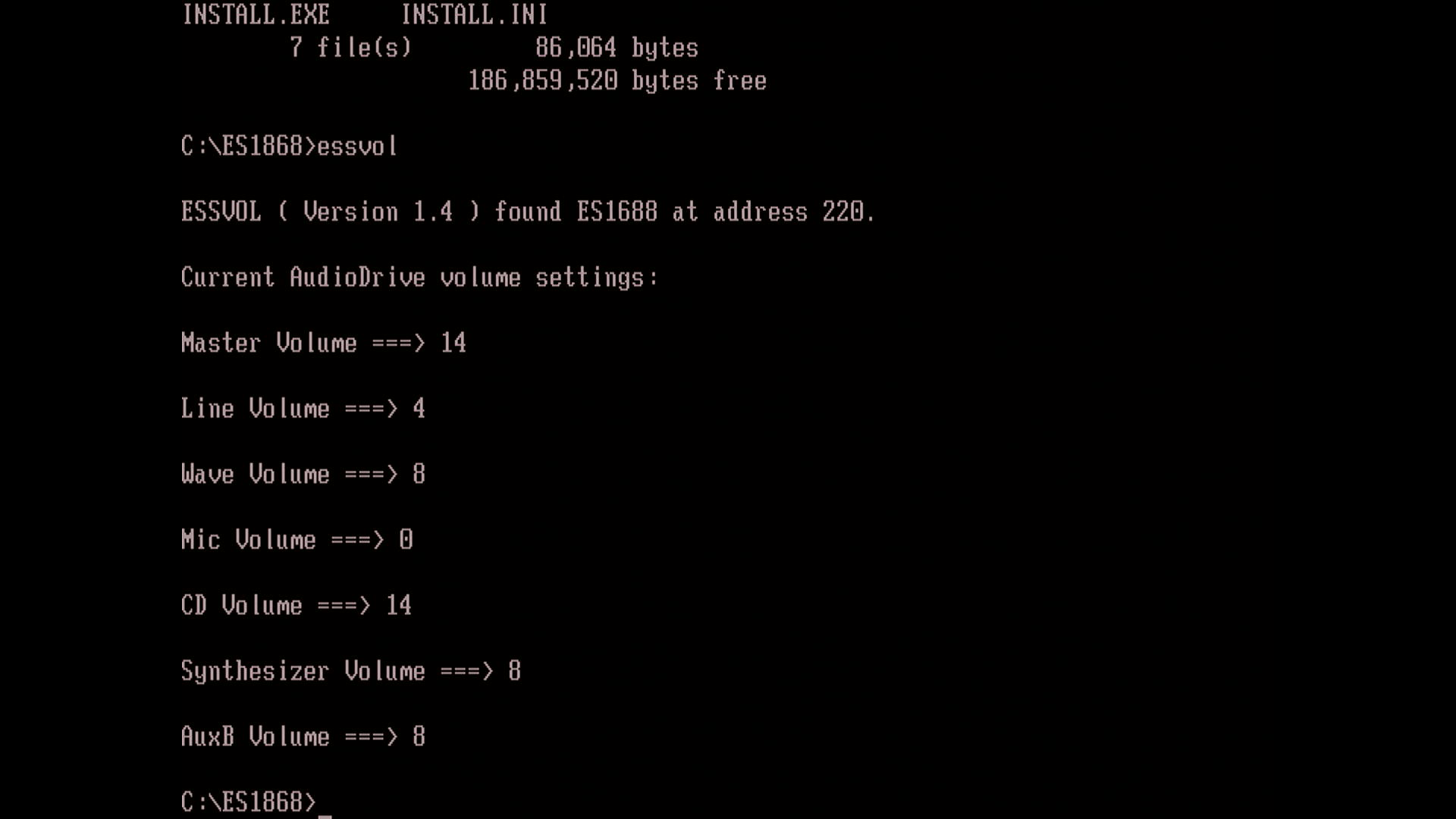

Once configured properly, you can use ESSVOL.EXE to set the various channel volume levels:

You can set the onboard jumpers to disable the onboard amplifier and you will get pretty decent output from this card. Suitable for 99% of DOS games. On some OEM cards, these jumpers may be present or not, and may be present but unlabelled.

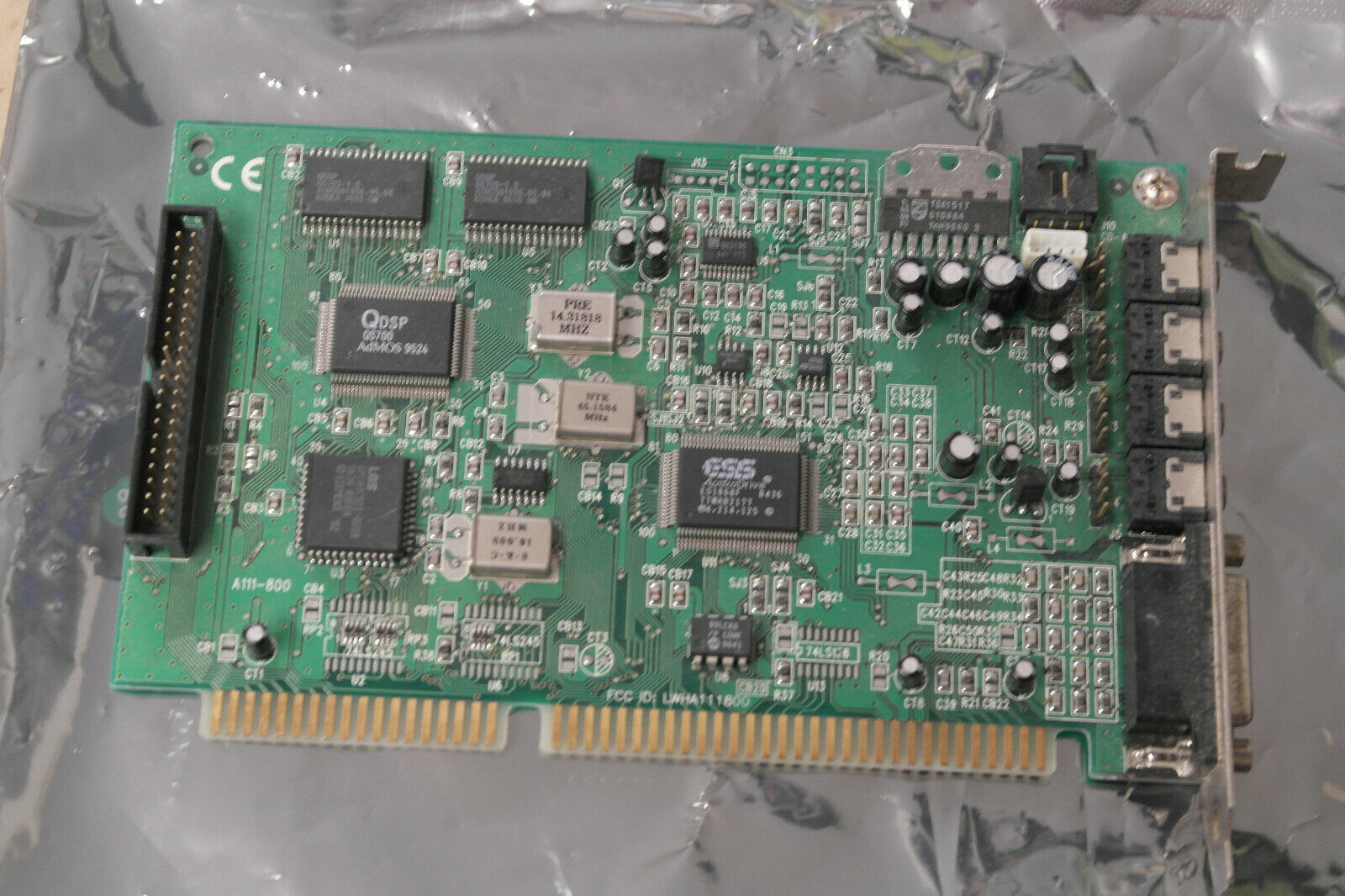

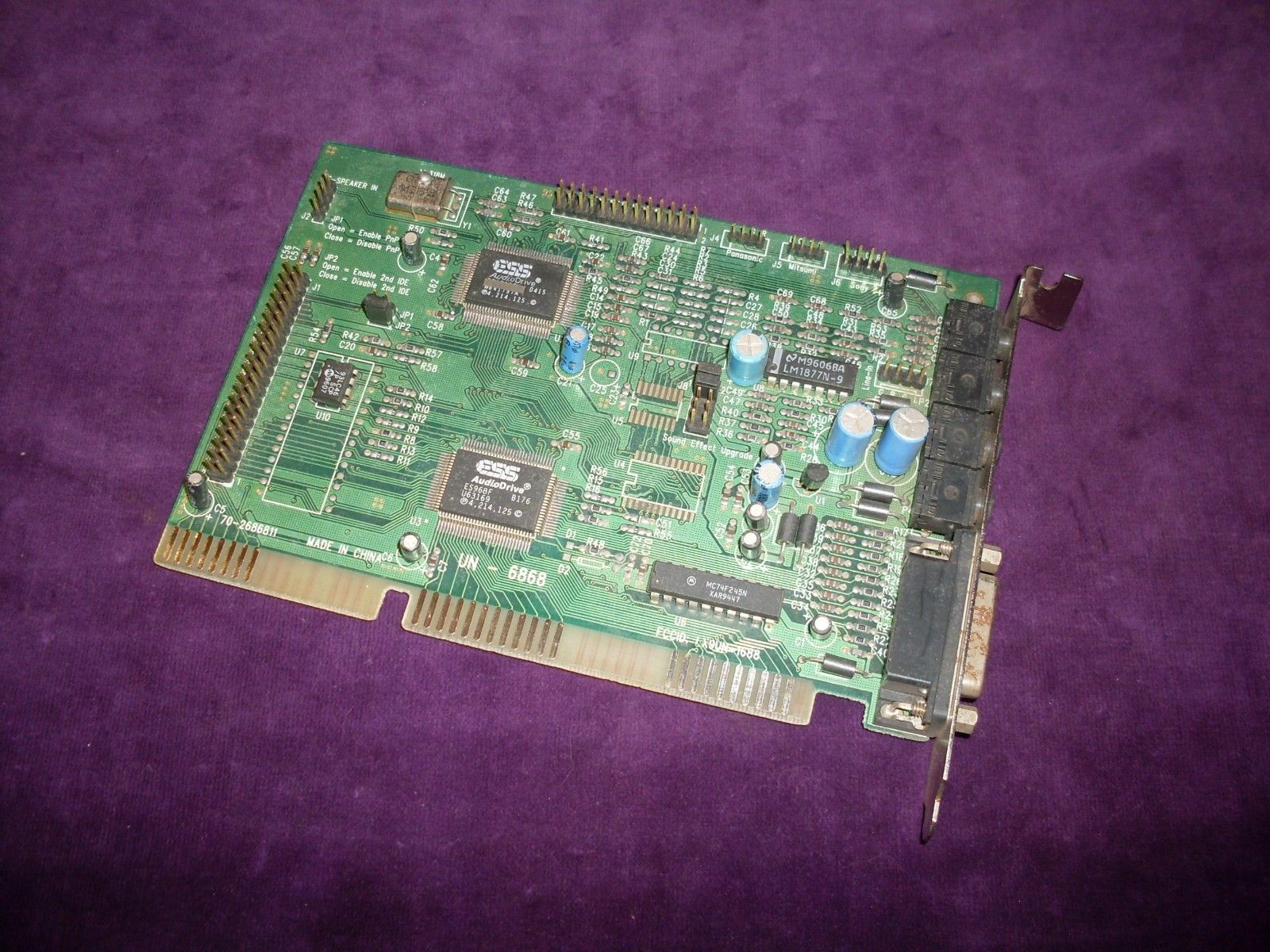

The ESS1868 card supported an optional onboard ES938 chipset which could provide "3D Spatializing sound effect" (designed to provide wavetable-like sound quality). See below for "Binaura 3D".

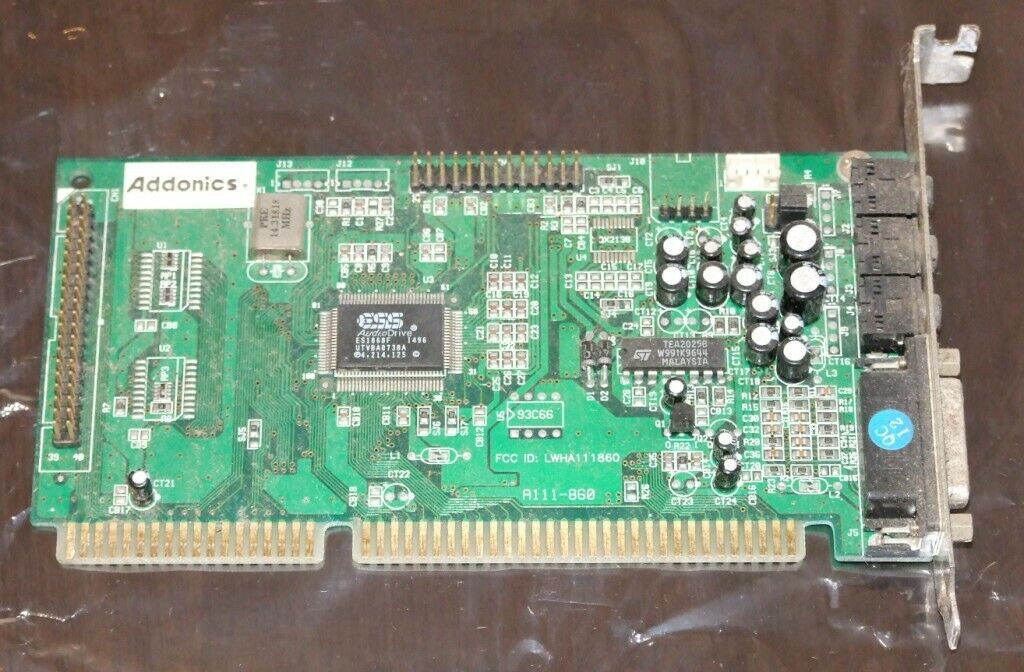

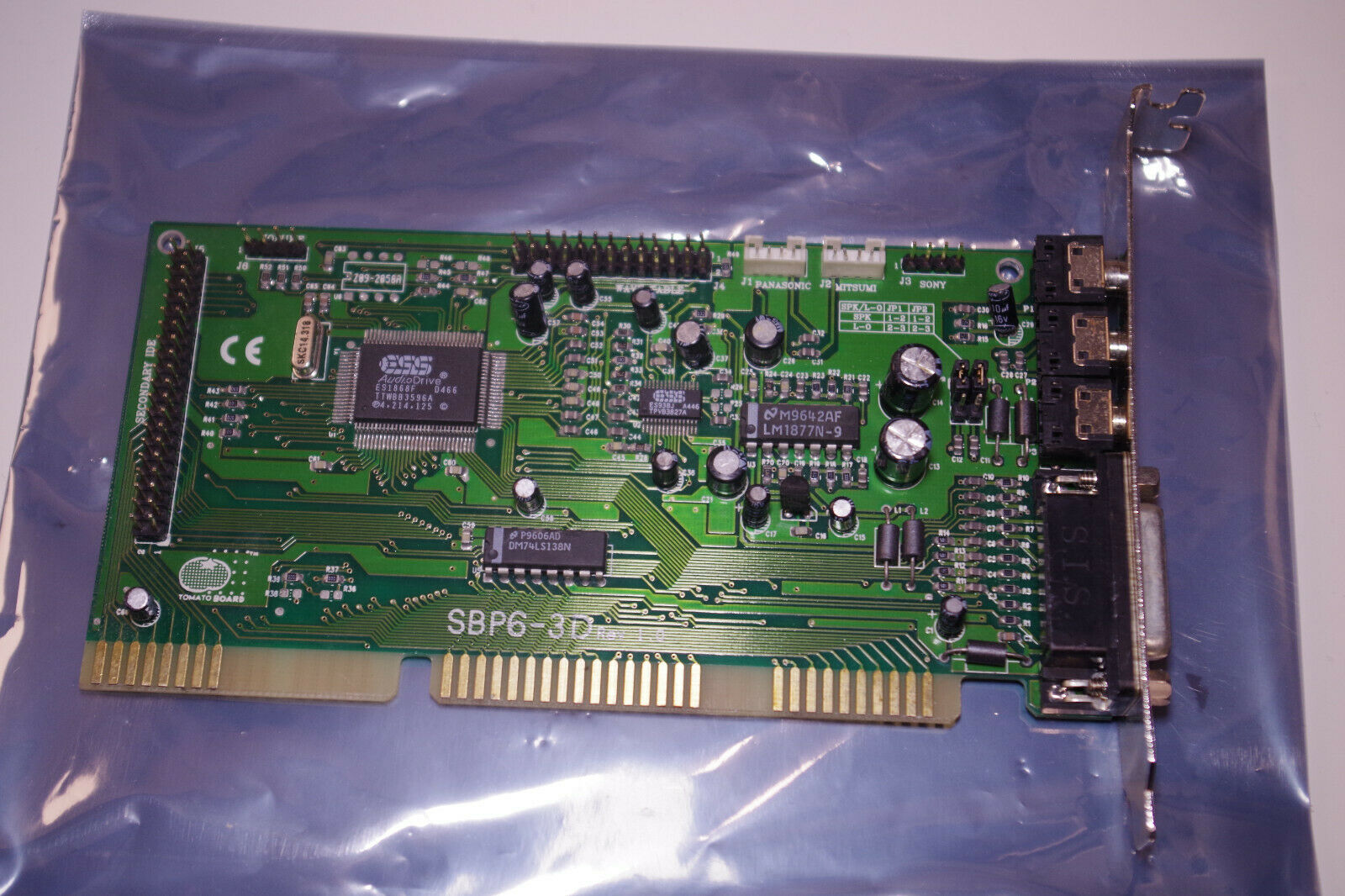

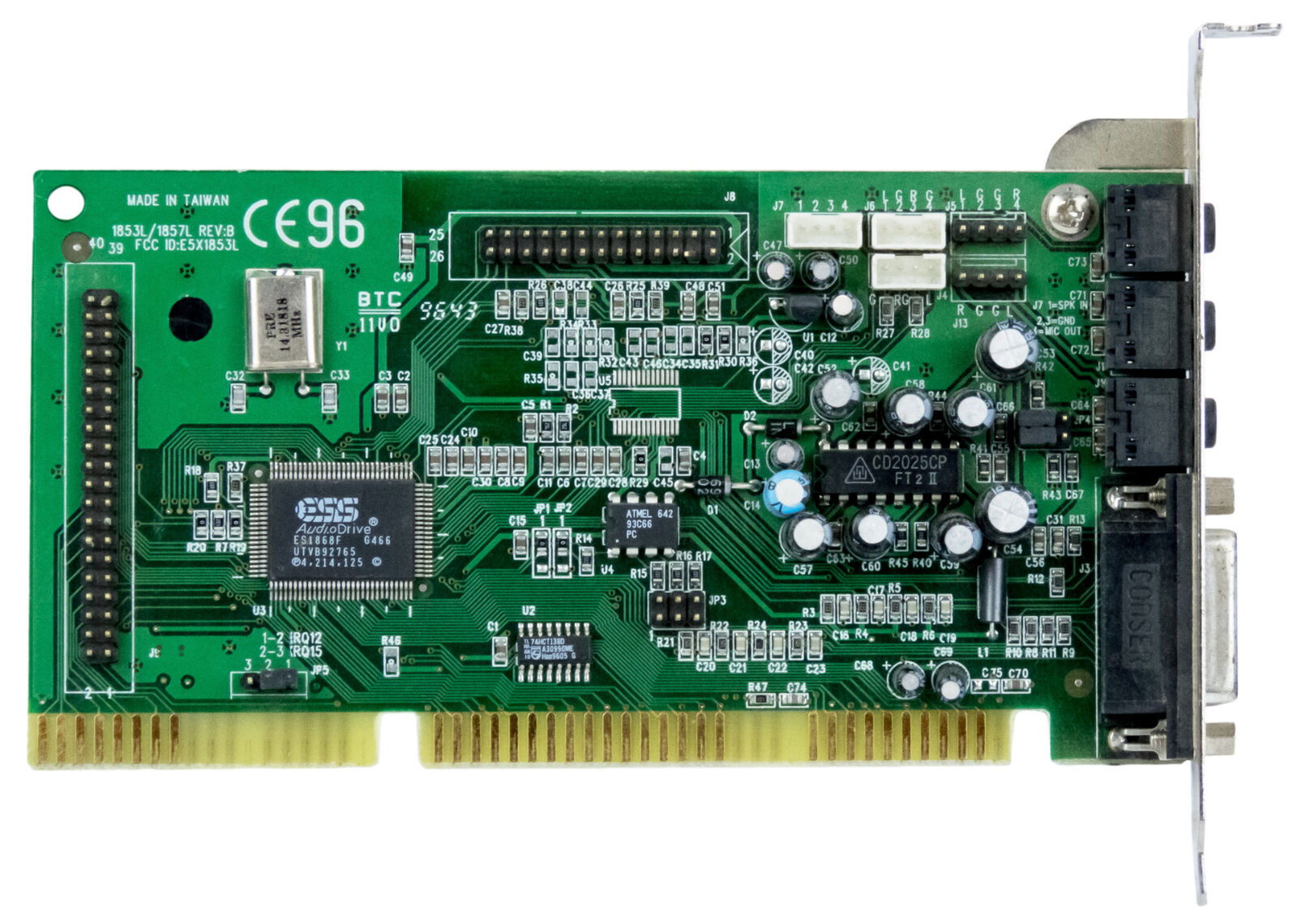

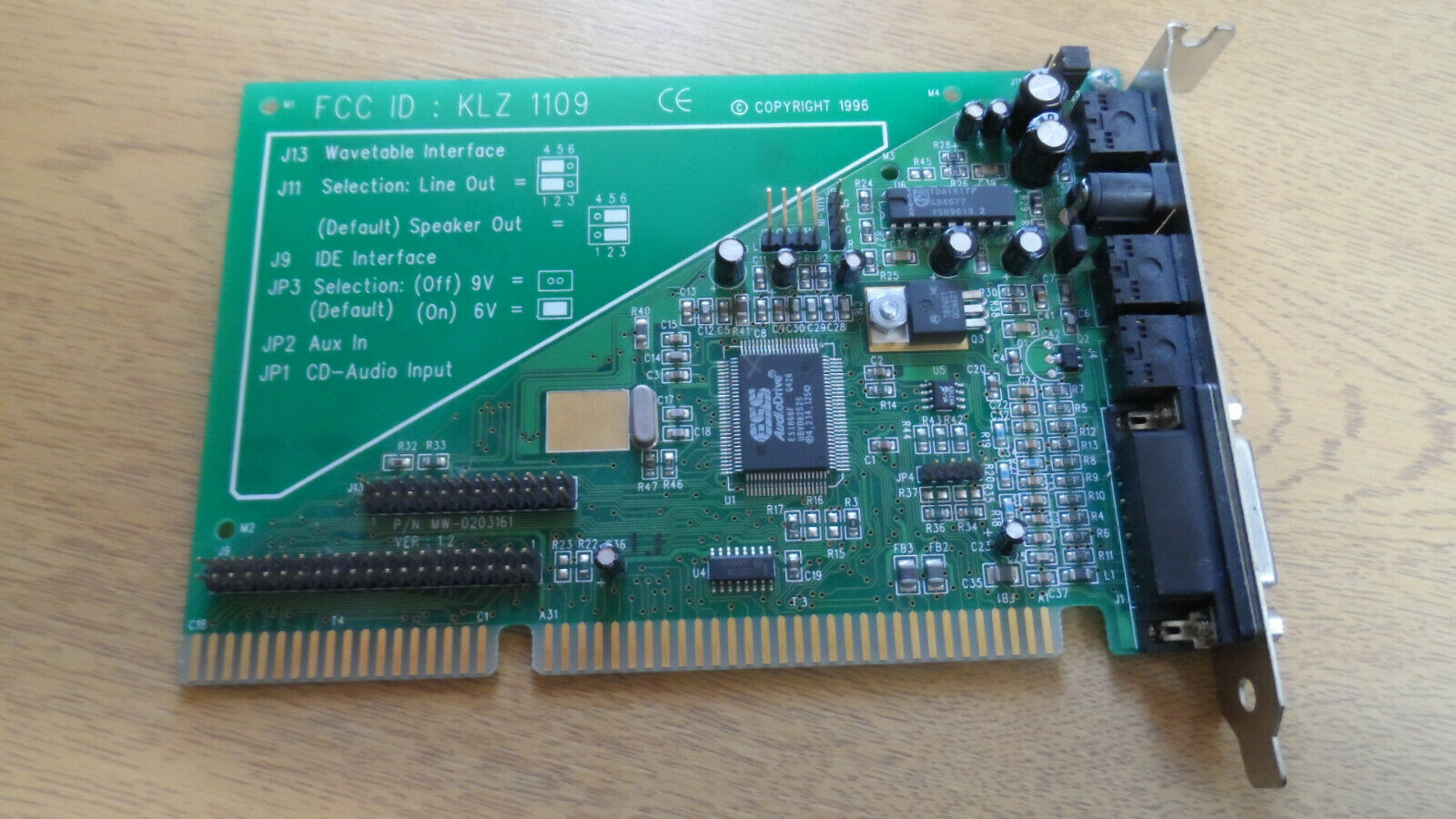

Numerous OEMs produced their own cards based on ESS' 1868 chip, including:

Drivers: DOS, Windows 3.1, NT 3.51, NT 4.0, Windows 95, Windows 98, OS/2 Warp

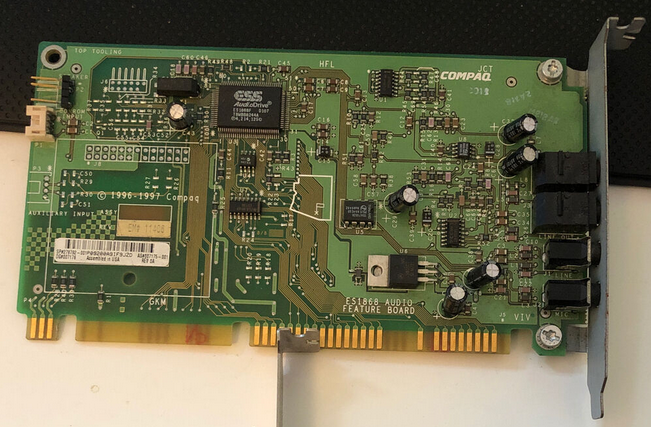

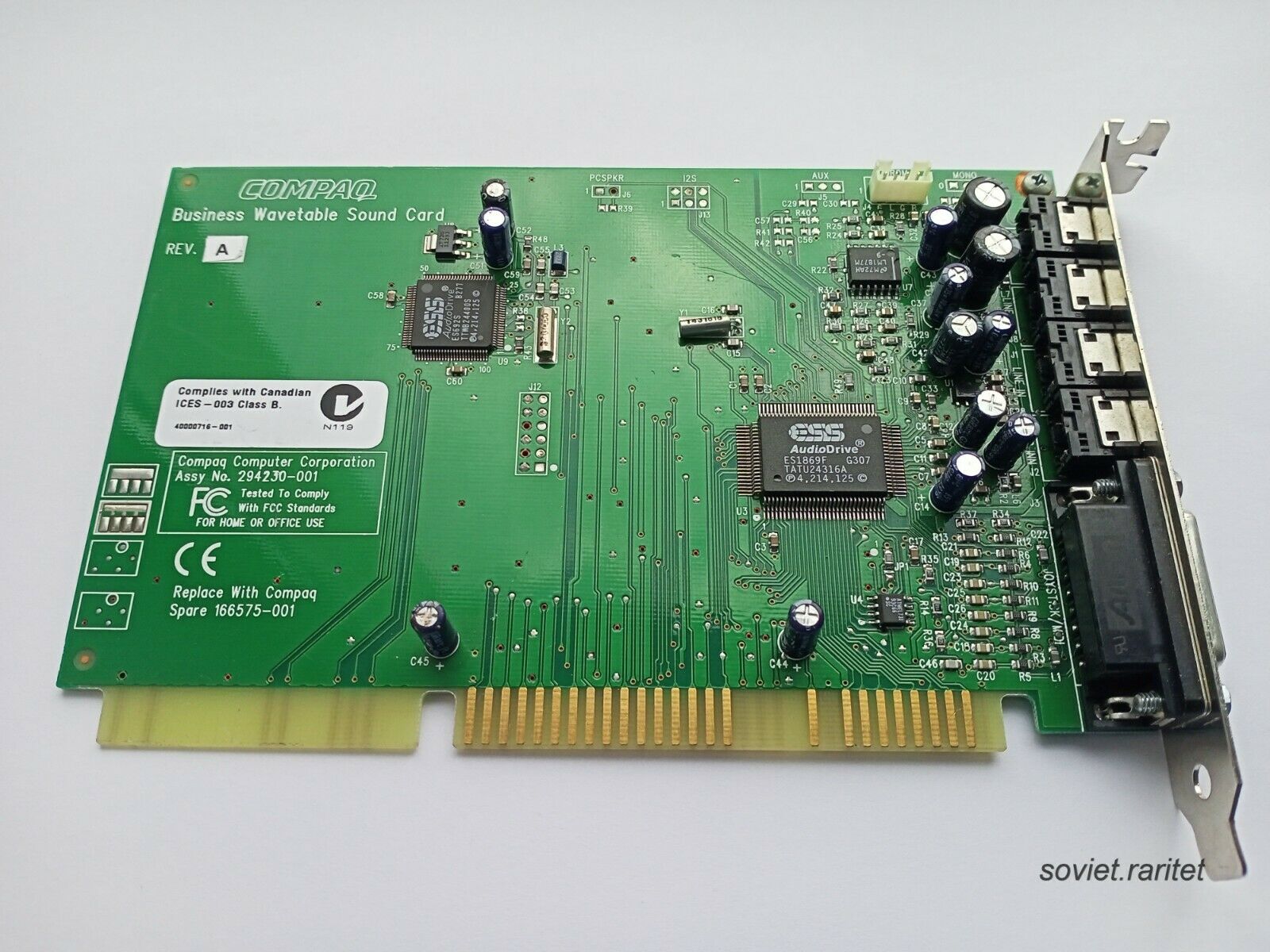

*Note that despite the Compaq card having an additional 6 pins on the far left side of the edge connector, this card works 100% in any 16-bit ISA slot. It is believed these additional pins connected to the internal speaker in Compaq desktop PCs.

Audio from my ES1868 AudioDrive can be listened to on the following game pages:

You can also compare the audio output of the ES1868 side-by-side with numerous other sound cards and external MIDI synthesizers in my Sound Blaster 16 CT2770 Retro Review.


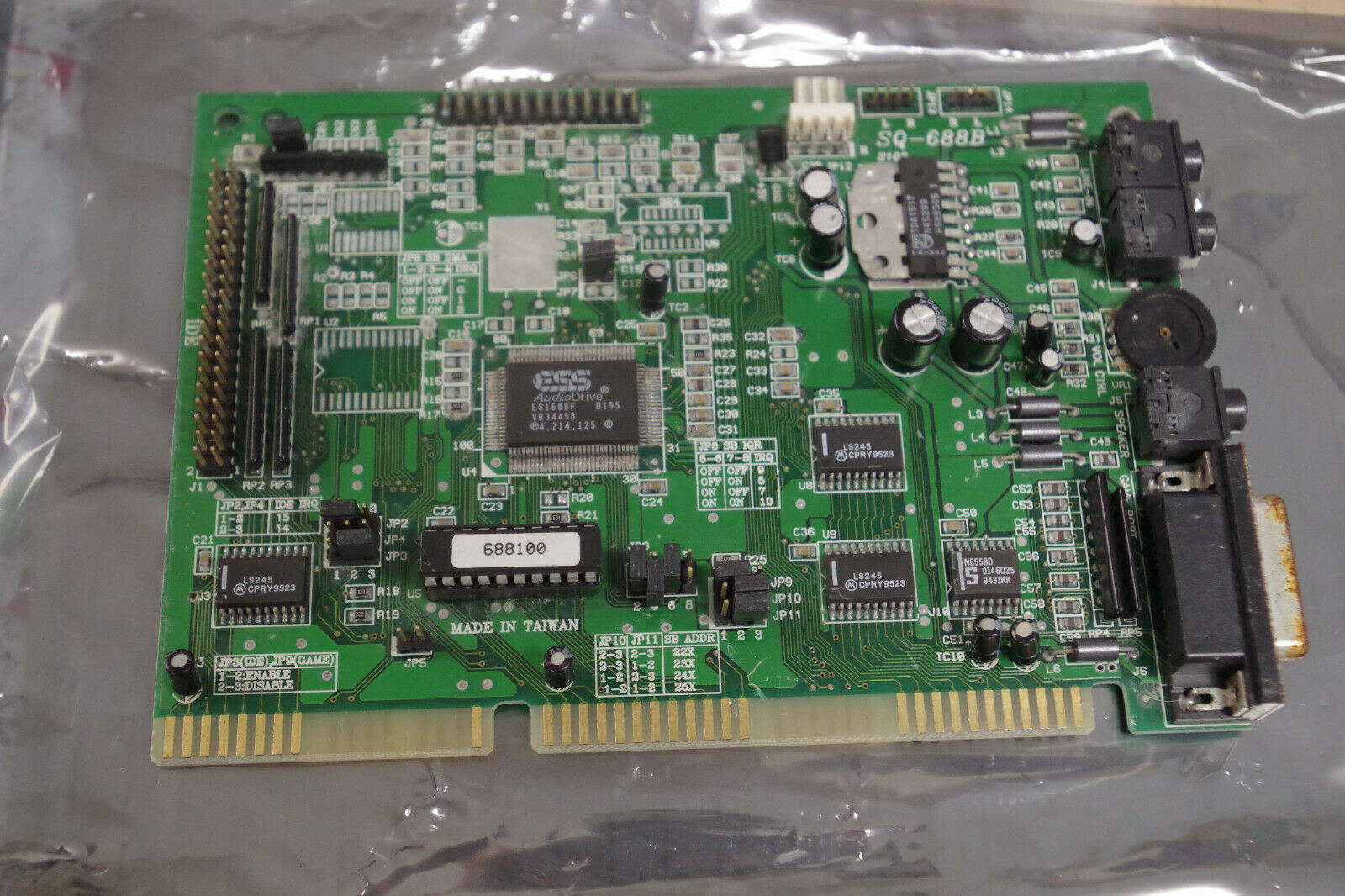

More Images

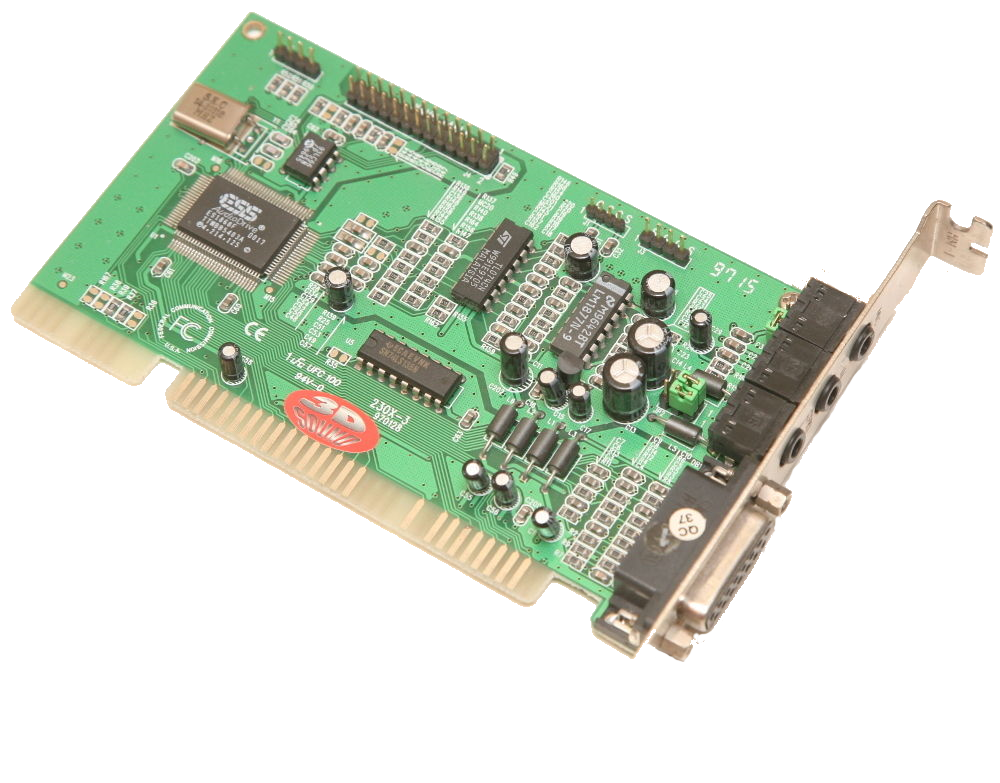

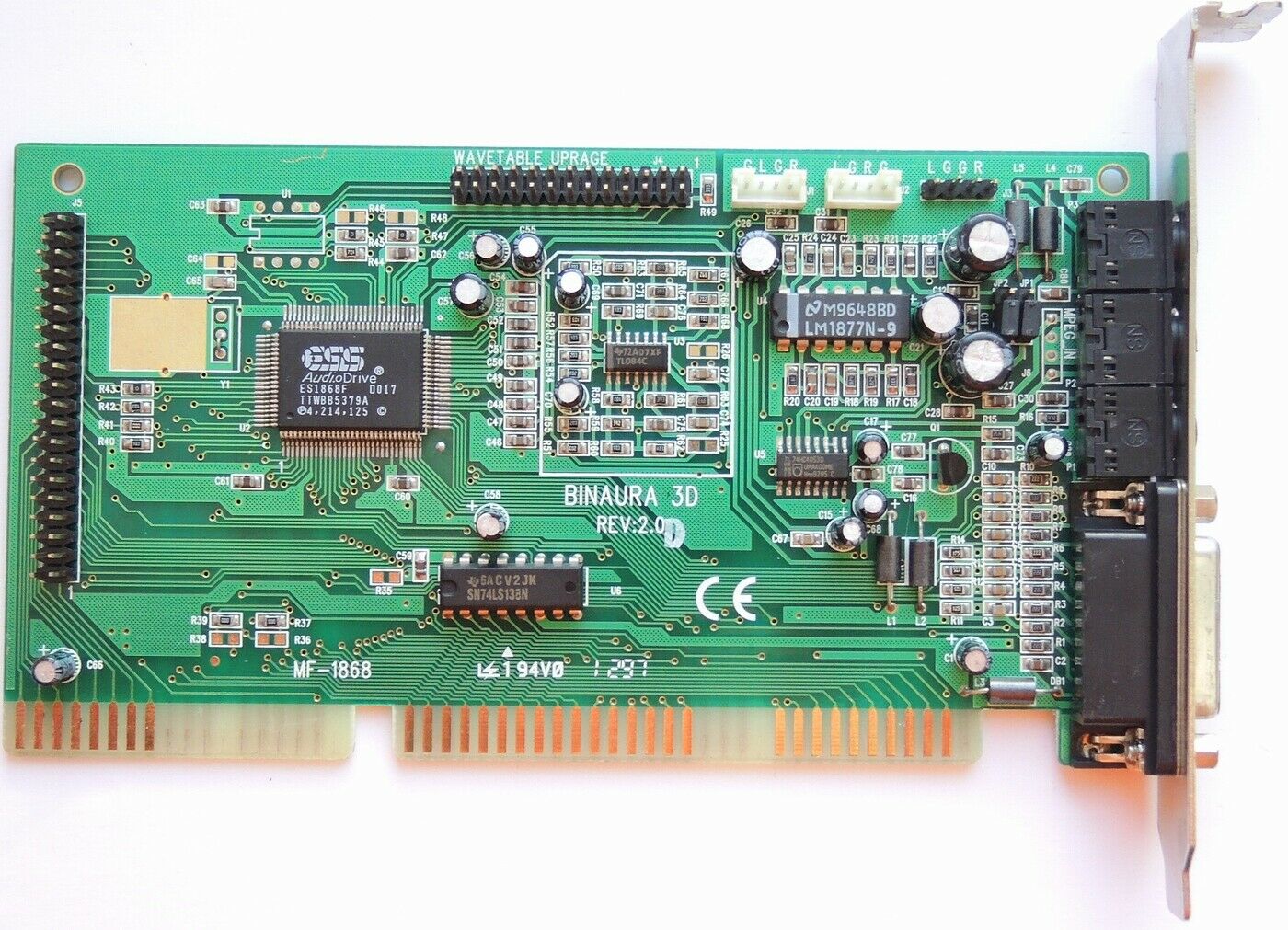

ES1868 Binaura 3D

Released in 1997
Interface: 16-bit ISA
Chipset: ES1868
Full Duplex 16-bit Stereo 44.1kHz
Sound Blaster / Sound Blaster Pro compatible
FM Synthesizer ESS ESFM (Yamaha OPL3 compatible) .
Hardware MPU-401 UART interface.
Plug & Play.
"BINAURA 3D" sound.
Built-in stereo amplifier LM1817.
WaveTable connector
IDE CD-ROM Interface

The ES1868 card is low-noise card that supports up to SB Pro 2.0 gaming, considered one of the best DOS gaming cards. It has an IDE header onboard as well as a wavetable header which does not suffer from any bugs like SB card hanging notes bug.

If used with a PnP BIOS, the command-line options for ESSCFG utility are ignored.

The IDE interface can be configured to run at I/O address 168h or 1E8h, and use IRQ 10, 11 or 12.

You can set the onboard jumpers to disable the onboard amplifier and you will get pretty decent output from this card. Suitable for 99% of DOS games.

Drivers: DOS Windows 3.1, NT 3.51, NT 4.0, Windows 95, Windows 98, OS/2 Warp

Here are some notes from ESS on their Spatializing technology:

"3D SPATIALIZING TECHNOLOGY

Everyone knows what stereo sound is. But how the brain perceives it, is important in order to better understand 3D sound. For example, if a piano sound is played through just the left speaker then we will perceive the sound as coming from the left side. If the same sound (and same level, or volume, of sound) is also passed through the right speaker then it will create the effect of the piano sound coming from the center of the two speakers - in essence from a "phantom" speaker. By manipulating the levels of the audio signals to the left & right speakers, and then adding 'effects' to them, it is possible to create up to two extra "phantom" speakers - thus giving us 3D Sound. Further to this we must then understand two more '3D terminologies' - Sum and Difference...

Sum describes the information of each monophonic audio signal sent to the left & right speakers (in other words - the sound, and to which speaker). Difference is the information we have when we look at the left & right signals in terms of level, timing/delay and frequency. By subtracting the Difference of the right signal from the Difference of the left signal we come out with the all-important 'spatial' information which characterizes stereo program material - and it is this which can be manipulated to produce 3D sound. It is important to note that for the best 3D results you should not add any effect to the Sum signal because this would affect the tone of the sound and result in lost tonal quality, and poor audio quality. This is where other 3D technologies fail. Instead 3D Spatializer concentrates purely on the Difference signal. These Difference signals are passed through a psychoacoustically correct filter which performs three critical functions. First it boosts the portion of the audio spectrum which we rely on most for spatial localization cues. Secondly it adds just enough phase delay, and further delays different parts of the Difference signal so that the sense of "space" and size of the "sweet-spot" is dramatically increased. Finally it has a filter/delay block which will prevent acoustic cancellation at low frequencies, so avoiding a sense of weak bass response. Another area of improvement over its competitors is that 3D Spatializer monitors the incoming signals, and if it senses existing spatial information it will only process this to it's optimum performance level. This is because 3D technology is now often used in the recording and game industry, and as such there is a danger of "over-processing" which can result in poor spatial image and loss of tone. No other 3D technology can offer the user a "set-and-forget" feature like this.

Developed by Desper Products Inc, USA and widely used by the recording and entertainment industry (with credits such as Walt Disney's "The Lion King" movie/soundtrack) the 3D Spatializer technology has leaped from the consumer electronic markets of TV's and Hi-Fi's to the desktop computer, and is fast becoming the '3D' by which others follow.. "     ESS website



ES1868 Cost Saver 3D

Introduced: 1996
Interface: 16-bit ISA
Chipset: ES1868

Plug & Play
Onboard "Binaura 3D" circuitry.

Wavetable header does not suffer from any bugs like SB card hanging notes bug.

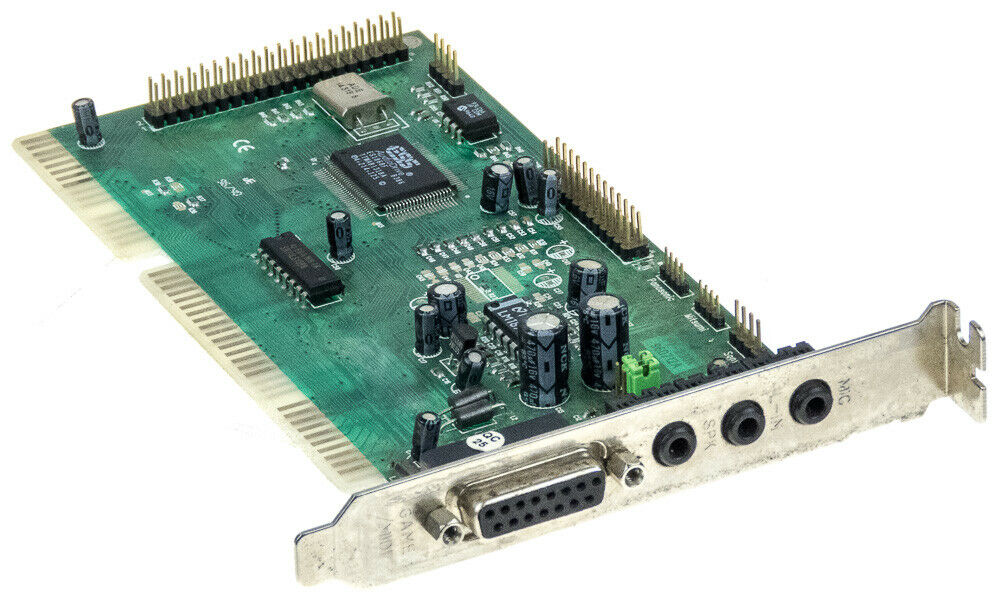

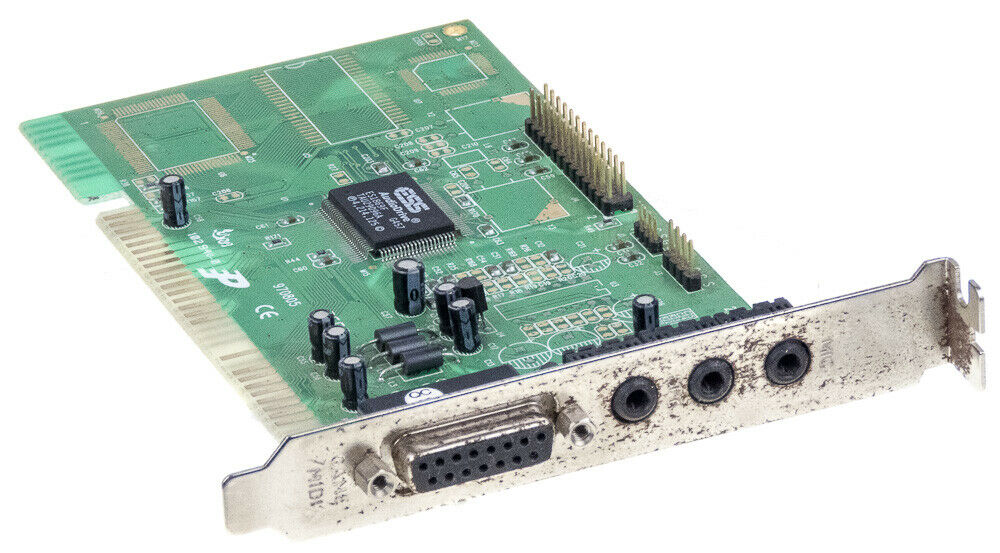

This card was also sold as the Pine Schubert 3D (PT-230X).

Windows 3.1, NT 4.0, Windows 95

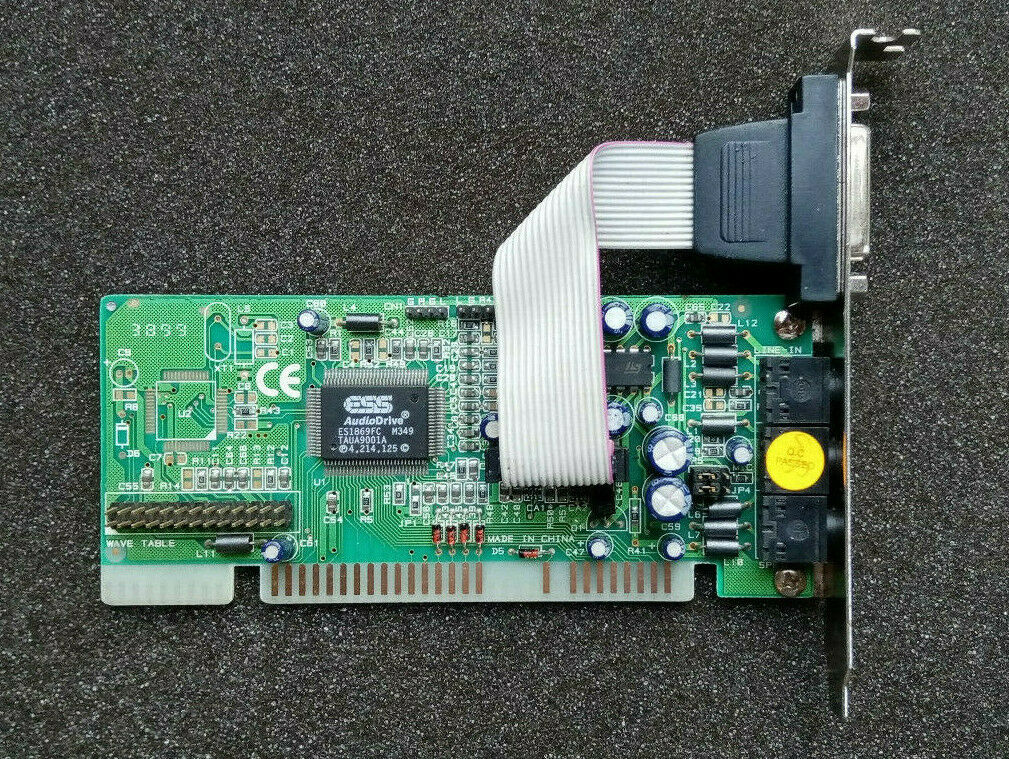

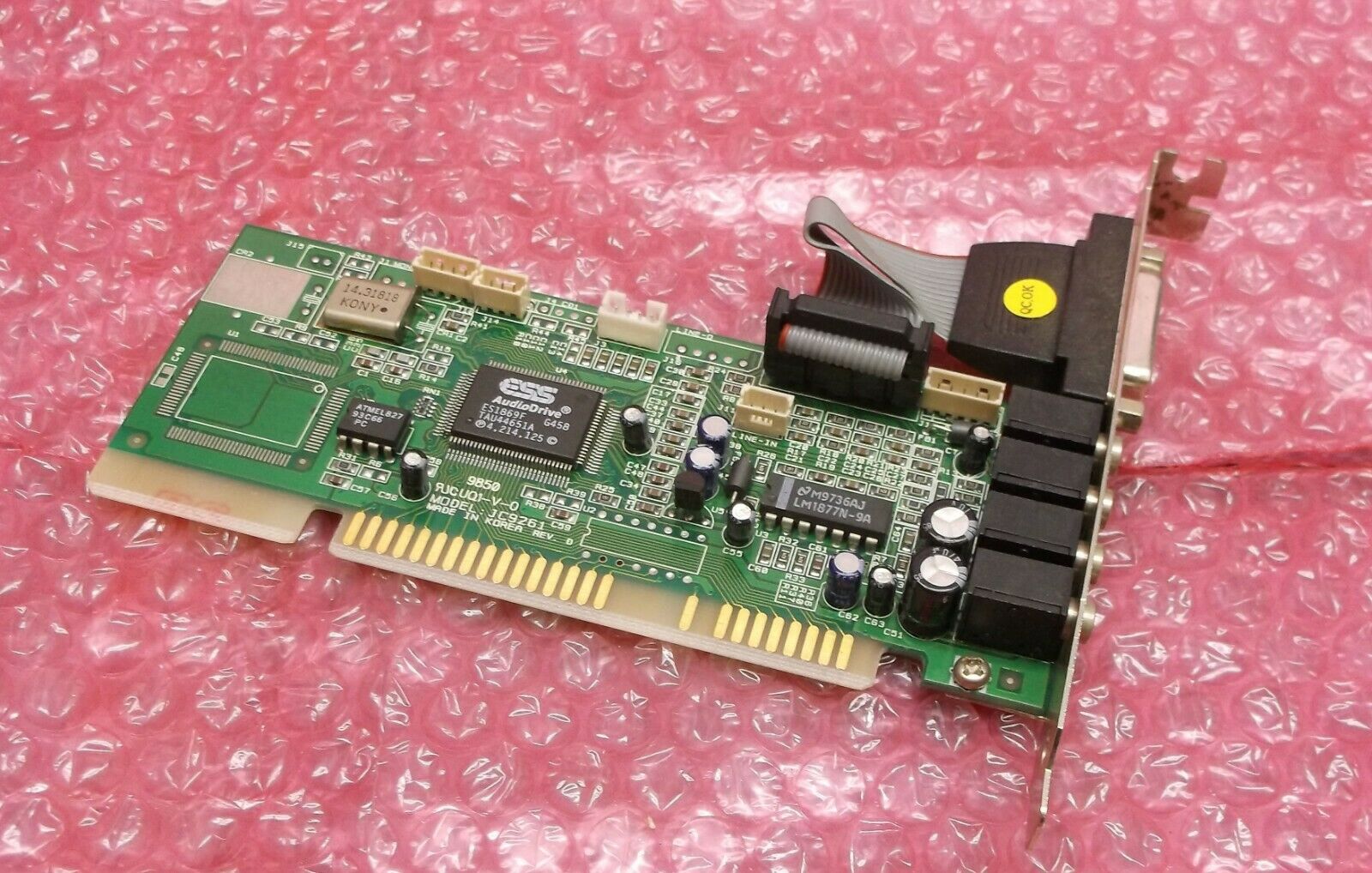

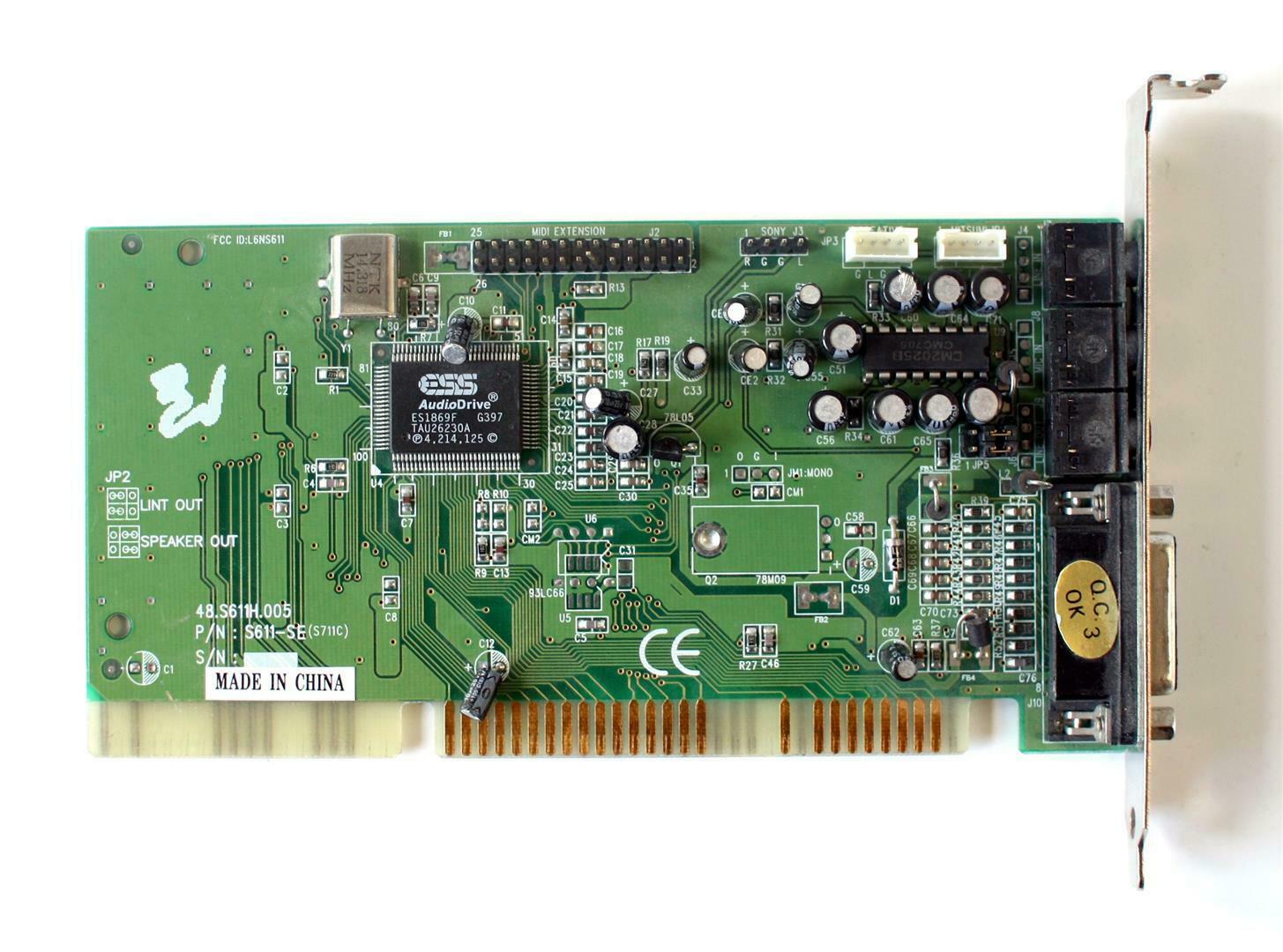

ES1869 AudioDrive

Introduced: October 1996
Interface: 16-bit ISA
Chipset: ES1869


OPL3 superset "ESFM" music synthesizer, IDE CD-ROM interface, dual joystick port, Hardware MPU-401 UART, "3D" spatial audio effects.
IDE interface for CD-ROM.

The ES1869 is a slightly upgraded version of the ES1868 chip. It supports the higher 48 kHz sample playback as well as 3D spatial audio.

"ESS TECHNOLOGY, INC. EXPANDS AudioDrive® PRODUCT LINE
Fremont, CA (October 2, 1996) --ESS Technology, Inc. (NASDAQ: ESST) today introduced three new audio devices to its existing AudioDrive family of products. These products, the ES1869, ES1887 and ES1879, address the separate needs of the three PC market segments (PC Motherboard, PC Add-in card and PC Notebook). The ES1869 and ES1879 comply with MICROSOFT PC 97 logo requirements, offering high fidelity audio, full duplex stereo, and support the emerging requirement for telegaming (games over modem).

These extensions of ESS Technology, Inc.'s AudioDrive family have many common features, including a single chip solution, 16 bit CD-quality, full duplex stereo sound, PC audio and games support in Sound Blaster® and Sound Blaster Pro® modes, high quality audio with ESS Technology, Inc.'s ESFM™ music synthesis and hardware volume control. These products support a broadside ISA bus interface, advanced power management modes, software addressable selections for Plug and Play (PnP), and feature glueless interfaces to various devices, including a MIDI synthesizer, DSP processor and external wavetable music synthesizer.

DESKTOP PC MOTHERBOARD AND PC ADD-IN CARD
The ES1869 applies to all three PC segments, but primarily addresses desktop PC motherboards and PC add-in cards. For the desktop PC motherboard, the ES1869 integrates 3D Spatialization, Enhanced Telegaming Architecture, and a new high fidelity analog front end. The 3D Spatializer audio produces a rich 3D soundstage from two stereo speakers, generating accurate placement of sounds with soundstage localization information.

For add-on card applications, the ES1869 provides support for PnP and an audio/telephony device interface. The PnP support includes up to seven internal logical devices and three external devices. The ES1869 interface to a fax/modem subsystem includes a synchronous DSP serial port to connect directly to a modem DSP and full duplex direct connect for speakerphone. The ES1869 runs in industry standard 100-pin PQFP and TQFP packages. Samples are scheduled to be available in November 1996, with volume production shipments in the first quarter of 1997.

The ES1887 is designed specifically for desktop motherboards, integrating an I2S interface to support the Zoomed Video Port specification for video and audio input to notebook PCs. The device includes the ESS Technology, Inc. Enhanced Telegaming Architecture which enables multiple-stream mixed audio playback of Wave, MIDI and FM synthesized audio, simultaneous with full-duplex voice over data (DSVD), all mixed and transmitted concurrently. The ES1887 also integrates a new 7 output/6 input Mixer Architecture with flexible data paths for playback and record. Supplied in a 100-pin PQFP package, the ES1887 is available now in volume production.

PC NOTEBOOK
The ES1879 has an architecture suited for PC notebook application and integrates 3D Spatialization, Enhanced Telegaming Architecture and a new high fidelity analog front end. The I2S interface supports Zoomed Video Port for video and audio input to PC notebooks. Extensive power management and a 6-wire interface to the company's current ES978 Expansion Audio Mixer product provide an integrated Notebook and Docking Station solution.

The ES1879 and ES978 constitute a two-chip set supporting multiple peripheral devices for Notebook and Docking Station connections. Also, this chip set supports "hot docking", eliminating the need to power off when docking the notebook. The ES1879's interface to a fax/modem subsystem includes a synchronous DSP serial port to connect directly a modem DSP and a full duplex channel for speakerphone. The ES1879 package is a slim-line 100 pin TQFP ideally suited to the PC notebook. Samples are scheduled to be available in January 1997, with volume production quantities shortly thereafter.

The matters discussed in this news release include certain forward looking statements that involve risks and uncertainties, including the timely availability and acceptance of new products, the impact of competitive products and pricing, the management of growth, and the other risks detailed from time to time in the SEC reports of ESS Technology, Inc., including the report on Form 10-Q for the quarter ended June 30, 1996. Actual results could differ materially from those projected in the forward looking statements. "
ESS website, 2nd October 1996



You can set the onboard jumpers to disable the onboard amplifier and you will get pretty decent output from this card. Suitable for 99% of DOS games.

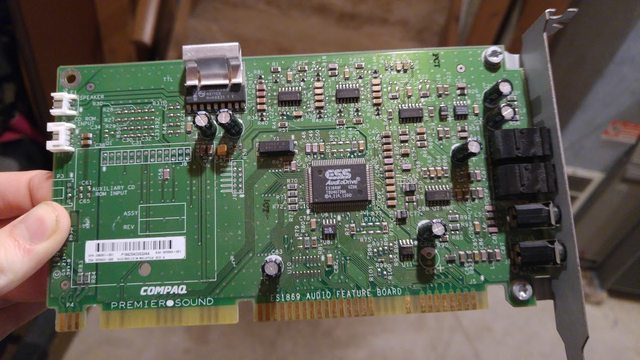

If your ES1869 is embedded on your motherboard (rather than being on a sound card) and you are not getting music in your games, try disabling the audio in your BIOS and re-run ESSCFG to configure the card.

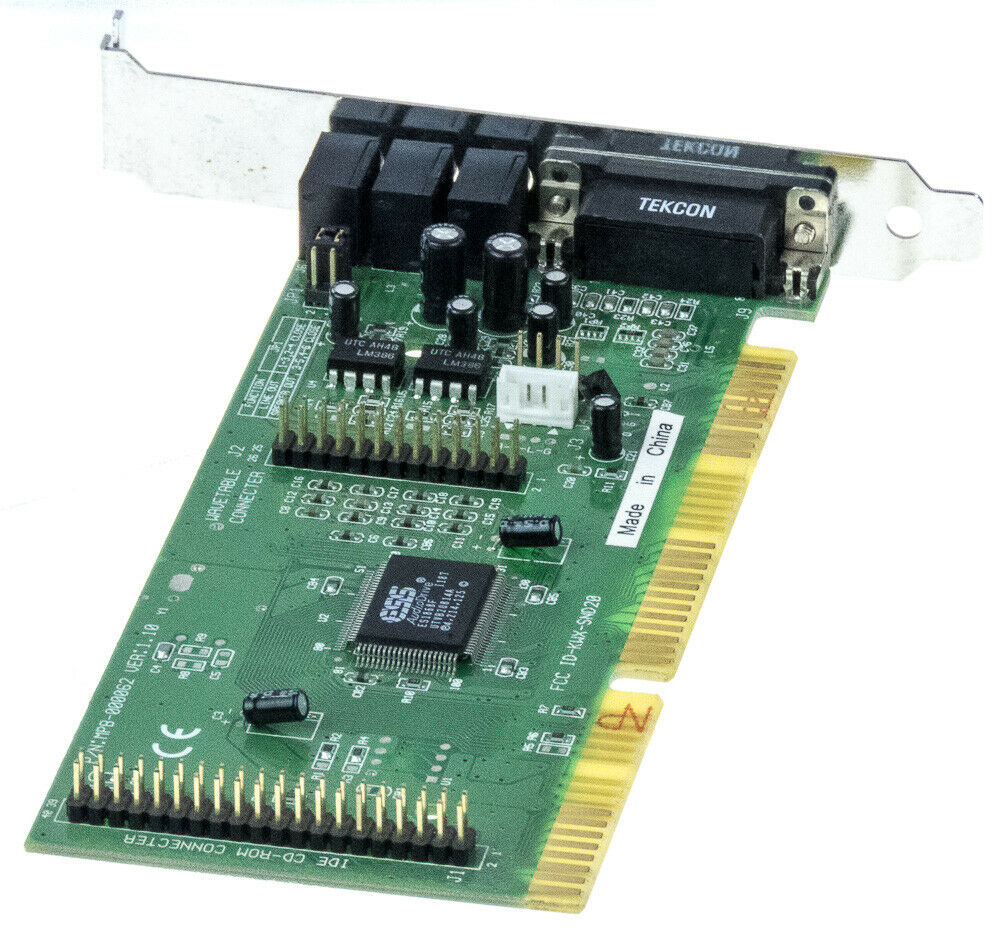

The card was also sold to OEMs such as:

Drivers: DOS, Windows 3.1

Datasheet

ES1878 AudioDrive

Introduced: ?
Interface: 16-bit ISA
Chipset: ES1878

PnP ISA sound card that uses the ESS ES1878S audio chip.

Windows 3.1



ES1879 AudioDrive

Introduced: October 1996
Interface: 16-bit ISA
Chipset: ES1879

Designed to be an embedded audio single-chip solution for Notebook computers. It supports ESS's ESFM OPL-3 compatible synthesis as well as Sound Blaster, Sound Blaster Pro and Windows Sound System.

It comes with an onboard ES938 3D effects processor from Spatializer, and allows connectivity to an ES689 or ES69x wavetable.

See the press release for this chipset in the ES1869 section.

Datasheet

ES1887 AudioDrive

Introduced: October 1996
Interface: 16-bit ISA
Chipset: ES1887

The ES1887 is pin-compatible with and a superset of the ES1888 AudioDrive® chip, adding improved configurability for Windows Plug and Play. The ES1887 is PC games compatible in SB and SB Pro modes and is compatible with Microsoft Windows Sound System. The ES1887 includes support for full-duplex operation, with simultaneous stereo record and playback using two DMA channels.

See the press release for this chipset in the ES1869 section.

ES1888 AudioDrive

Introduced: March 1995
Interface: 16-bit ISA
Chipset: ES1888

The ES1888 integrates digital logic and a microcontroller with audio CODEC and other analog functions onto one chip, and includes ESFM™ synthesis. The ES1888 is PC games compatible in SB and SB Pro modes and is compatible with Microsoft Windows Sound System. The ES1888 includes hardware volume control, 64 step volume control and dual game/joystick port for game support. The ES1888 also includes support for full-duplex operation, for simultaneous stereo record and playback using two DMA channels.

"ESS TECHNOLOGY, INC. INTRODUCES FIRST INTEGRATED AUDIO CHIP WITH ON-CHIP MUSIC SYNTHESIS AND NATIVE SIGNAL PROCESSING SUPPORT

Fremont, CA (March 20, 1995) -- ESS Technology, Inc. introduced today the ES1888, the first integrated 16-bit stereo audio chip with on-chip music synthesis and Native Signal Processing support. The ES1888 supports PC audio and games in Sound Blaster™ and Sound Blaster™ Pro modes, and gains high-quality audio with ESS Technology, Inc.'s ESFM™ music synthesis.

Using the ES1888, system designers can implement sound card audio on a board design smaller than 1.5" x 2.0", adding audio capability to Multimedia PCs or notebook PCs; and designers gain support of Intel's Native Signal Processing (NSP) Native Audio with the ES1888 and its Native Audio MiniDevice software driver. The ES1888 provides all required circuitry for adding 16-bit stereo audio and 20-voice music synthesis to multimedia PCs, including 72-operator ESFM music synthesis. The ES1888 provides 16-bit stereo record and playback at sample rates of up to 44.1 KHz with CD-quality sound. The ES1888 has two independent analog mixers: a 7-channel playback mixer and 4-channel record mixer, with three stereo inputs for LINE-IN, CD-ROM, TV, plus one mono input for microphone.

Three stereo DACs support simultaneously three digital audio data streams: game, music synthesis, and host system playback. As specified in NSP, the ES1888 supports full duplex operation for simultaneous record and playback using two DMA channels, enabling full-duplex communications in applications including video teleconferencing and echo cancellation.

The ES1888 provides on-chip hardware compatibility for Sound Blaster™ games and DOS-based applications, maintaining compatibility with DOS software. The ES1888 and its associated NSP Native Audio driver enables Windows to schedule multiple applications to use the ES1888 hardware audio resource under NSP.

"The NSP architecture enables the full utilization of ESS Technology, Inc. Technology's AudioDrive® family capabilities," stated Albert Mak, Vice President of Marketing at ESS Technology, Inc. Technology, "including the ES1888's full-duplex simultaneous record and playback, and 72-operator ESFM music synthesis. The NSP structure provides a balanced architecture between Pentium processor software applications and audio accelerator functions."

"Within the NSP Native Audio architecture, Windows gains access to the resources of the ES1888 by controlling user application software requests," explained Bill Windsor, ESS Technology, Inc. Strategic Marketing Manager. "Signal processing software requests called MiniFilters are sent through the NSP Native Audio driver to the ES1888 MiniDevice driver, which is a Windows Ring0 32-bit Virtual Device Driver. This architecture under Windows provides real-time protected-mode control necessary for PC audio."

"ESS Technology, Inc. is demonstrating its NSP Native Audio driver this week at WinHEC'95," Windsor continued. "ESS Technology, Inc.'s NSP Driver for the full-duplex ES1888 AudioDrive will ship beta-qualified software at the end of April 1995." The ES1888 has special on-chip support for games functionality and control interfaces, including dual joystick interfaces and hardware volume control. The ES1888's three serial ports enable glueless interfaces to devices including a MIDI synthesizer, DSP processor, and external wavetable music synthesizer.

The ES1888 includes a broadside ISA bus interface, advanced power management modes for notebook PCs, and two software address selection modes for motherboard Plug and Play configuration. The ES1888 device driver and ES1888 Native Audio driver both support ESS Technology, Inc.'s high-quality ESFM music synthesis. "ESFM music synthesis is backward-compatible with FM synthesis, and provides superior sound quality with 72-operator ESFM music synthesis versus 36-operators for FM synthesis," said Albert Mak. "ESFM improves the depth and timbre of instrument sounds and enables chorusing of instruments. PC users with the ES1888 will immediately notice the difference in the depth and richness of computer music."

The ES1888 chip comes with device driver software that supports PC stereo audio under Microsoft® Windows™, Windows 95™, Windows for Workgroups™, Windows NT™, and Windows Sound System™ 2.0, in addition to IBM® OS/2 Warp™ operating systems. NSP Native Audio and the ES1888 MiniDevice Driver running under NSP are compatible with Windows™ 3.1 and Windows 95™. The ES1888 comes in a 100-pin PQFP and is sampling now.

The ES1888 is an extension of ESS Technology, Inc.'s AudioDrive family of audio chips, which includes the ES488, ES1488, ES688, ES1688, and ES968. List pricing for the ES1888 at OEM quantities is $28.00. ESS Technology, Inc., designs, develops and markets mixed-signal integrated circuits for speech, sound, and multimedia solutions for applications that range from PCs and instrumentation to consumer products. The company was founded in 1984, and holds 14 worldwide patents in time-domain audio compression and reconstruction technology. Since 1989, ESS Technology, Inc. has shipped over 70 million audio ICs."
ESS website, 20th March 1995



ES1898 AudioDrive

Chipset: ?
16-bit ISA

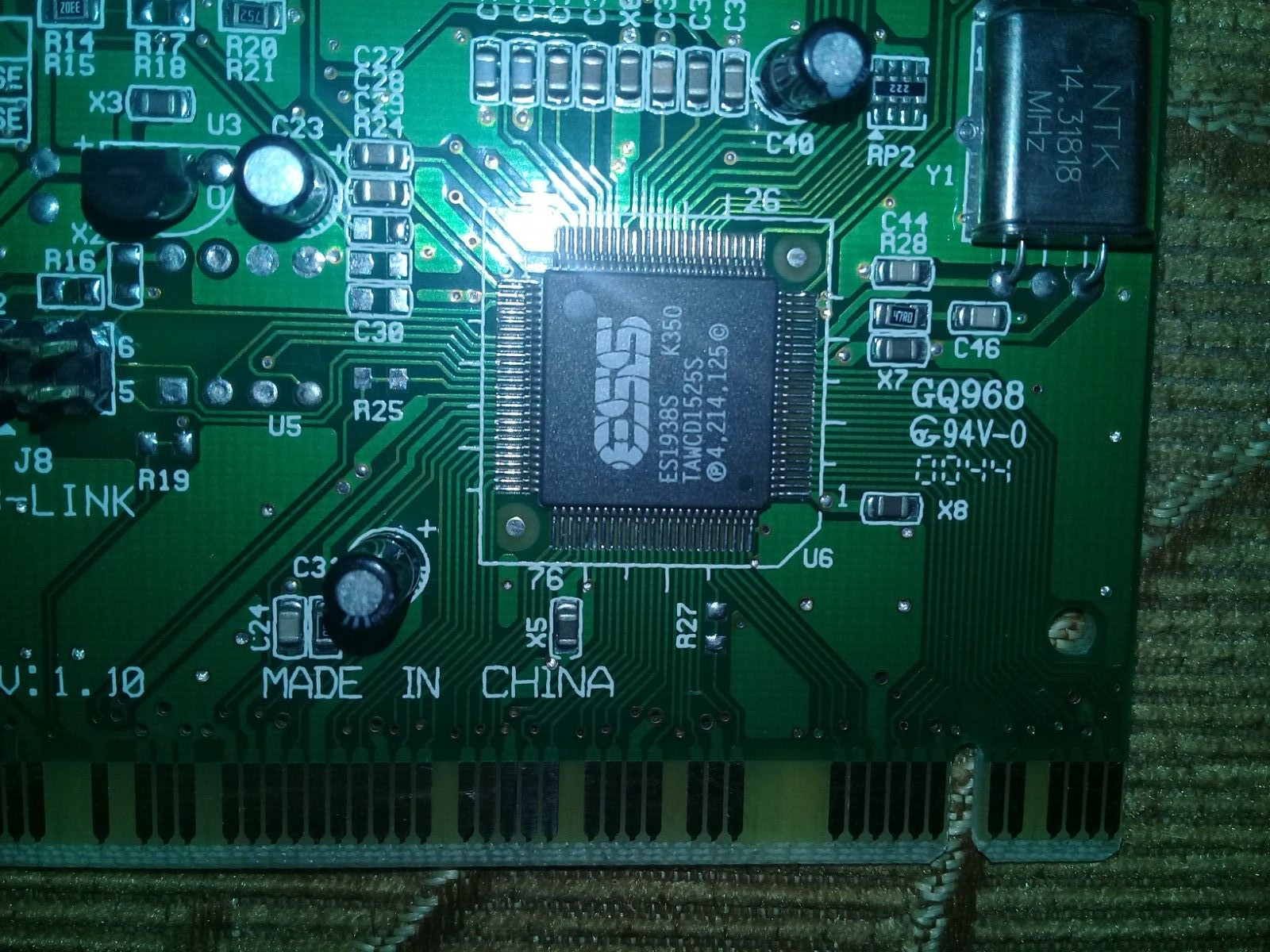

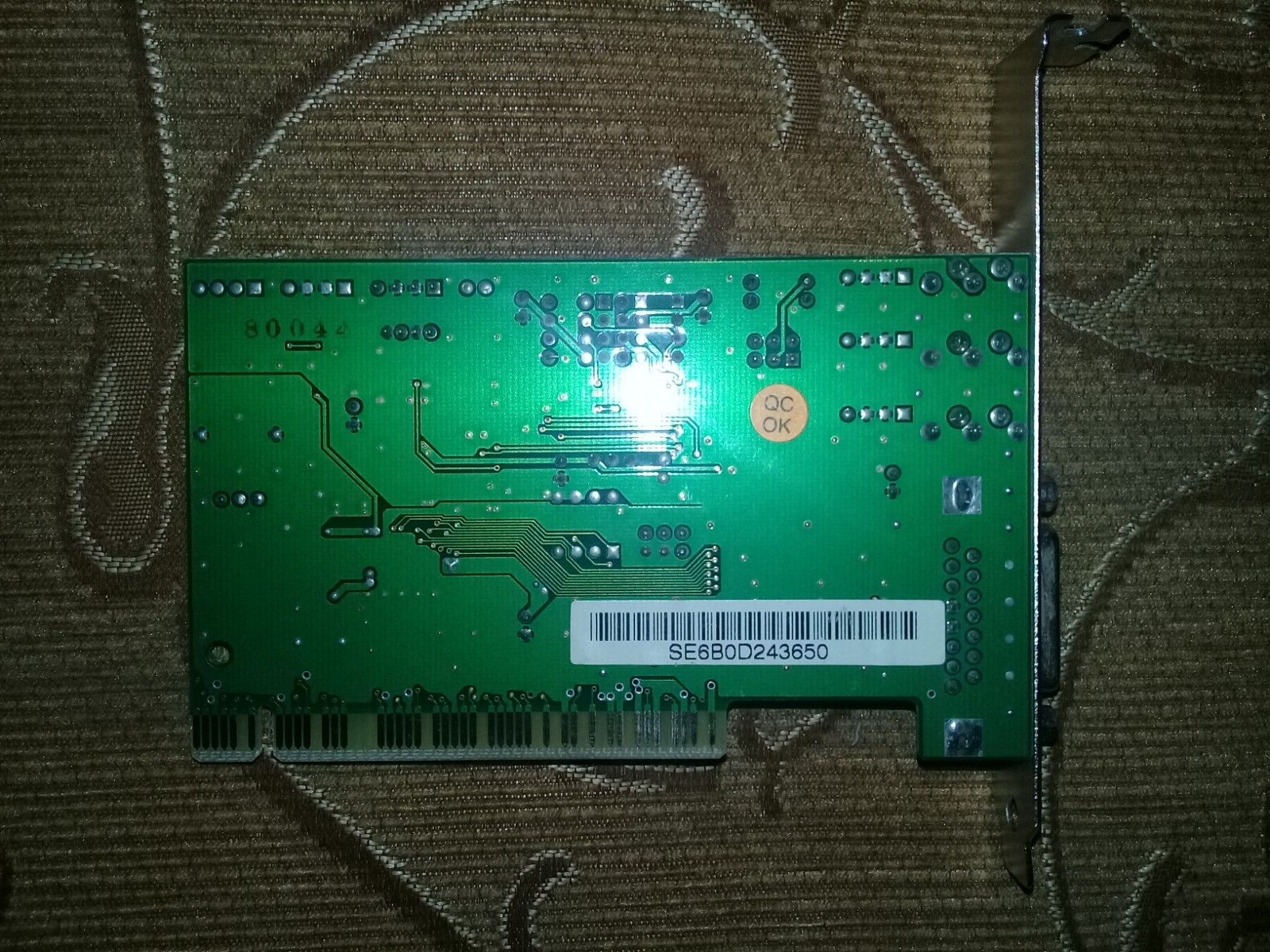

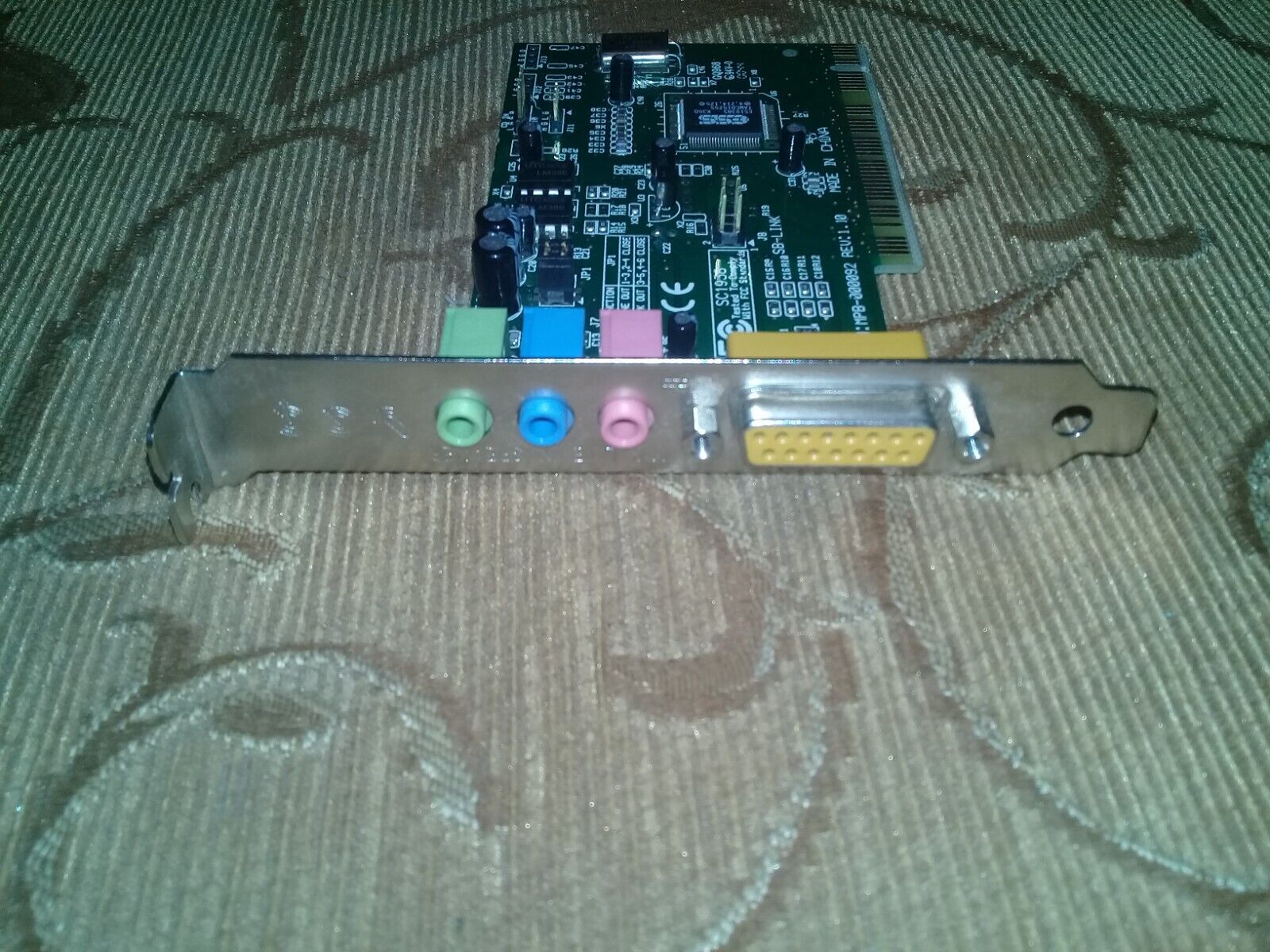

ES1938 Solo 1

Introduced: 1997?
Interface: PCI
Chipset: ES1938

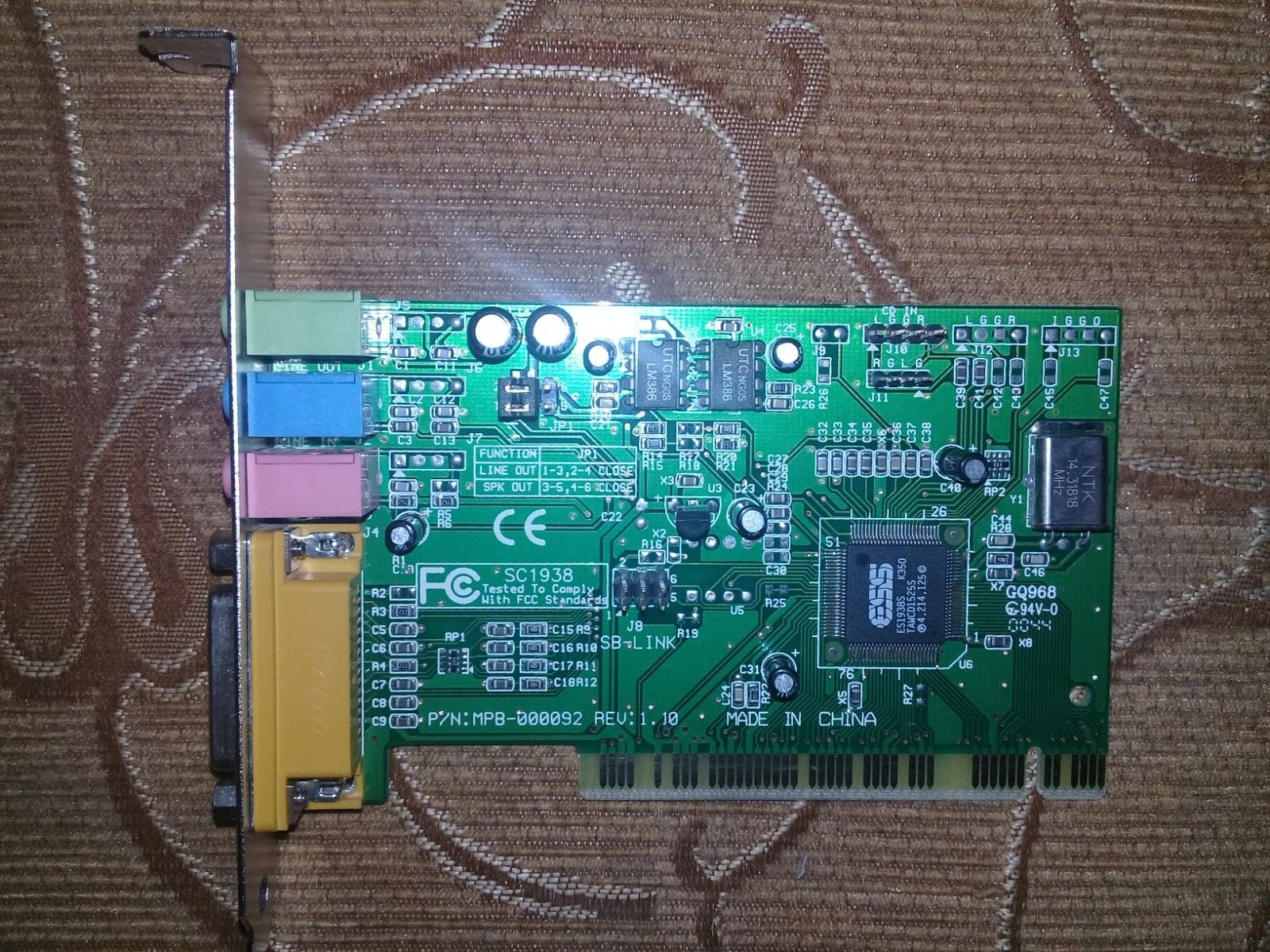

The ES1938 "Solo-1" was a PCI sound chipset made by ESS - the first in their PCI AudioDrive range.

The ES1938 incorporates a microcontroller, ESFM™ music synthesizer, 3-D stereo effects processor, 16-bit stereo wave ADC and DAC, 16-bit stereo music DAC, MPU-401 UART mode serial port, dual game port, hardware master volume control, a serial port interface to external wavetable music synthesizer, DMA control logic with FIFO, and PCI bus interface logic. There are three stereo inputs (typically line-in, CD audio, and auxiliary line) and a mono microphone input.

The ES1938 supported software-based wavetable audio and was DOS game compatible. The card featured an SB-Link header for connectivity to a supporting motherboard for DOS backward compatibility.

The chipset's signal-to-noise (SnR) ratio is poor. In playback [digital-to-analogue] tests conducted by PCAVTech, it got a Signal-to-Noise ratio of -64 dB.

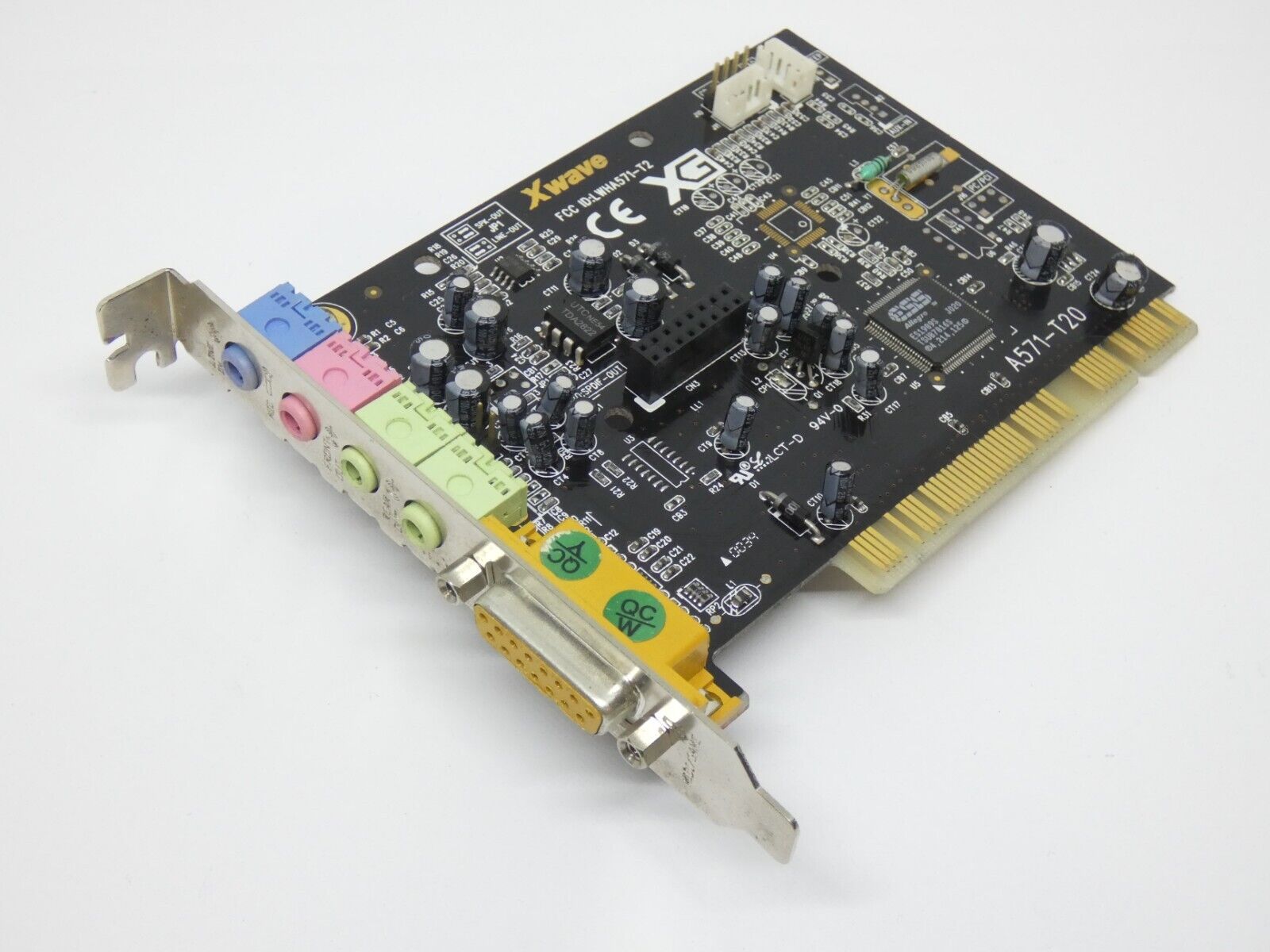

The Solo-1 can be found on these cards:

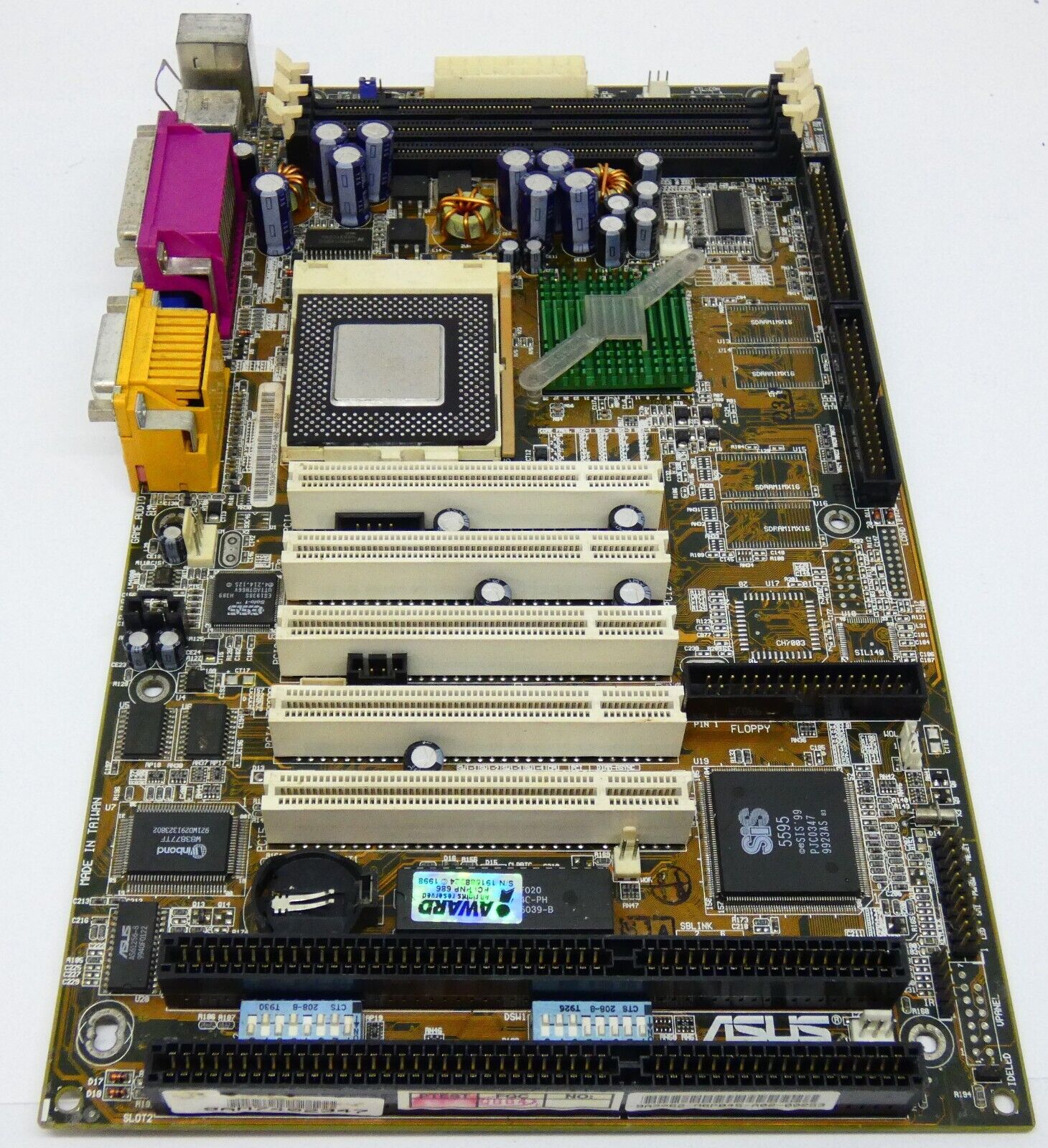

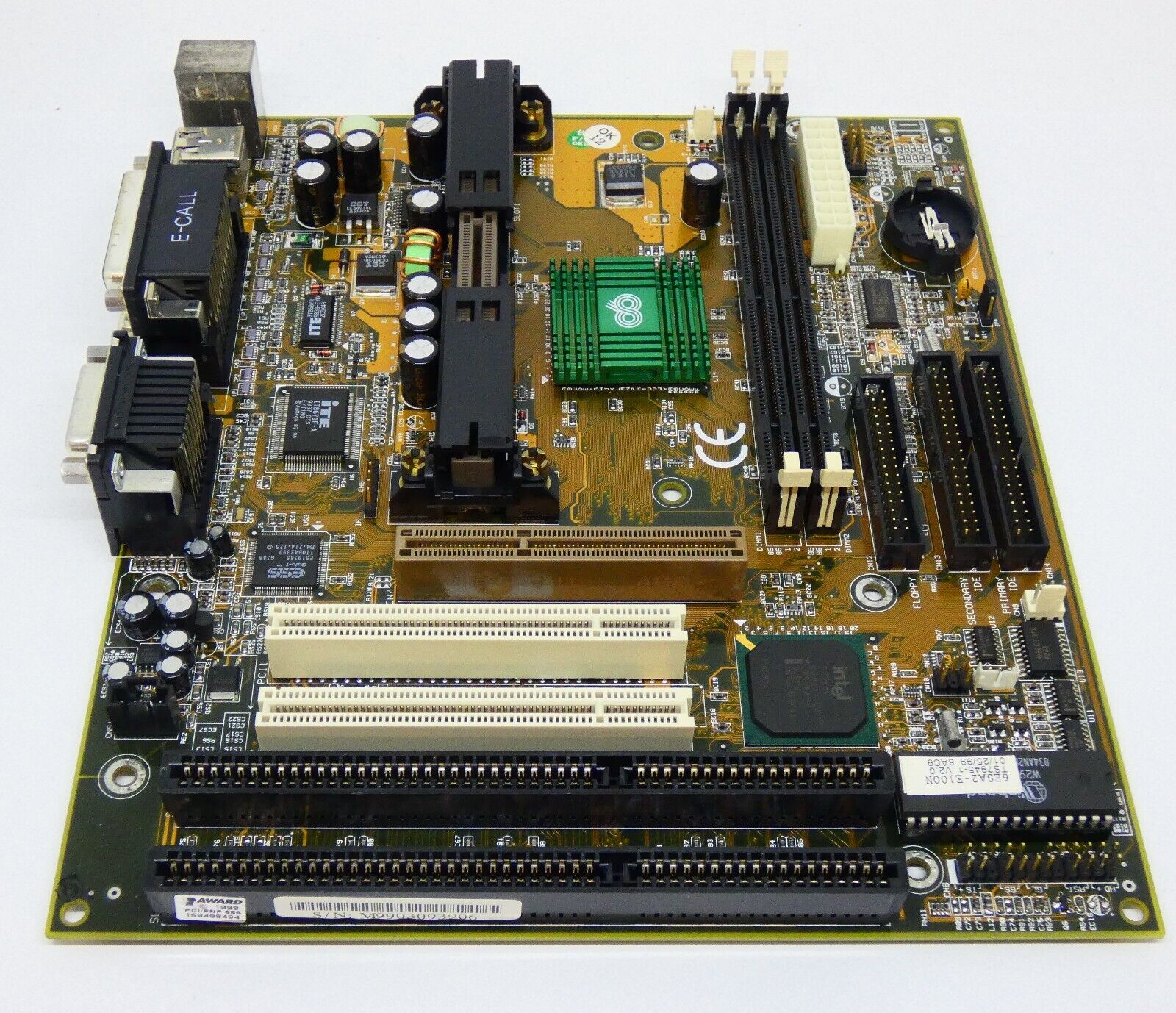

It was also embedded on these motherboards:

More Images

ES1946 Solo 1E

Introduced: 1997?
Interface: PCI
Chipset: ES1946 Solo 1E

The ES1946 was also part of ESS' new PCI AudioDrive range.

The ES1946 PCI AudioDrive solution is a superset to the ES1938. It implements a single chip PCI audio solution providing  high-quality audio processing with a dynamic range over 80db to comply with Microsoft® PC99 specifications and meet WHQL (Windows Hardware Quality Labs) audio requirements. The ES1946 is optimized to operate with 3.3 volt digital supply for notebook platforms.

The ES1946 incorporates a microcontroller, ESFM™ music synthesizer, 3-D stereo effects processor, 16-bit stereo wave ADC and DAC, 16-bit stereo music DAC, MPU-401 UART mode serial port, dual game port, hardware master volume control, a serial port interface to external wavetable music synthesizer, DMA control logic with FIFO, and PCI bus interface logic. There are three stereo inputs (typically line-in, CD audio, and auxiliary line) and a mono microphone input.

The ES1938 and ES1946 integrates ESS' field-proven hardware design for DOS game and compatibility with hardware FM synthesis (ESFM) and three methods for legacy audio control interface: PC/PCI, Distributed DMA, and Transparent DMA.

The ES1946 was used on IBM Thinkpad laptops around 1997. It provided compatibility for Sound Blaster, Sound Blaster Pro, and Windows Sound System.

Datasheet

More Images

ESS1948 Maestro-1, ES1968 Maestro-2, ES1978 Maestro-2E

Introduced: 2000
Interface: PCI
Chipset: ES1948F Maestro, ES1968F Maestro-2, ES1978 Maestro-2E

A PCI audio accelerator chipset with a 64-channel pipeline hardware Wave Processor and a proprietary audio signal processor. The Maestro PCI audio accelerators provided a high-performance PCI interface, while retaining compatibility to existing DOS games.

Summary of Maestro PCI Audio Accelerators
Product Name Maestro-1 Maestro-2 Maestro-2EM Maestro-2E
DOS Game Compatible Yes Yes Yes Yes
32-bit PCI Bus Master System Interface PCI 2.1 Compliant Yes Yes Yes Yes
Package 208-pin PQFP 100-pin TQFP 144-pin TQFP 100-pin TQFP
3D Speaker Spreader Yes Yes Yes Yes
Wavetable Hardware Hardware Hardware Hardware
Modem No No Yes No
PCI-to-PCI Bridge Yes No No No
Notebook Optimized No Yes Yes Yes
Effect Synthesis Yes Yes Yes Yes
Positional 3D Q3D Sensaura Sensaura Sensaura
Dual Game Port Yes Yes Yes Yes
DirectSound Acceleration Yes Yes Yes Yes
S/P DIF Output No No Yes Yes
AC97 Digital Docking No No Yes Yes
ES978 Docking No No Yes Yes

All of the Maestro PCI audio accelerators comply with the Microsoft PC99 specification, AC'97 CODEC Interface, and PCI 2.1 Bus Specification.

Their architecture consists of a 64-channel pipeline hardware Wave Processor and a proprietary audio signal processor. Together they can simultaneously handle multiple audio streams of different data types, high quality MIDI synthesis, and voice compression and decompression. The synthesizer also performs advanced audio effects such as reverb, chorus, flange, echo and 3-D spatial enhancement.

The Maestro PCI audio accelerators provide a high-performance PCI interface, while retaining compatibility to existing DOS games with no restriction on system chipsets and no need for sideband signals. The PCI bus is required for PC audio hardware to smoothly reproduce high-fidelity audio from Internet, MIDI, wave, and conferencing sources. The PCI bus achieves high-performance functionality by enabling the transfer of multiple, independent data streams. PCI improves data transfer efficiency by at least 20 times over the ISA bus. This is crucial for low-latency audio applications, such as Internet interactive audio.

The MaestroPCI audio solutions accelerate Microsoft's DirectSound™ applications by digitally mixing more than 32 PCM streams of any frequency down to a single output stream of 48 kHz. This acceleration frees the CPU to perform other tasks.

The Maestro PCI audio accelerators support DOS game compatibility for both PC motherboard and add-in card solutions through three hardware implementations: PC/PCI, Distributed DMA (DDMA), and Transparent DMA (TDMA). While PC/PCI and DDMA are industry-standard protocols for legacy support, ESS' TDMA technology implements DOS game compatibility over the standard PCI 2.1 bus without the additional sideband signals.

The Maestro-2E PCI audio accelerator has two 20-bit AC'97 CODEC interfaces that can be enabled for notebook docking implementations. The secondary AC'97 CODEC interface can be programmed to handle multiple serial CODEC interfaces which, together with the primary AC'97 CODEC, can provide full-featured AC3 speaker outputs.

The Maestro PCI audio accelerators operate at 3.3 volts and have several special features for notebook operation. They are compliant with the Advanced Power Management (APM) 1.2, Advanced Configuration and Power Interface (ACPI) 1.0, PCI Power Management Interface (PPMI) 1.0, and Intel's Mobile Power Guideline. They have multiple power-saving modes (D0, D1, D2 and D3) for power-efficiency when the audio system is both active and idle.

The Maestro-1's signal-to-noise (SnR) ratio is very poor. In playback [digital-to-analogue] tests conducted by PCAVTech, it got a Signal-to-Noise ratio of -62 dB. The Maestro-2's was much better at -74 dB which is considered good.

The Maestro-2 can be found on these cards:

  • Diamond Sonic Impact S70

The ES1978MS was also used in a combination audio+modem device - in these uses, the "Maestro-2EM" is a combination of the ES1978 Maestro-2MS audio chipset and ES56CVM-PI modem in a single package

Maestro-1 datasheet
Maestro-2 datasheet

More Images

ES1980 Maestro-3 / ES1983

Introduced: 2000
Chipset: ESS ES1980, ES1980S or ES1983S
Interface: PCI

The Maestro-3i.COMM chipset was used in the Dell Latitude CPx J650GT notebook computer.

The ES1980 was also used in a combination audio+modem device - in these uses, the "Maestro-3i.COMM" is a combination of the ES1980 Maestro-3 audio chipset and ES56CVM-PI modem in a single package. Audio features include Sensaura™ HRTF positional 3D audio, multi-stream DirectSound and DirectSound 3D acceleration, and hardware SRC and digital mixing. In addition, it has the ESS SuperLink(TM) modem technology (first announced in May 2000), which ranked highest in connect speed and throughput when tested against other V.90 modem suppliers.

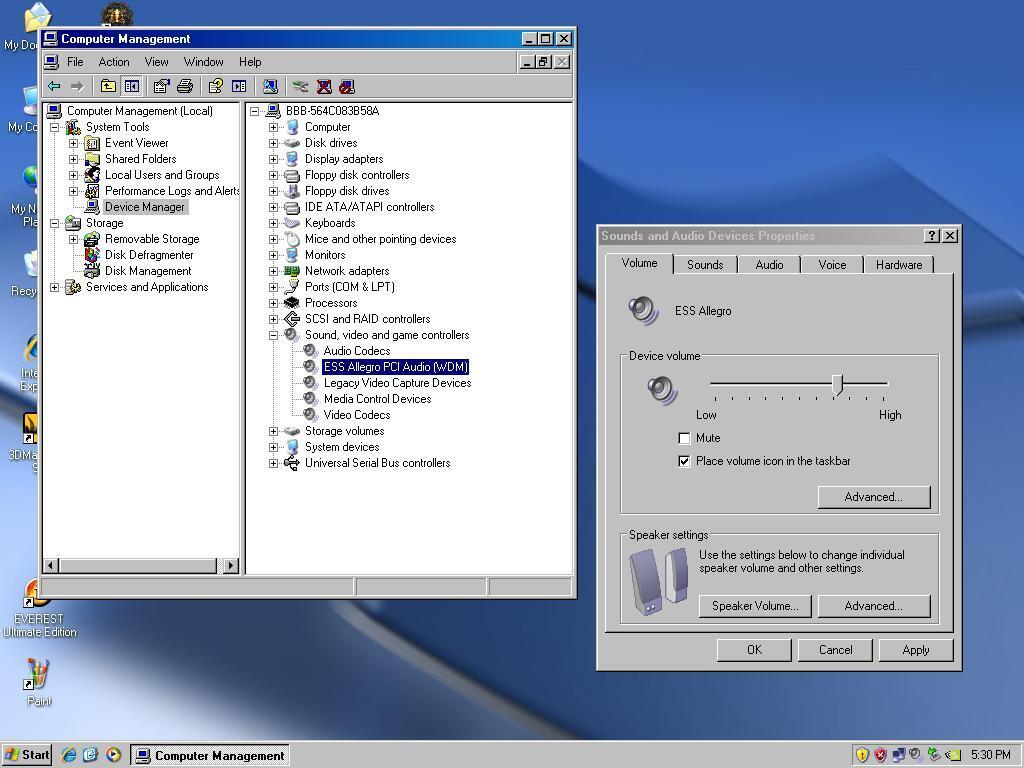

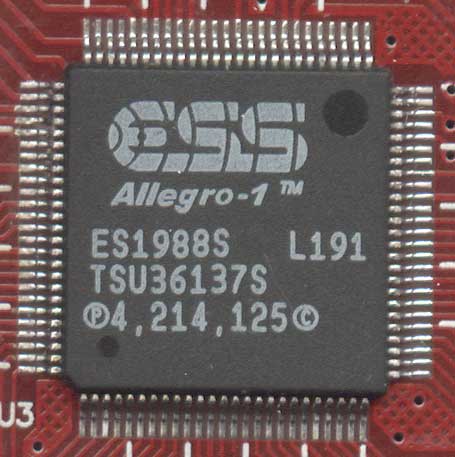

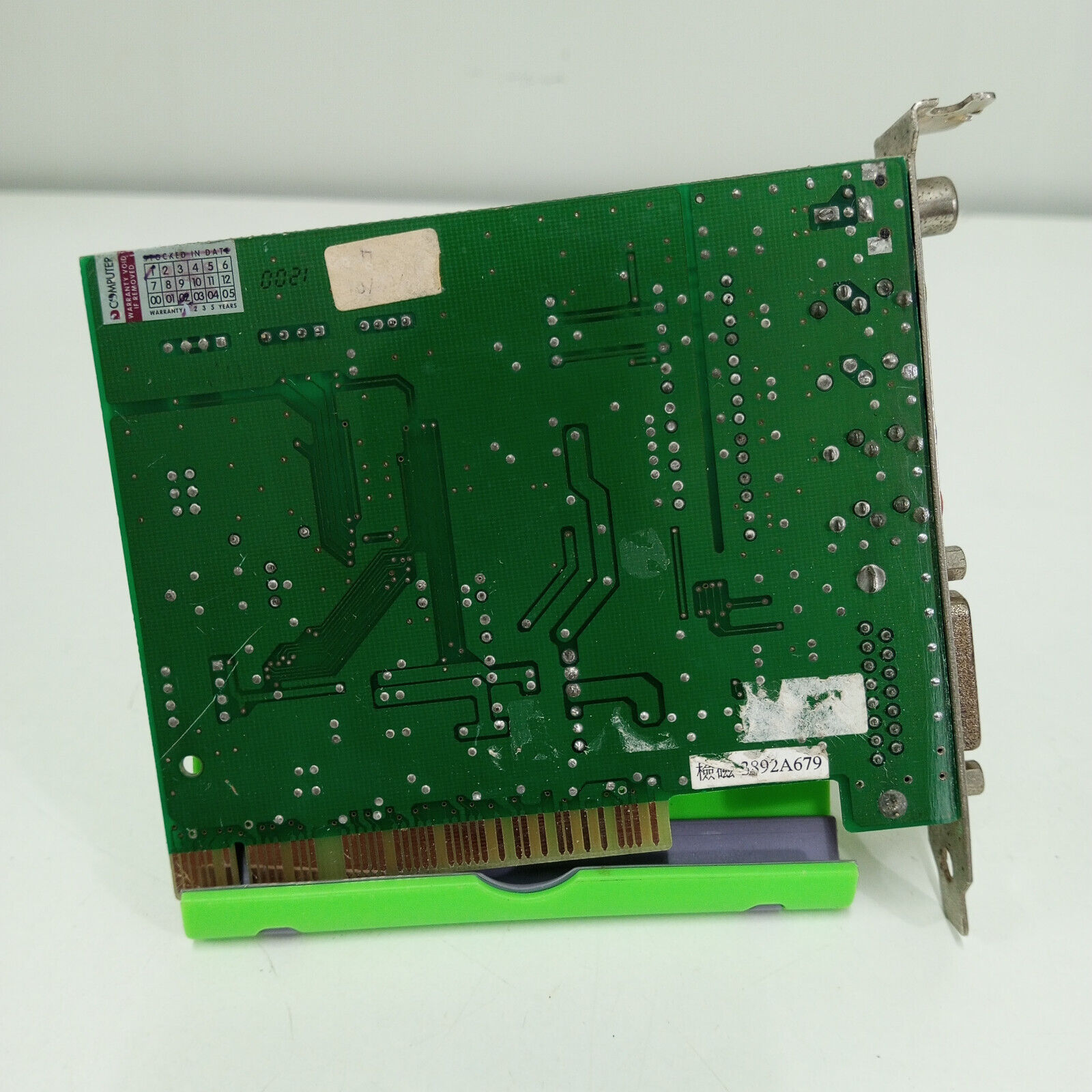

ES1988 Allegro

Chipset: ESS ES1988S
Interface: PCI

The ES1988 Allegro was also used on a combination PCI audio/modem device, comprising the ES1988 Allegro for audio and an ES56CVM-PI modem.

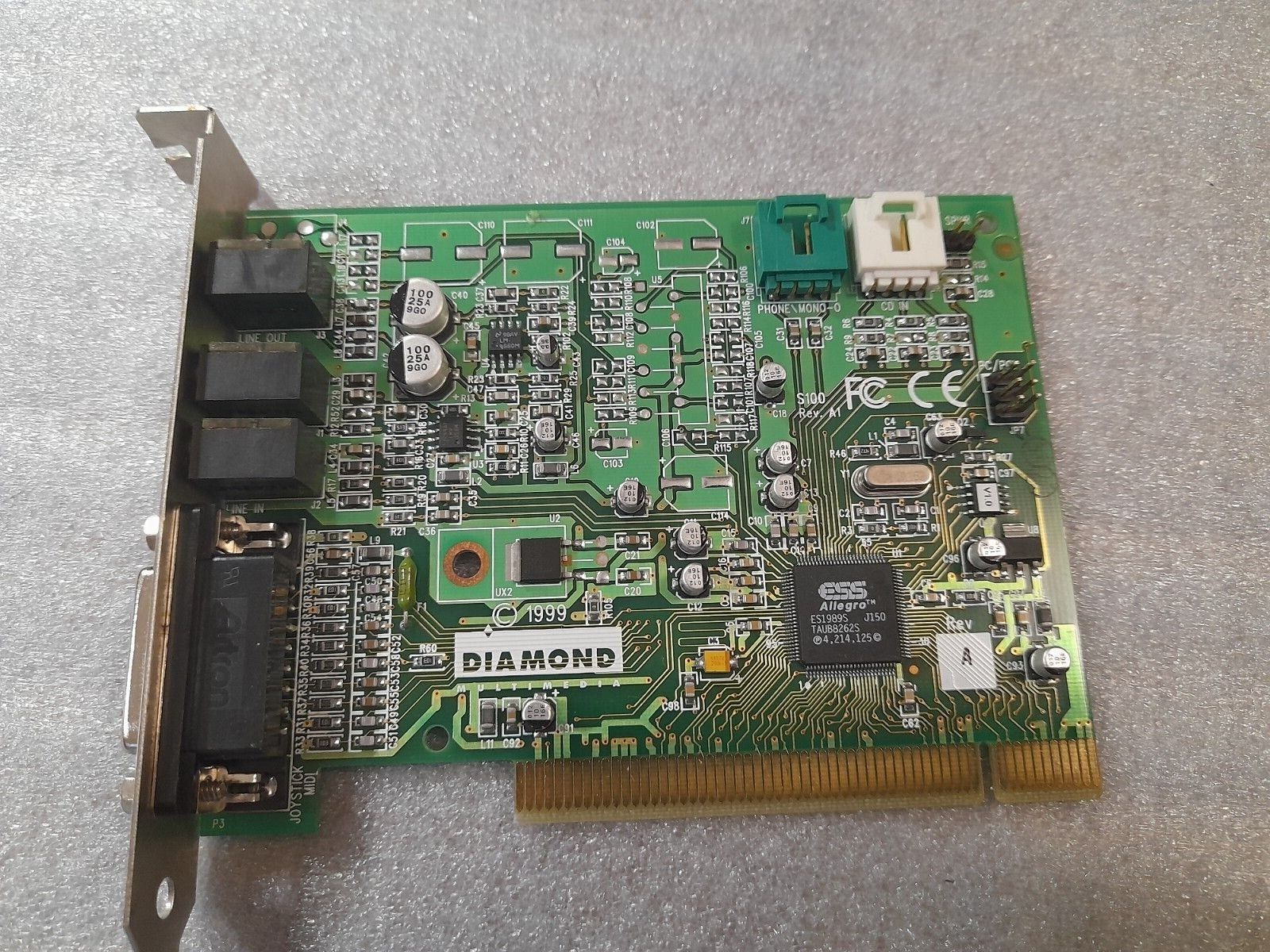

ES1989 Allegro/ES1930

Chipset: ESS ES1989S
Interface: PCI

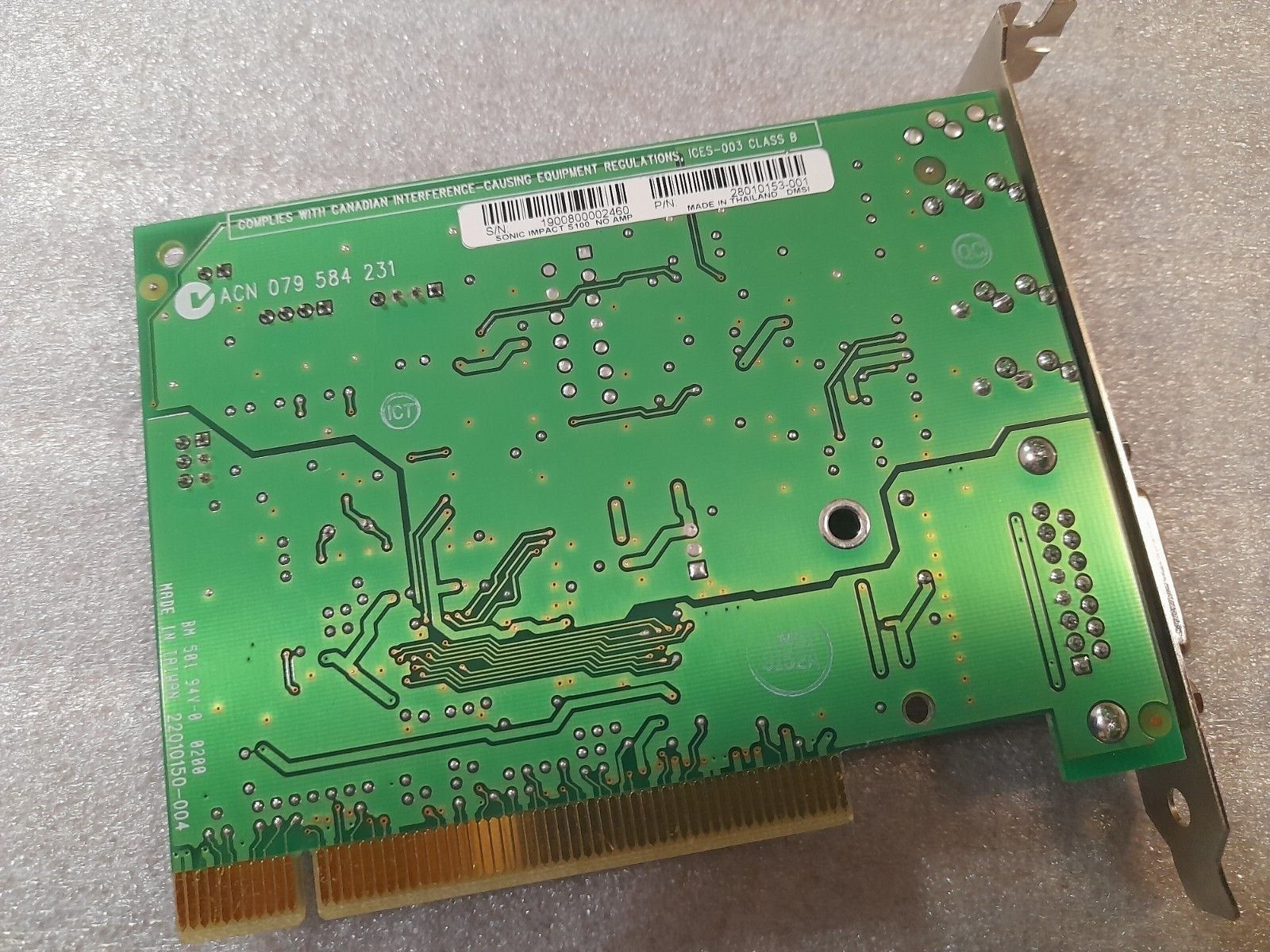

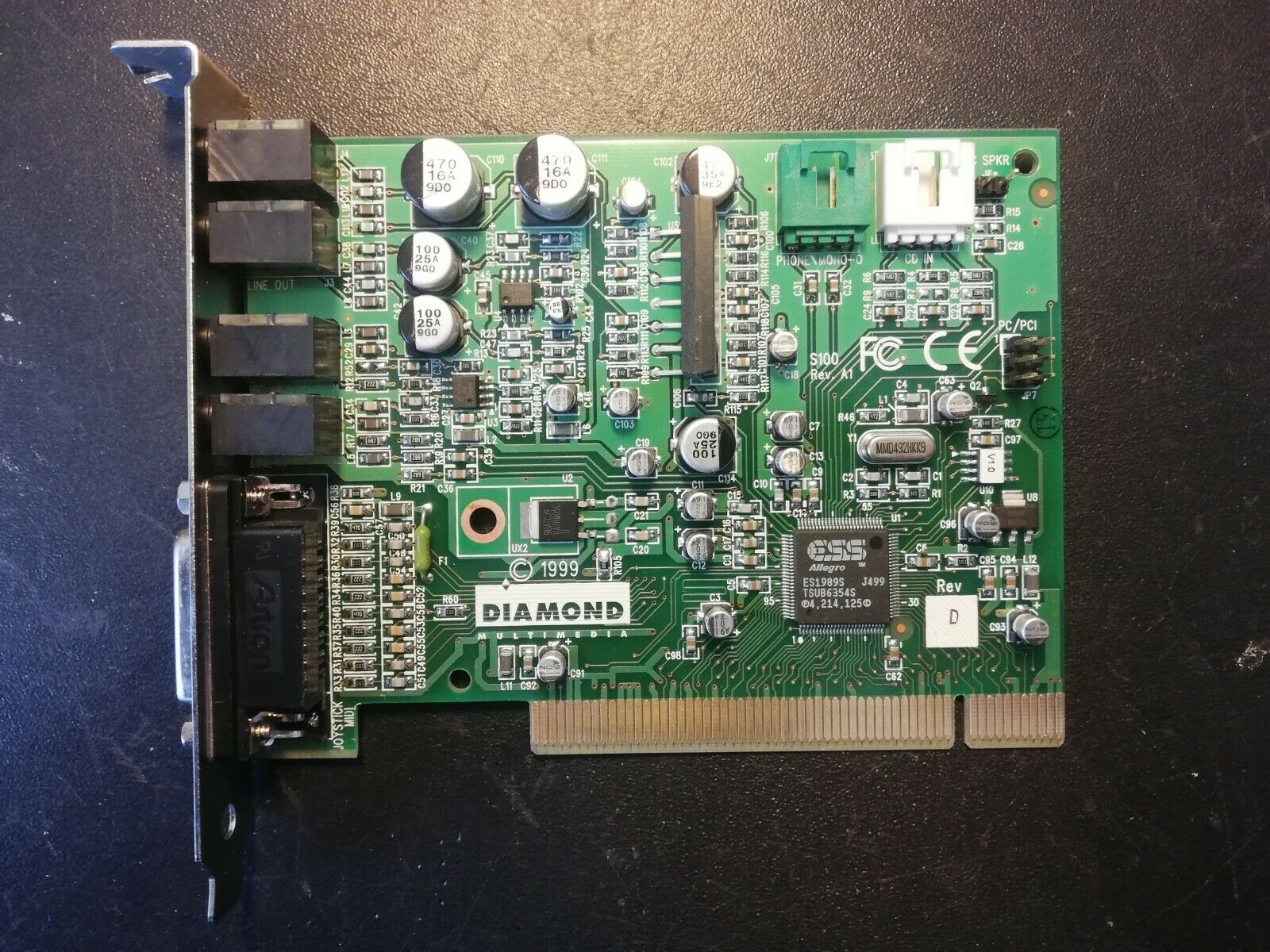

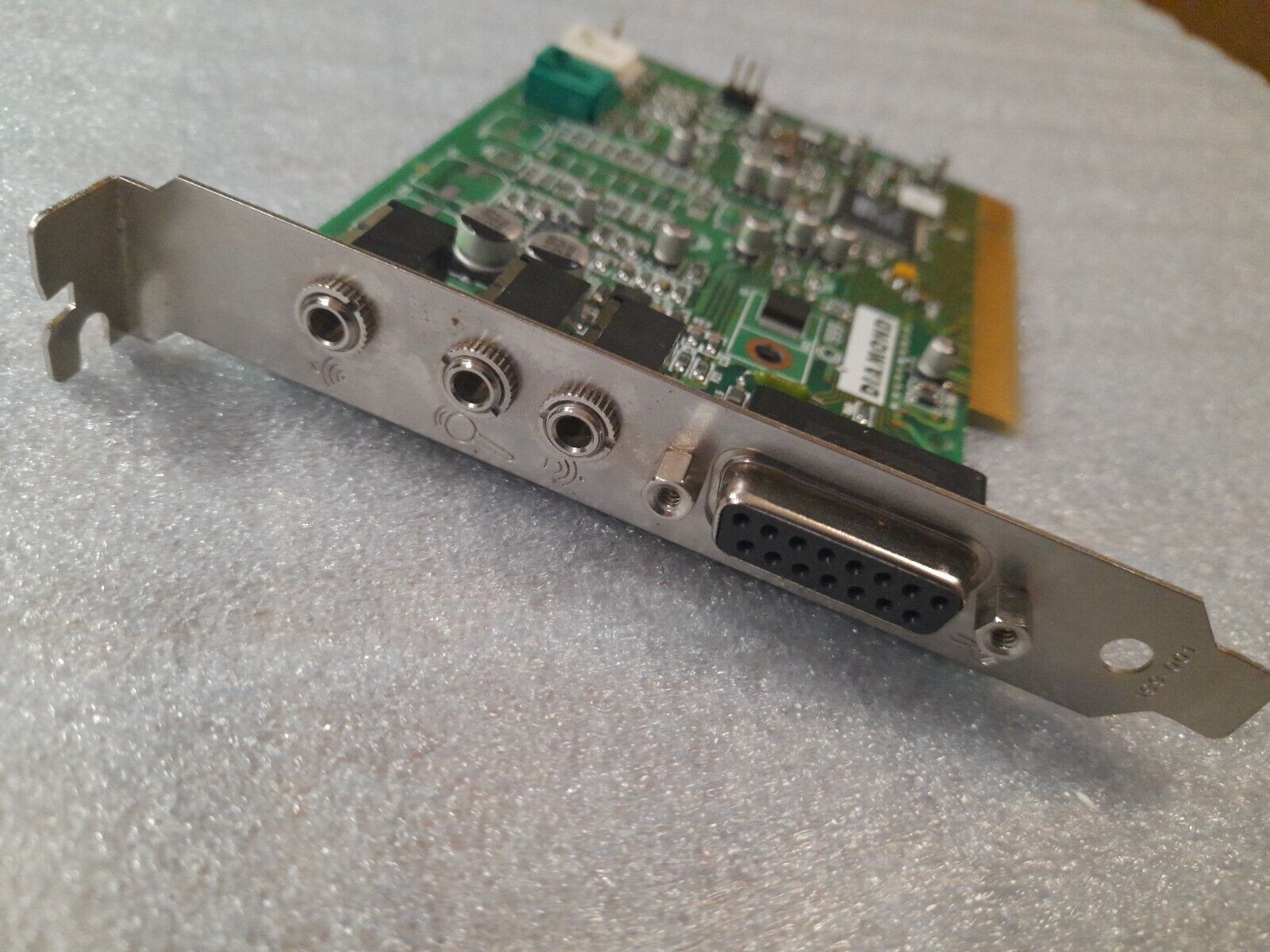

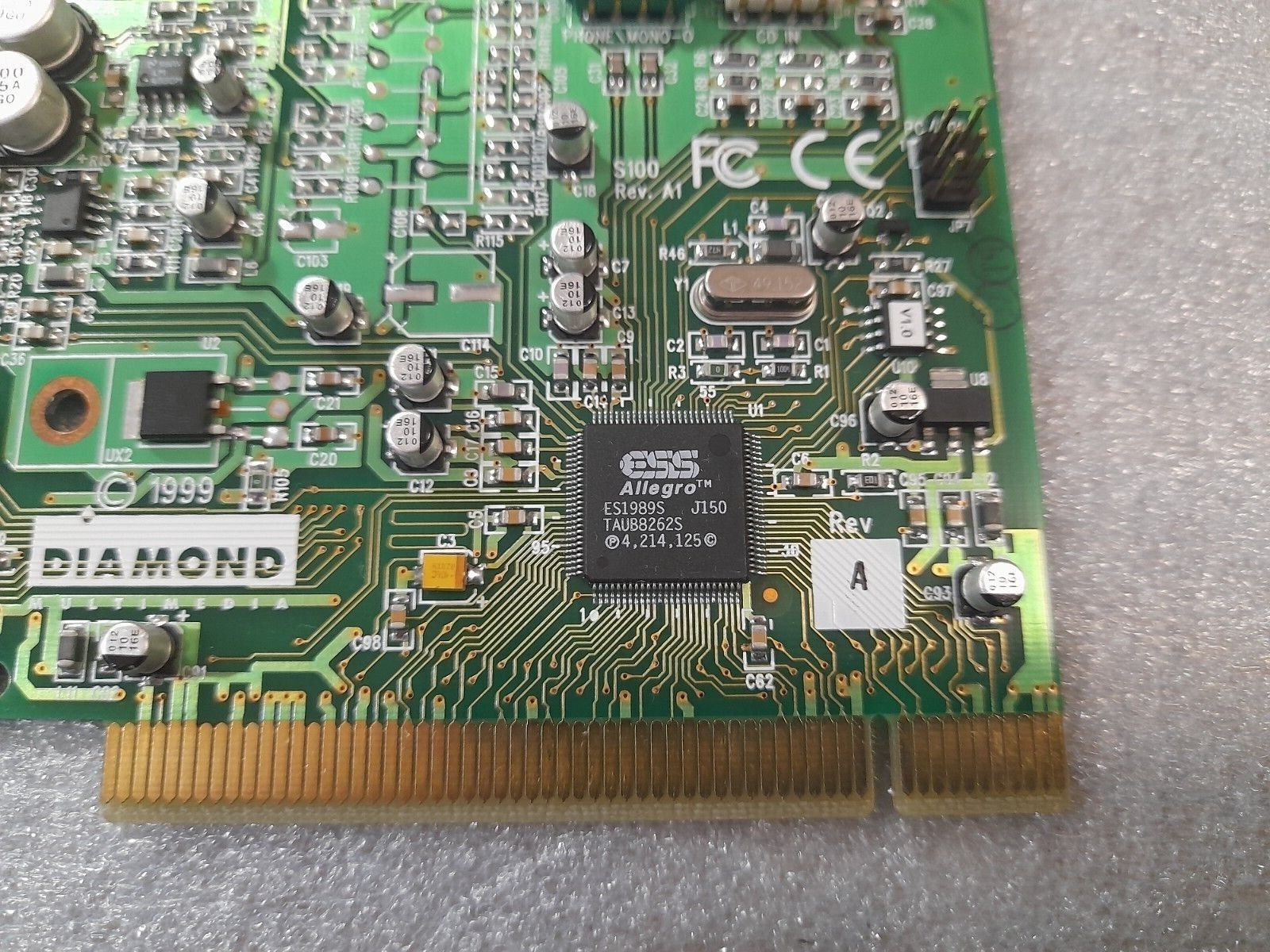

Some cards with Allegro chips also get an SB-LINK header. The Diamond Sonic Impact S100 is one.

This chip was used on the following cards:

More Images

ES1970 / Canyon3D

Introduced: 2000
Chipset: ESS ES1970S

The ES1970S Canyon3D audio processor contained ESS' proprietary Sensaura(TM) MultiDrive 3D positional audio, adding vertical positioning effects. It supported up to 6 speakers. Canyon3D rivalled Sound Blaster Live! and Aureal Vortex2 3D audio technologies.

From ESS' website in October 2000:

A PC Gamer's Dream:

Canyon3D produces unmatched vertical positioning effects independently from all four speakers to exponentially enhance your PC gaming experience. Canyon3D(TM) is the world's first true positional 3D PCI audio accelerator designed for four speaker environments. The Canyon3D processor incorporates Sensaura's(TM) patented MultiDrive(TM) technology which produces vertical positioning effects. Other four speaker processors use simple 2D panning techniques to simulate a 3D world. Canyon3D allows you to identify an enemy's location based on sound effects, instead of relying on visual contact. Canyon3D technology provides the vertical audio cues needed for total game immersion. Canyon3D is the only accelerator to support four or two speaker environments with optional sub-woofers, as well as the popular 5.1 speaker configuration. Whether two, four or six speaker environments, Canyon3D creates the most realistic audio on the market. Experience "Adventures in Sound" from your classic DOS applications and from today's high-impact games with the Canyon3D audio accelerator. Proprietary hardware solutions from ESS enable Canyon3D to free the CPU's power for game processing and to provide complete legacy game support. Other audio processors rely on power from the CPU for software legacy support and 3D sound production. Canyon3D accelerates more than 32 DirectSound3D streams, while other processors handle only eight. Compatible with old and new game technology, Canyon3D allows you to experience the ultimate gaming environment without sacrificing support for your favorite DOS games.

Canyon3D: Sound Features
  • Four speaker audio capabilities put you in the middle of the action
  • World's first true positional 3D PCI audio accelerator
  • Adds vertical positioning with Sensaura's patented MultiDrive technology
  • Engulfing 4.0, 4.1 and 5.1 multi-speaker support
  • Master balance/fade controls
  • Individual Wave, MIDI and Analog controls
  • Hardware solutions produce industry-leading real-mode DOS support
  • AC '97 2.0 architecture
  • Ultimate Dolby Digital and PCM support with S/PDIF digital output interface
  • Microsoft DirectInput compatible joystick interface
  • MPU-401 MIDI interface
  • PCI 2.1 compatible interface
  • Microsoft DirectSound and DirectMusic compatibility
Experience extreme audio with Canyon3D - sound so real it's amazing!



Canyon3D(TM) Technology Backgrounder


INTRODUCTION
Today's PC is changing faster than ever before. As arcade-style gaming and theatre-quality surround sound become accessible to home users, unprecedented and potentially crippling demands can be placed on systems. ESS's new Canyon3D audio accelerator was designed to efficiently merge audio technologies into Microsoft® Windows® environments. With dual audio processing engines and flexible-streaming architecture, Canyon3D technology from ESS has raised the bar for 3D audio processors. Consumers have to consider many options when selecting an audio solution for a home PC. The audio solution must support today's demanding 3D games as well as home theatre environments. When supported with proper audio components, today's games produce a completely immersive 3D experience. The ability to play the latest DVD releases is also making PCs an integral part of home entertainment systems. From its unique support of true 3D gaming with Sensaura™'s MultiDrive™ technology to the unmatched speaker options for complete home theatre sound, Canyon3D is the ultimate in home PC audio.
IMMERSIVE 3D GAMING
The release of DirectSound3D (DS3D) 5.0, Microsoft's industry standard API, introduced the PC gaming community to 3D positional audio. DS3D solutions are characterized by computationally-intensive algorithms that use Head Related Transfer Functions (HRTF) to encode natural hearing "cues" into the stereo audio stream. High-quality HRTF can produce sound sources in all three dimensions, which greatly enhances the enjoyment of 3D games. The first DS3D offerings were either too expensive or, in some cases, actually slower than the Microsoft's software emulation it replaced. With the introduction of the Maestro2 audio accelerator, ESS provided the first production-quality HRTF accelerator. The Maestro2 continues to set the standard for mainstream accelerators with unsurpassed acceleration and broad API support. CPU and graphic sub-systems enable more realistic visual environments. Game developers now offer audio that completes the 3D environment. By using environmental effects, like Microsoft DirectSound3D's Environmental Audio extensions (EAX), 3D games now have the capability to provide a completely immersive experience. Like graphics, not all systems support this leading-edge technology. In order to take advantage of new audio capabilities, an audio sub-system requires three things:  acceleration of at least 32 DirectSound3D streams, quality HRTF 3D audio on at least four speakers and technology accessible through standard APIs.
Acceleration of at least 32 DirectSound3D streams: Many first generation "accelerators" require more than half the processing power of a PentiumII-400 to process 32 DS3D streams. Add environmental effects, and the load on the CPU greatly exceeds the 10% budgeted by most game developers. This can have disastrous effects, such as dropping audio sounds, jumpy graphics and game malfunctions. The Canyon3D processor accelerates more than 32 DS3D streams. This unsurpassed acceleration once again puts ESS's 3D audio accelerators at the front of the pack. Quality HRTF 3D audio on four speakers: Game enthusiasts are quickly adopting four speakers as the solution of choice. With its inherent reinforcement of subtle 3D audio cues and reinforcement of transaural crosstalk cancellation, four speakers provide the most immersive 3D audio experience. Unfortunately, a quality four-speaker environment cannot be achieved by simply adding an additional pair of speakers. In some cases, additional speakers actually diminish the 3D effects end-users desire. To date, three approaches exist to achieve a quality four-speaker gaming environment.
  1. Volume intensity panning. This Volume intensity processing does not fully utilize HRTF based algorithms. The result is little or no ability to change the elevation of sounds. Additionally, due to the Haas effect, without perfect speaker placement and balance, sounds quickly localize to a single speaker , creating jumpy transitions as an audio source moves from one location to another. While volume intensity panning does not burden the host CPU, it does create negative effects.
  2. Front positioning only. Front positioning solutions have HRTF-based 3D audio on the front pair of speaker and simple panning on the rear set. While sounds are in front of the listener, positional data does not suffer greatly. However, once objects begin to move to the side and then to the rear, the intensity panning problems mentioned above begin to affect the user's experience. While this solution does allow 1ST-generation processors to support 2ND-generation features, it sacrifices performance.
  3. Canyon3D. With its use of Sensaura's MultiDrive™ algorithm, Canyon3D is the only solution to play back true HRTF-processed data to ALL four speakers. Canyon3D uses this patented technology to produce vertical audio information, for any location in 3D space. Complete four-speaker processing diminishes the Haas effect, reducing the importance of speaker placement and balance control.
Technology accessible through multiple standards: ESS is committed to producing state-of-the-art audio technology. This means developing to industry standards. Canyon3D supports ALL popular programming interfaces: MS DOS® (Sound Blaster Pro), Windows® 95, Windows 98, Windows NT 4.0, Microsoft DirectSound®, DirectSound3D and derivatives including EAX. Unlike other devices that compromise silicon architecture for support of proprietary effects, Canyon3D enhances EXISTING games through standard APIs. An example is Sensaura's MacroFX™ which produces near-field proximity effects that offer a chilling new realism for 3D sound. By using existing information available in DS3D games, sounds closer than one meter, such as a whisper in the ear or an ultra-close "fly-by" from a bullet, are more realistic than ever before.
The following chart summarizes 2nd-generation 3D audio devices:



 Vortex 2 SB Live! Canyon3D
DS3D streams 16 32 >32
Speaker configurations 2,4 2,4 2,4,4.1,5.1*
3D algorithm Front only HRTF Simple panning Sensaura MultiDrive
Additional Effects Proprietary API Proprietary API Standard APIs
4.1 refers to four speakers plus a sub-woofer
5.1 refers to four speakers plus a sub-woofer and center channel
HOME THEATRE SOUND
The ability of a PC to play back DVD-encoded material is quickly becoming a necessary feature. DVD audio content is encoded in many ways. The most demanding format is AC3, a highly-compressed stream that carries the data required to drive a complete 5.1 channel (4 speakers plus a center channel and sub-woofer) speaker system. AC3 decoding and 5.1 channel reproduction are necessary to support Dolby Digital movies, THX, low frequency effects (LFE) and other sophisticated high-end home theatre features. Canyon3D's flexible internal architecture and processing power supports DVD playback in several ways, depending on the output configuration. The following chart summarizes output configurations and data playback.
Output device Effect
2 Speakers Simple playback of front PCM data, or down-mixes the five channels of data using Sensaura 3D algorithm to 2 speakers
4 Speakers Playback of PCM data on front and rear stereo pairs data. Center data mixed to front speakers.
4.1 Speakers Playback of positional PCM data on front and rear stereo pairs data. Center data mixed to front speakers. Canyon3D digitally synthesizes LFE data.
5.1 Speakers All five channels sent to the appropriate speaker: Front left/right, Surround (rear) left/right , and Center. Canyon3D digitally synthesizes LFE data.
S/PDIF AC3 stream sent to Dolby Digital receiver for decoding and playback via standard SP/DIF connection.
GLOSSARY
Interaural Cancellation - As a listener hears two speakers in the usual arrangement, each ear receives two signals. The right ear receives the intended direct sound from the right front speaker, plus the indirect signal from the left front speaker. Due to the difference in the distance from the source of the sound and the ear, the listener can identify the spatial location of the source, which can work against efforts to provide a virtual audio environment. Interaural cancellation works by minimizing the perception of indirect signals. In interaural cancellation, the audio signal is processed so that each channel has an interaural cancellation signal mixed with the main intended signal. The listener then receives pure right and left signals in the respective ears. With interaural cancellation, it is possible to produce a pseudo-binaural experience, much like wearing headphones, with little leakage or crosstalk between left and right channels. Interaural cancellation minimizes the user's ability to spatially locate the speakers, and can produce apparent sound sources outside the left speaker/right speaker/ listener triangle, up to 180 degrees (i.e. directly to the side of the listener's position). More sophisticated systems, such as HRTF, also cancel the effect of the listener's head transfer function on the sound to produce apparent sound sources from almost any point in space - above, below, behind, etc. Head Related Transfer Function (HRTF) - Algorithms that produce head related transfer functions produce audio through a filter that incorporates the effects of sounds reflecting off a listener's head, shoulders and outer ears. Input for HRTF-based 3D audio include the monaural sound source signal(s), the user position and orientation, and the position(s) of the sound source(s), while the output is projected in a multi-speaker environment. Haas Effect - The Haas (or "Precedence") effect[1], is the phenomenon that when presented with several similar pieces of audio information to process at slightly differing times, the brain uses the FIRST information to arrive from which to compute directional information, and then it attributes the subsequent, similar information packets with the same directional information. For example, if several loudspeakers were playing music at exactly the same loudness in a room, all the sound would appear to come from the nearest loudspeaker, and all the others would appear to be silent. The first signals to arrive are used to determine the spatial position of the sound source, and the subsequent signals simply make it sound louder. This effect is so strong that the intensity of the second signal could be up to 8 dB greater than the initial signal, and the brain would still use the first (but quieter) signal to decide from where the sound originated. This effect is known also as "law of the first wavefront", "auditory suppression effect", "first-arrival effect" and "threshold of extinction", and is used for the basis of sound reinforcement used in Public Address systems.
1. Historical Background of the Haas and/or Precedence Effect, ,M B Gardner, J. Acoust. Soc. Am., 43, (6), pp.1243-1248 (1968).

ES1992 Canyon3D-2 / ES1990

Introduced: 2001(?)
Chipset: ESS ES1990S or ES1992

I have no information on the Canyon 3D-2.
